HB-340
Koten
HB-340
Negotiate
One set
T/T, L/C At Sight.
30SETS/MONTH
By Strong Seaworthy Wooden Cases.
Within one month after receipt of the deposit.
China
5286
Availability: | |
---|---|
Quantity: | |

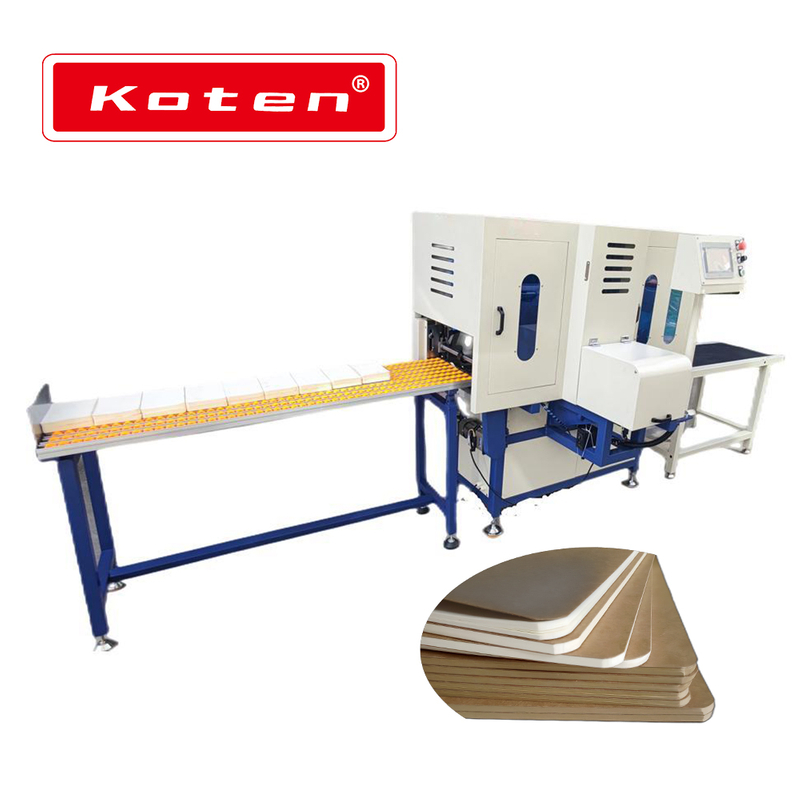

The machine can connect with three-knife cutting machine, it will just need receive the book from the receive belt of three-knife cutting machine, can save 3-4 workers than traditional, at the same time it can also save the space for half-product of book which are going to wait to cut.The machine use the double servo cylinder and PLC control, can cut the corner more accurate and more stable output.Touch screen, easy to adjust, easy to change the cutter.This machine use the special high-accuracy cutter, which use the technology of chromium steel for bottom cutter, it will not have the situation of bottom paper can not cut well.
Model | HB-340 |
Working Speed | 35time/min |
Max. Book Width | 340mm(Rounded Side)*270mm |
Min. Book Width | 120mm(Rounded Side)*120mm |
Max Cutting Height | 80mm |
Air Compressor | 2.5KW/6-8bar |
Power | 220V/2KW |
Dimension | (Host Machine)2100*1500*1700mm (Receiving Tape)500*1430mm |
Weight | 600kg |
No. | Description | Brand | Origin |
1 | Air Cylinder | AirTAC | Taiwan,China |
2 | Servo Motor | Leadshine | China |
3 | Slide Rail | HIWIN | Taiwan,China |
4 | Bearing | NSK | Japan |
5 | Inductor | Leuze | Germany |
6 | Switching Power Supply | Meanwell | Taiwan,China |
7 | Push Button Switch | Schneider | French |
8 | Leakage Switch | Chnt | China |
The machine can connect with three-knife cutting machine, it will just need receive the book from the receive belt of three-knife cutting machine, can save 3-4 workers than traditional, at the same time it can also save the space for half-product of book which are going to wait to cut.The machine use the double servo cylinder and PLC control, can cut the corner more accurate and more stable output.Touch screen, easy to adjust, easy to change the cutter.This machine use the special high-accuracy cutter, which use the technology of chromium steel for bottom cutter, it will not have the situation of bottom paper can not cut well.
Model | HB-340 |
Working Speed | 35time/min |
Max. Book Width | 340mm(Rounded Side)*270mm |
Min. Book Width | 120mm(Rounded Side)*120mm |
Max Cutting Height | 80mm |
Air Compressor | 2.5KW/6-8bar |
Power | 220V/2KW |
Dimension | (Host Machine)2100*1500*1700mm (Receiving Tape)500*1430mm |
Weight | 600kg |
No. | Description | Brand | Origin |
1 | Air Cylinder | AirTAC | Taiwan,China |
2 | Servo Motor | Leadshine | China |
3 | Slide Rail | HIWIN | Taiwan,China |
4 | Bearing | NSK | Japan |
5 | Inductor | Leuze | Germany |
6 | Switching Power Supply | Meanwell | Taiwan,China |
7 | Push Button Switch | Schneider | French |
8 | Leakage Switch | Chnt | China |
