FZ-240
KOTEN
FZ-240
Negotiate
1
T/T, L/C at sight
5sets/month
By strong seaworthy packaging
Within 30 days after get the deposit.
3589
| Quantity: | |
|---|---|
Automatic Packing Machine Card Packaging Machine

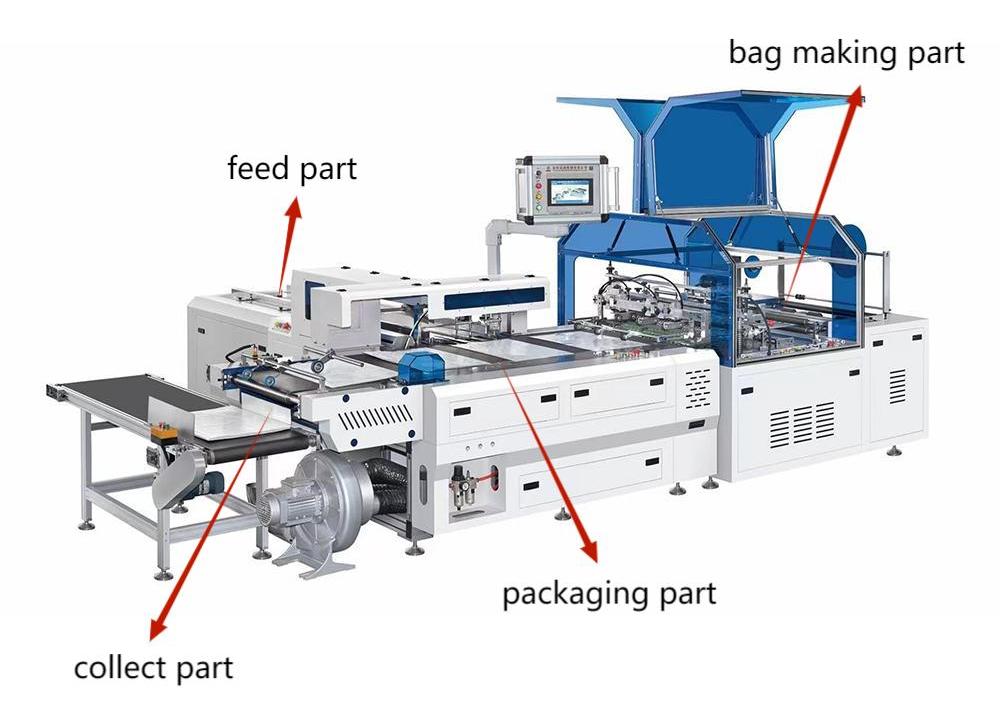

The machine is a dedicated device for fully automatic bag packing for product card, postcard, red packet, manual, honor certificate, comic book, document bag, warranty card, envelope, notebook, hangtag, insole and heterogenic product. It has functions of folding, bag making, counting, trimming, gilding, labeling, sticking adhensive label, bagging and hot sealing and cutting.
The whole action is of modern movement module control with PLC multiaxial servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.
1. Quantity fixing: With quantity counting function, according to the customer requirement, filling the fixed quantity inside the bag.

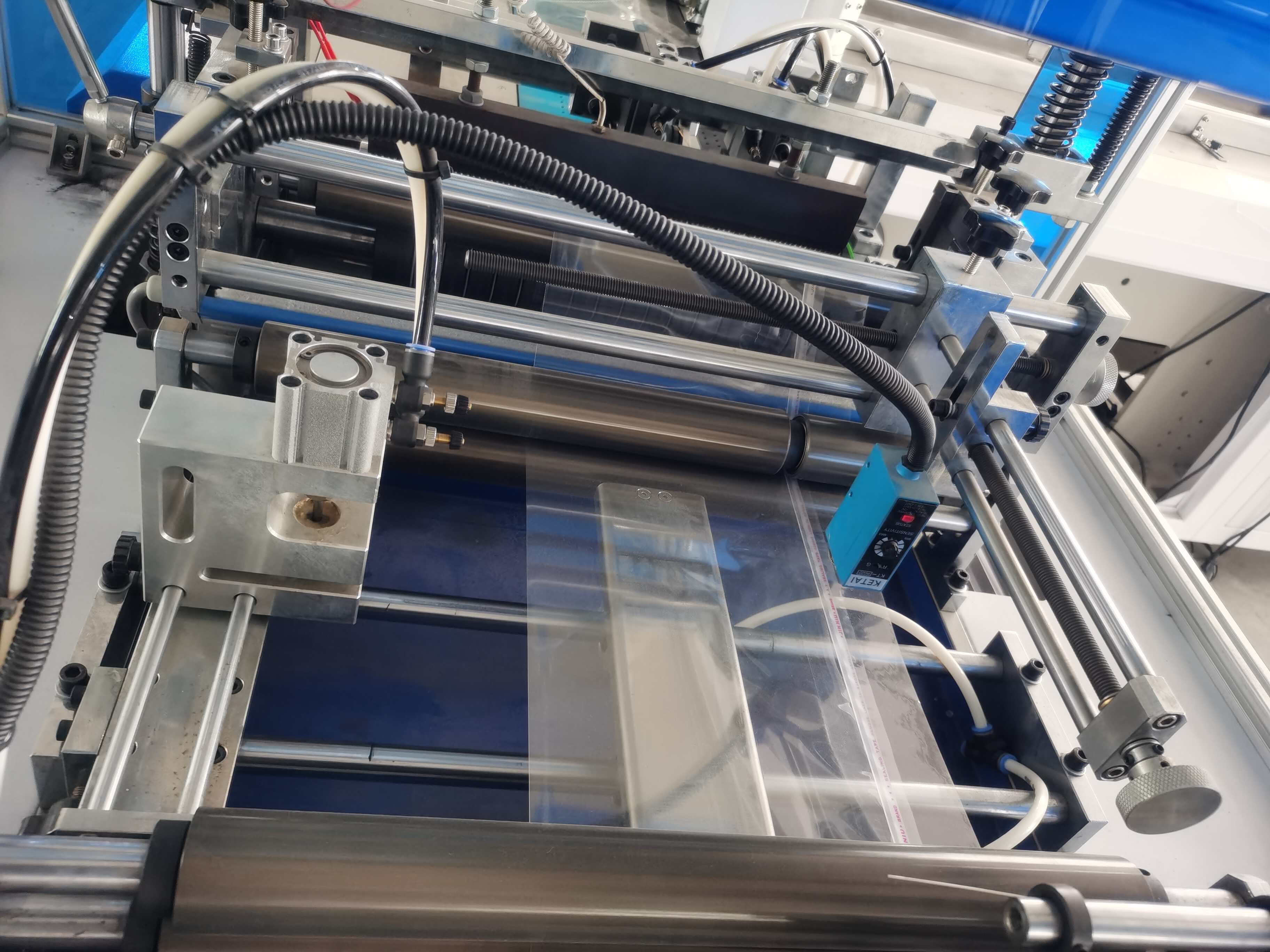

2. Bag making: With bag making machine, only feeding the plastic film, it can produce the bag directly according to the request, save the time and labor, and reduce the cost, increase the production’s efficiency, and create the benefit.
3. Bag filling: The machine is controlled by PLC and servo motor, all actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic, etc. , replacing the manual operation absolutely.
| Model | FZ-240 | FZ-310 | FZ-520 |
| Max. Working Speed | 25-50bags/min | 20-40bags/min | 20-30bags/min |
| Max. Size of Packing | 210×320mm | 300×420mm | 580×380mm |
| Min. Size of Packing | 80×80mm | 160×160mm | 210×320mm |
| Thickness of Packing | 2-30mm | 2-30mm | 20mm |
| Film Thickness | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm |
| Max. Diameter of Film | 420mm | 420mm | 420mm |
| OPP Film Specification | Max.: 250×320mm | Max.: 320×420mm | Max.: 600×385mm |
| Min.:100×100mm | Min.: 150×150mm | Min.: 230×350mm | |
| Motor Power | 10kw | 10kw | 10kw |
| Machine Weight | 2200kg | 2200kg | 2200kg |
| Dimension of Machine | 4500×3300×1650mm | 4500×3300×1650mm | 5800×3500×1600mm |
| Total Pocket width of Both Sides | ±7-8mm | ±7-8mm | ±7-8mm |
| Configuration | Origin | Brand Model |
| PLC programmable controller | Japan | Panasonic |
| Touch screen | Taiwan | WEINVIEW |
| Frequency inverter | China | BEST |
| Servo motor | France | Schneider |
| Solenoid valve | Japan | SMC |
| Pneumatic cylinder | Taiwan | AirTAC |
| Color code | Japan | Panasonic |
| Switch | Taiwan | MEAN WELL |
Automatic Packing Machine Card Packaging Machine
The machine is a dedicated device for fully automatic bag packing for product card, postcard, red packet, manual, honor certificate, comic book, document bag, warranty card, envelope, notebook, hangtag, insole and heterogenic product. It has functions of folding, bag making, counting, trimming, gilding, labeling, sticking adhensive label, bagging and hot sealing and cutting.
The whole action is of modern movement module control with PLC multiaxial servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.
1. Quantity fixing: With quantity counting function, according to the customer requirement, filling the fixed quantity inside the bag.
2. Bag making: With bag making machine, only feeding the plastic film, it can produce the bag directly according to the request, save the time and labor, and reduce the cost, increase the production’s efficiency, and create the benefit.
3. Bag filling: The machine is controlled by PLC and servo motor, all actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic, etc. , replacing the manual operation absolutely.
| Model | FZ-240 | FZ-310 | FZ-520 |
| Max. Working Speed | 25-50bags/min | 20-40bags/min | 20-30bags/min |
| Max. Size of Packing | 210×320mm | 300×420mm | 580×380mm |
| Min. Size of Packing | 80×80mm | 160×160mm | 210×320mm |
| Thickness of Packing | 2-30mm | 2-30mm | 20mm |
| Film Thickness | 0.03-0.06mm | 0.03-0.06mm | 0.03-0.06mm |
| Max. Diameter of Film | 420mm | 420mm | 420mm |
| OPP Film Specification | Max.: 250×320mm | Max.: 320×420mm | Max.: 600×385mm |
| Min.:100×100mm | Min.: 150×150mm | Min.: 230×350mm | |
| Motor Power | 10kw | 10kw | 10kw |
| Machine Weight | 2200kg | 2200kg | 2200kg |
| Dimension of Machine | 4500×3300×1650mm | 4500×3300×1650mm | 5800×3500×1600mm |
| Total Pocket width of Both Sides | ±7-8mm | ±7-8mm | ±7-8mm |
| Configuration | Origin | Brand Model |
| PLC programmable controller | Japan | Panasonic |
| Touch screen | Taiwan | WEINVIEW |
| Frequency inverter | China | BEST |
| Servo motor | France | Schneider |
| Solenoid valve | Japan | SMC |
| Pneumatic cylinder | Taiwan | AirTAC |
| Color code | Japan | Panasonic |
| Switch | Taiwan | MEAN WELL |
