SJ 1050Y/SJ1050YT
KOTEN
SJ 1050Y,SJ1050YT
Negotiate
1
T/T, L/C at sight
5sets/month
By strong seaworthy packaging
Within 30 days after get the deposit.
1547
| Quantity: | |
|---|---|

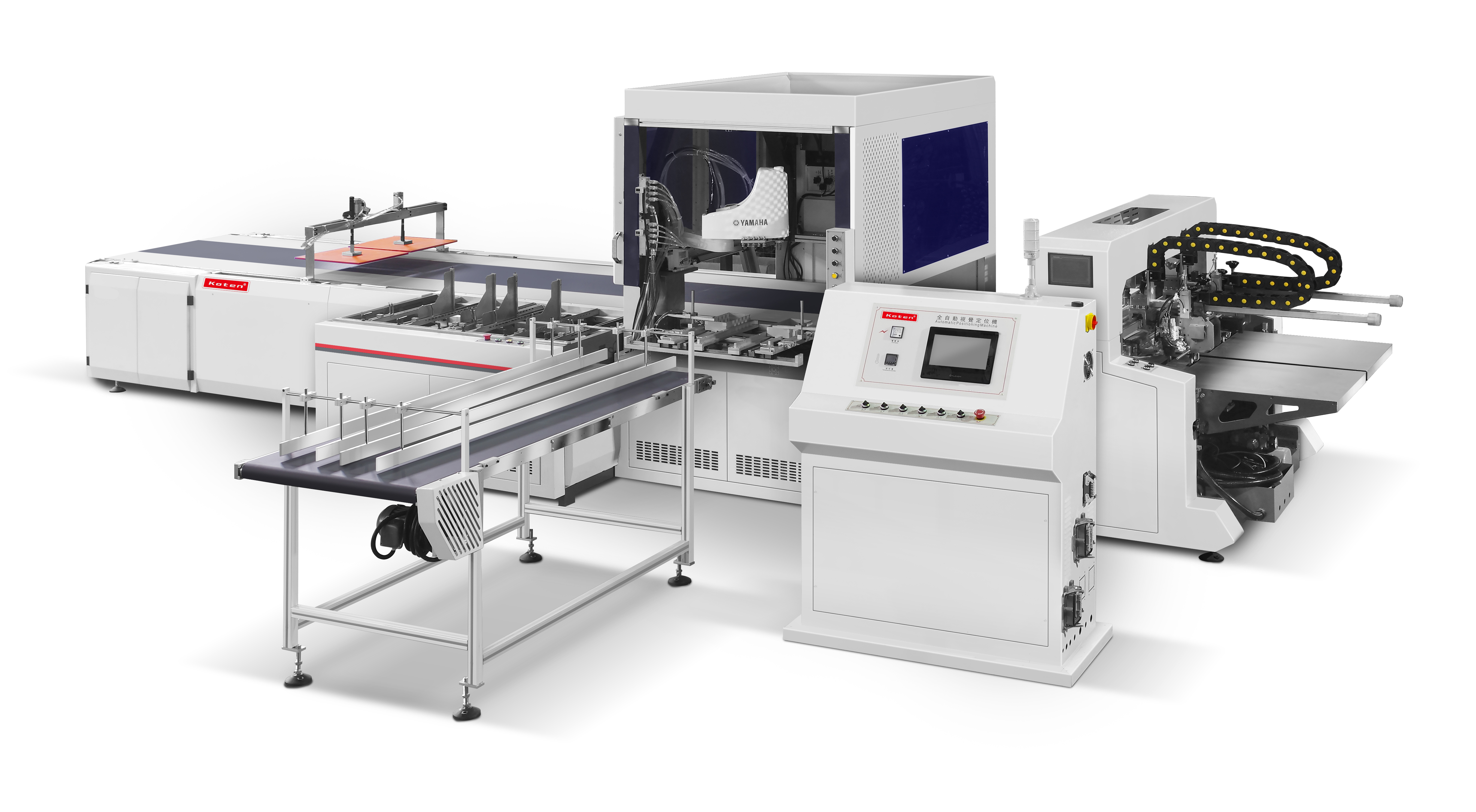

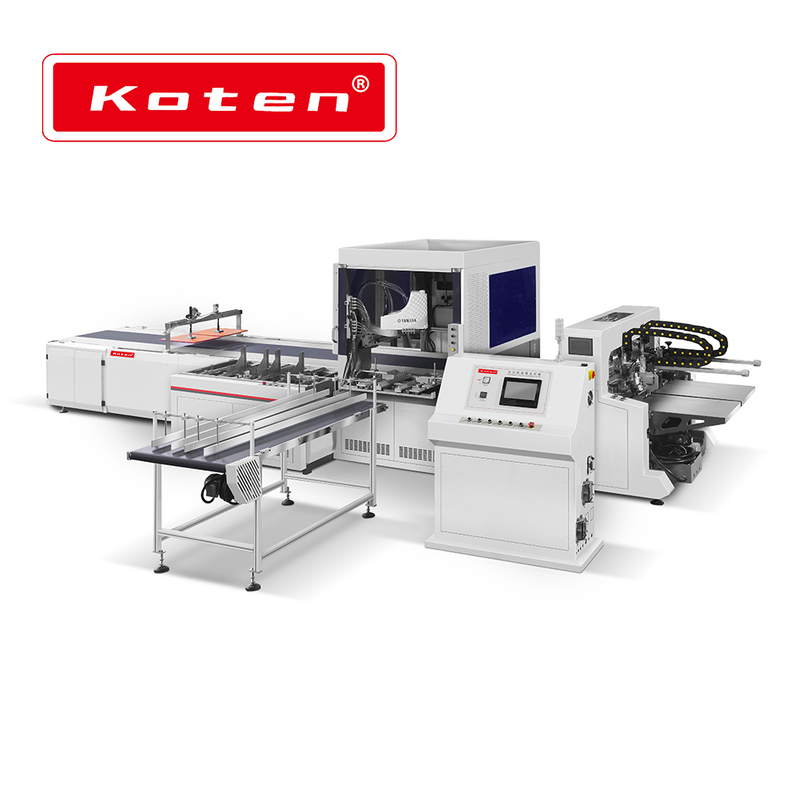

Automatic Multi-Functional Dual-use Visual Positioning Box Making Machine

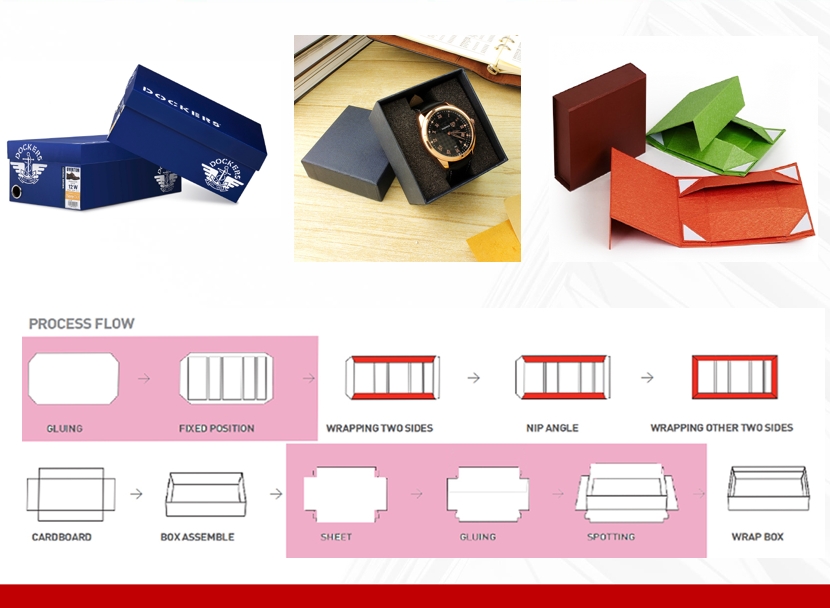

Automatic Visual Positioning Box Making Machine is mainly used for producing boutique boxes with high requirements, like high-grade boxes for iPhones, iPads, Jewelry gifts, makeup, etc. It can work with a Rigid Box folding machine according to the requirements of the boxes.
This is a multi-functional machine with dual-use for both box and case making, Vision position accuracy is strictly controlled within 0.1mm.
Features:
1. Automatic servo system control with PLC touch screen.
2. Fit for box making and case making.
3. Fully automatic feeding paper gluing, board position.

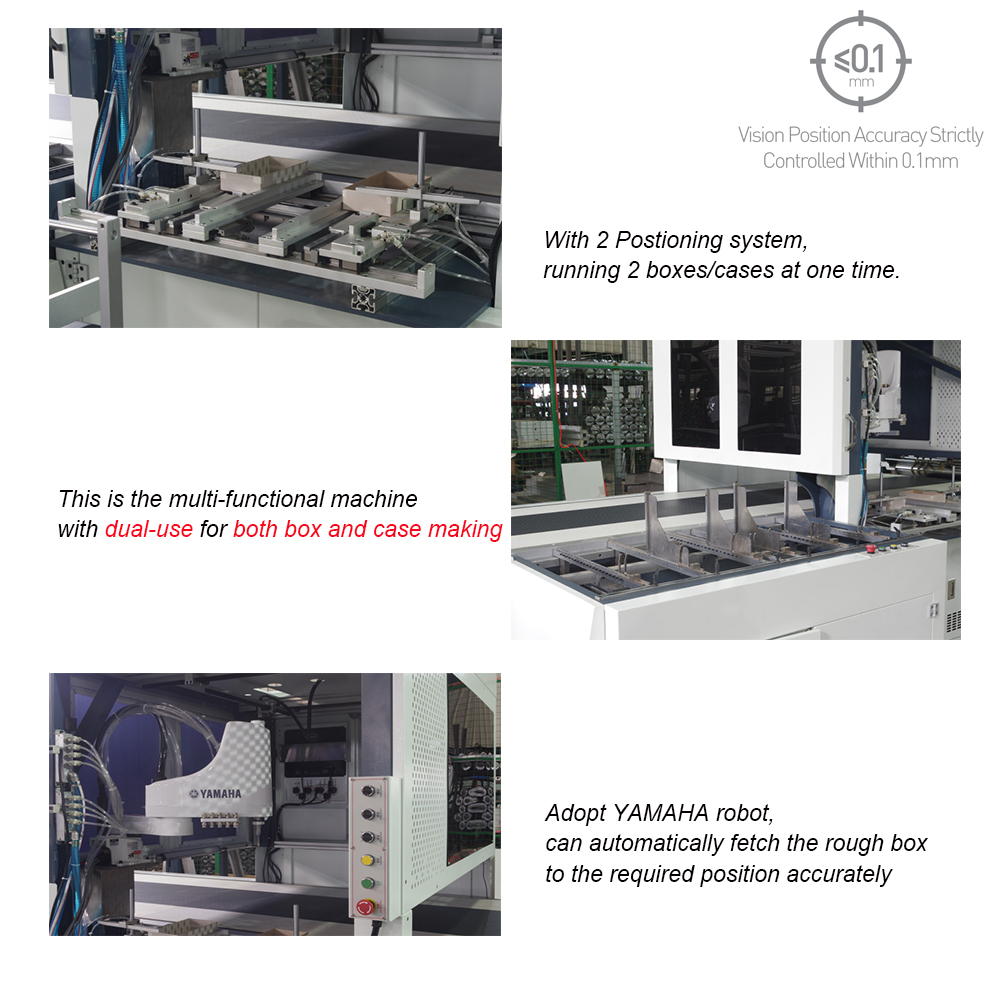

4. Adopt the YAMAHA robot, which can automatically fetch the rough box to the required position accurately.
5. Adopt a visual positioning system, the positioning accuracy is within 0.1mm.
Model | SJ-1050Y/SJ-1050YT | |
Face paper size (AxB) | Minimum Length | 180mm |
Minimum Width | 95mm | |
Maximum Length(one box per time) | 1000mm | |
Maximum Width(one box per time) | 950mm | |
Maximum Length (two boxes per time) | 1000mm | |
Maximum Width (two boxes per time) | 380mm | |
Thickness of tissue paper | 80-300g/m2 | |
Push plate size(AxB) | Maximum 460mm*800mm, Minimum 10mm*80mm | |
Pushing box size | Maximum length of double push box | 370x220x150mm(without pushing device) 300x220x150mm(with pushing device) |
Minimum length of double push box | 107x80x10mm(with pushing device) | |
Maximum length of single push box | 370x650x150mm(without pushing device) 300x650x150mm(with pushing device) | |
Minimum length of single push box | 107x80x15mm (with pushing device) | |
Cardboard thickness | 0.8-3 mm | |
Manipulator model | YK710XE-10-200-3L | |
Position precision | ≤±0.1mm | |
Production speed | (Two boxes/time)40pcs/min (One box/time)25pcs/min | |
Stacking height of tissue paper | 480mm | |
Gas souice requirements | 20L/min 0.8Mpa | |
Total power of equipment | 15KW/AC380V | |
Equipment size | 7700x4000x2140 / 9700x4000x2140 | |
