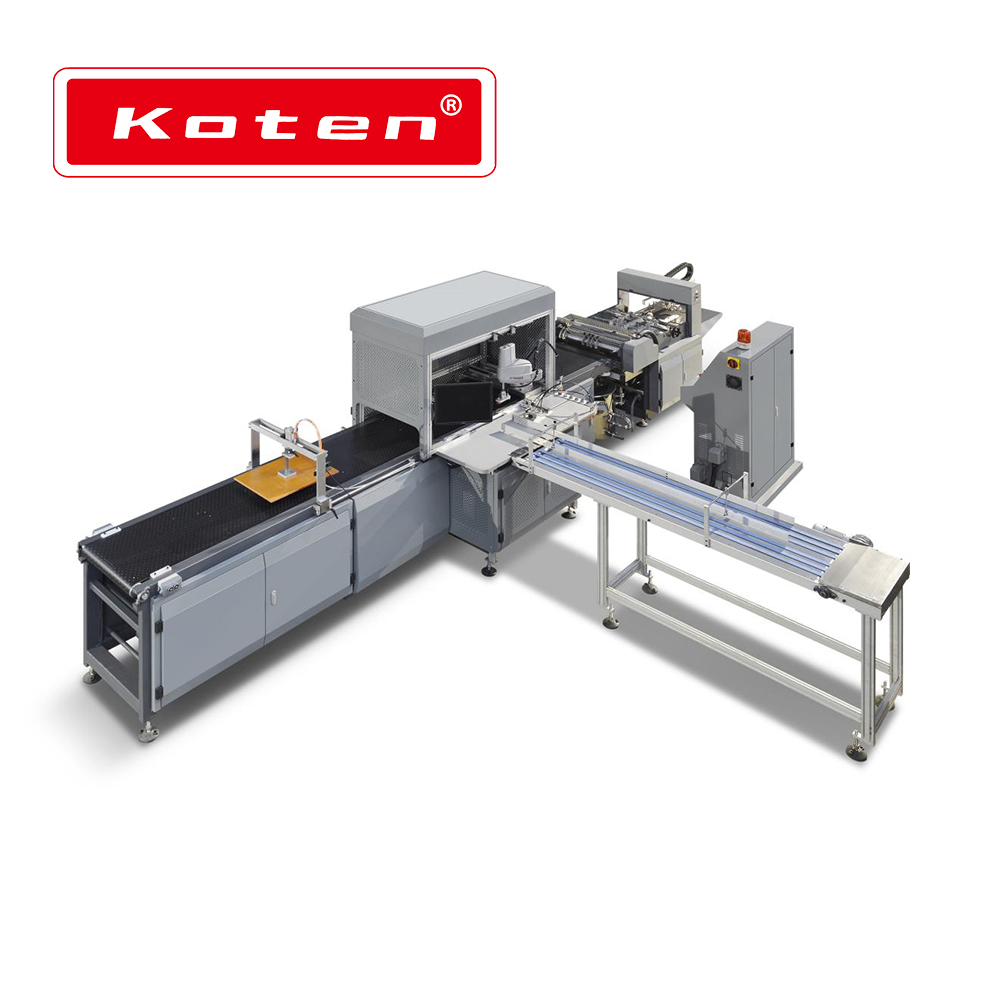

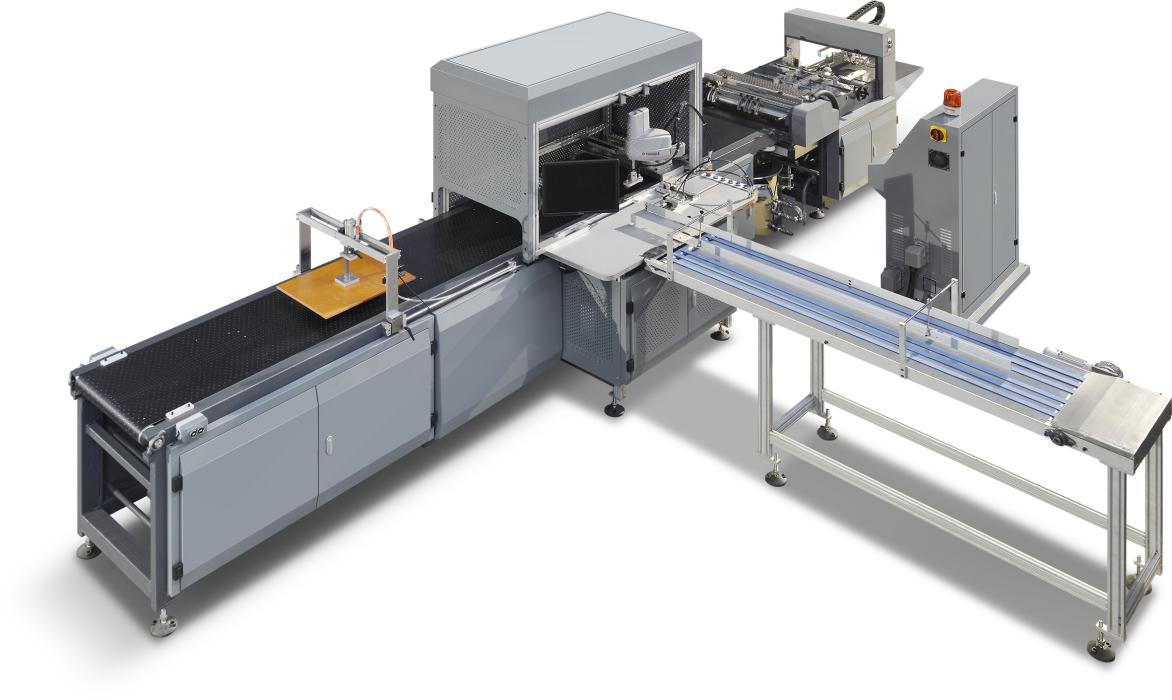

SJ600Y Automatic Dual-use Visual Positioning Machine
for Box Making and Case Making
Automatic Visual Positioning Box Making Machine is mainly used for producing boutique boxes with high requirements, like high-grade boxes for iPhones, iPads, Jewelry gifts, makeup, etc. It can work with a Rigid Box folding machine according to the requirements of the boxes.
This is a multi-functional machine with dual-use for both box and case making, Vision position accuracy is strictly controlled within 0.1mm.
Features:
1. Automatic servo system control with PLC touch screen.
2. Fit for box making and case making.

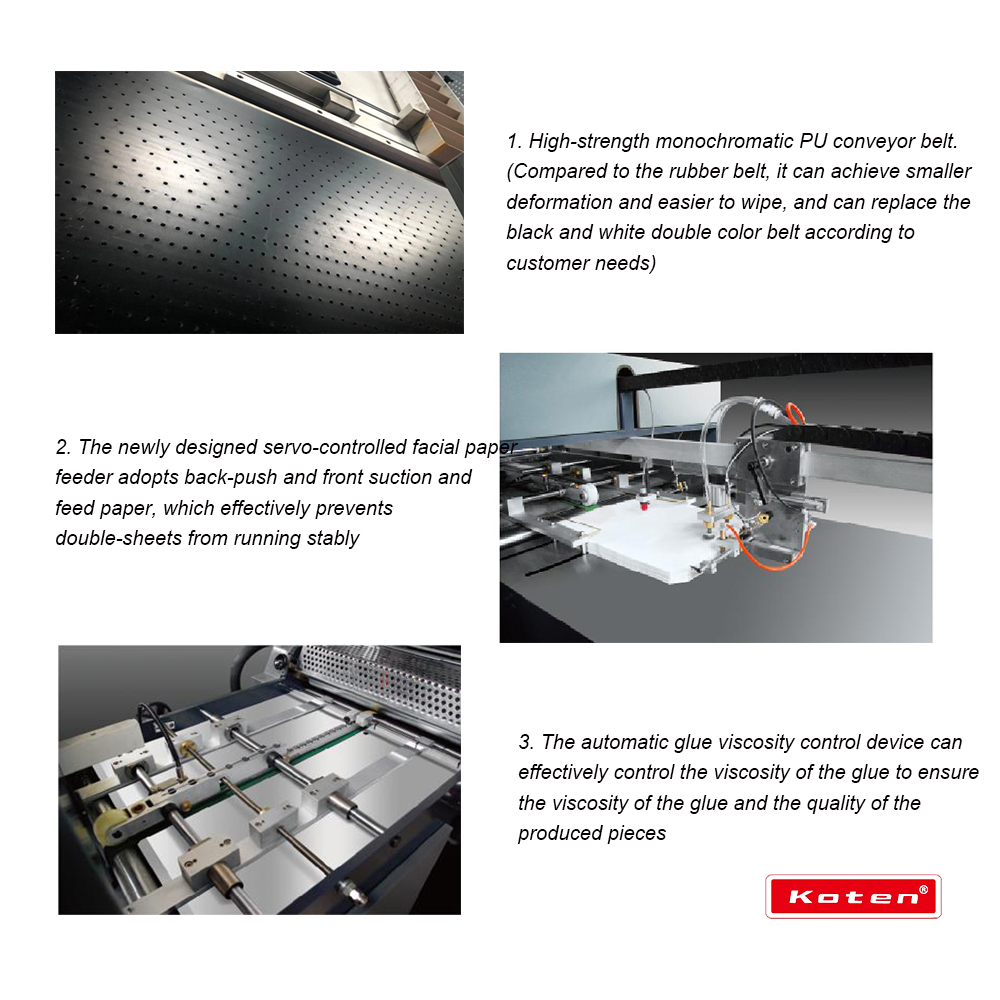

3. Fully automatic feeding paper gluing, board position.

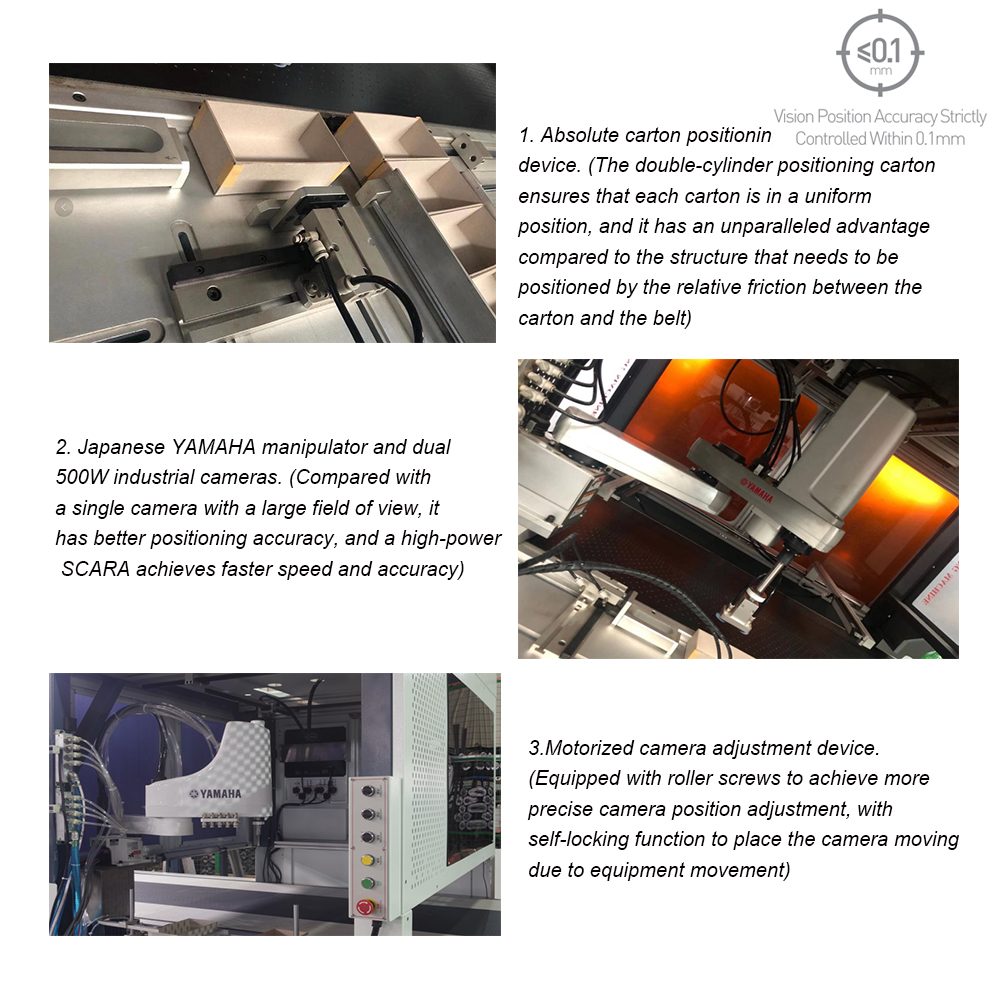

4. Adopt the YAMAHA robot, which can automatically fetch the rough box to the required position accurately.
5. Adopt a visual positioning system, the positioning accuracy is within 0.1mm.
Model | SJ-600Y |
Length of paper | 190-1000MM |
Width of paper | 130-600MM |
Finish size Max | 450x350x150MM |
Finish size Min | 100x50x15mm |
Thickness of paper | 80-200g/㎡ |
Thickness of cardboard | 1-3MM |
Precision | ±0.1MM |
Working Speed | 0-30 PCS/MIN |
Dimension | L7600*W3500*H2100MM |
Power supply | 15KW |
Weight | 1500KGS |
SJ600Y Automatic Dual-use Visual Positioning Machine
for Box Making and Case Making
Automatic Visual Positioning Box Making Machine is mainly used for producing boutique boxes with high requirements, like high-grade boxes for iPhones, iPads, Jewelry gifts, makeup, etc. It can work with a Rigid Box folding machine according to the requirements of the boxes.
This is a multi-functional machine with dual-use for both box and case making, Vision position accuracy is strictly controlled within 0.1mm.
Features:
1. Automatic servo system control with PLC touch screen.
2. Fit for box making and case making.
3. Fully automatic feeding paper gluing, board position.
4. Adopt the YAMAHA robot, which can automatically fetch the rough box to the required position accurately.
5. Adopt a visual positioning system, the positioning accuracy is within 0.1mm.
Model | SJ-600Y |
Length of paper | 190-1000MM |
Width of paper | 130-600MM |
Finish size Max | 450x350x150MM |
Finish size Min | 100x50x15mm |
Thickness of paper | 80-200g/㎡ |
Thickness of cardboard | 1-3MM |
Precision | ±0.1MM |
Working Speed | 0-30 PCS/MIN |
Dimension | L7600*W3500*H2100MM |
Power supply | 15KW |
Weight | 1500KGS |
