Exercise Book Stitching And Folding Machine

Exercise Book Stitching And Folding Machine from China manufacturer - Koten Machinery
  • DZ-650/1040

  • Koten

  • DZ-650/1040

  • Negotiate

  • One set

  • T/T, L/C At Sight

  • 10 sets/month

  • By strong sea worthy wooden cases.

  • Within 30 days after receipt of the deposit.

  • China

  • 3698

Availability:
Quantity:
sharethis sharing button

Products Description

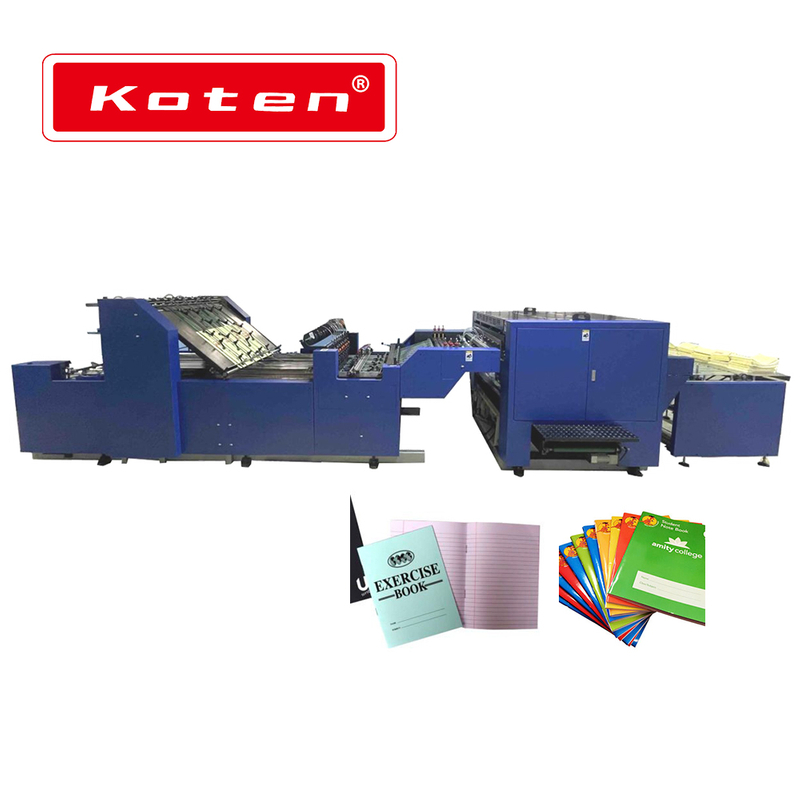

Exercise Book Stitching And Folding Machine(DZ-650/1040)

The nail folding and cutting machine is independently developed by our company for the production of workbooks and exercise books. This product adopts domestic high-quality electrical and program-controlled supply, high-strength materials and high-quality mechanical structure. The adjustable position of the Heller nail head and high-strength material cutting knife can be used to trim and cut the left and right sides of the finished product and the tail. At the same time, the tail storage part can be set to automatically advance. It has greatly improved the production efficiency and reduced the cost of employment.

Exercise Book Stitching And Folding Machine

Parameters


Model

DZ-650

DZ-1040

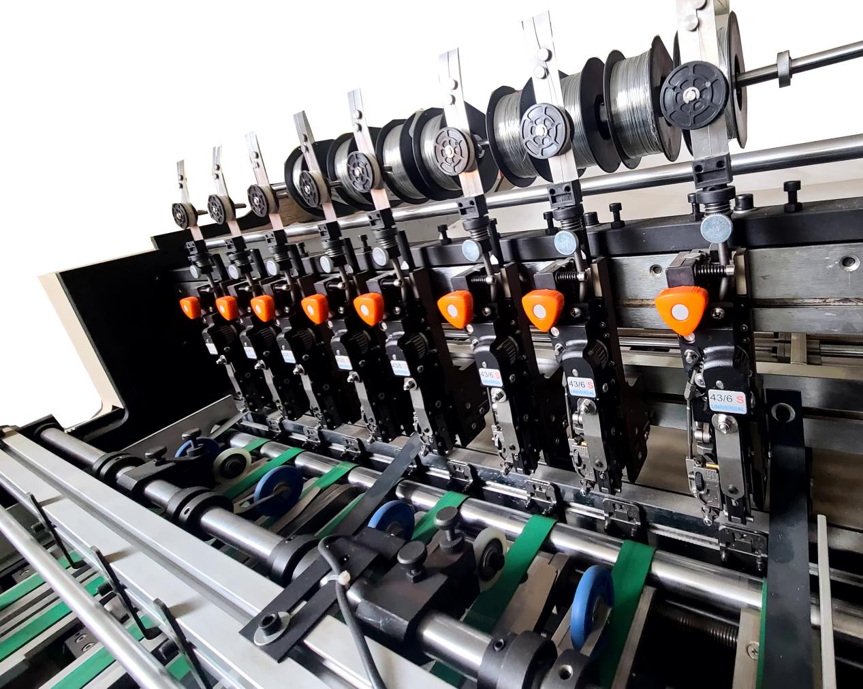

Nail

8 groups (Holler nail head)

8 groups (Holler nail head)

Max Sheet Size

650*640mm

1040*1000mm

Min Sheet Size

330*250mm

330*250mm

Binding Speed

1200-2500 posts/hour

1200-2500 posts/hour

Folding: Maximum Folding

Max.folding 20 - 28 pages

Max.folding 20 - 28 pages

Cutter

8 (cutter spacing depends on the product)

8 (cutter spacing depends on the product)

Power

380V-400V

380V-400V

Total Power

12 kW

12 kW

Equipment Size

7200*1800*1550mm

7200*1400*1550mm

Equipment Weight

3800kgs

3300kgs

Power Distribution Box

standard

standard

Application

Exercise Book Stitching And Folding Machine
