ZD-850
koten
ZD-850
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
5678
| Quantity: | |
|---|---|

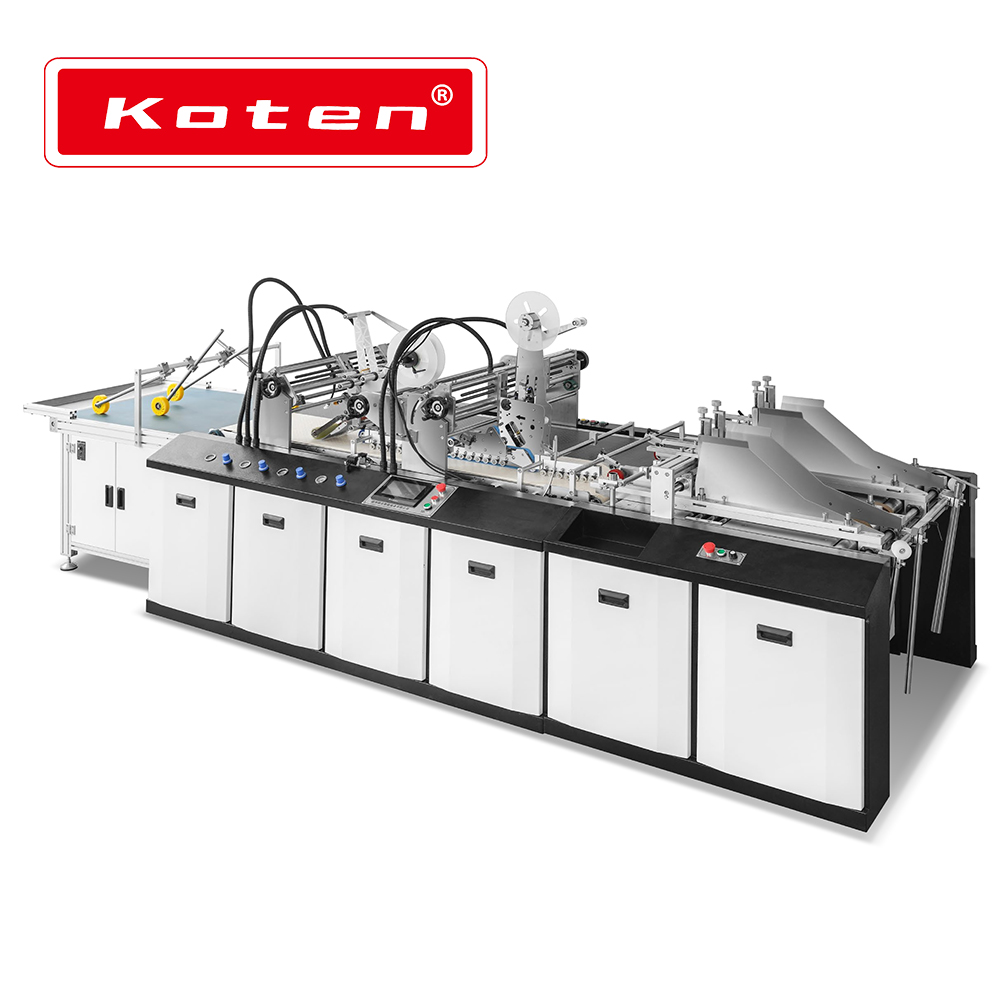

FULLY AUTOMATIC FOLDING BOX TAPE MACHINE
1. 4 triangular double-sided tapes and 2 long strips of double-sided tape can be attached at the same time.
2. Optical fiber induction cooperates with servo positioning, and the double-sided tape is placed accurately.
3. The conveyor belt absorbs air throughout the process, the product is transported smoothly, and the glue
sticking error is small.
4. Human-machine interface, parameter touch screen setting.
5. The length of the long double-sided tape is controlled by touch screen parameters.
6. Manual feeding, simple control, high production efficiency, up to 40pcs/min.
7. Modular design, which can be connected to the mechanical arm for feeding.
Model | ZD-850 |
Material | Over 200g/m² cardboard/ corrugated board/E-B-C-wave |
Min open blank | 140x100 mm |
Max open blank | 850x850 mm |
Working width | 850 mm |
Conveyor Speed | 70m/min |
Tape roll width | 5-35mm 10-60mm |
Precision | ±1.5mm |
Needed air supply | Min. 6 bar |
Power required | 4kw (220V AC 3φ 50HZ) |
Weight | 1700KG |
Machine size | 4500×1400×1400mm |
