S18Y
KOTEN
S18Y
S18Y
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
ChinaProducts Description 官网主图模板 FULLY AUTOMATIC FOLDING BOX TAPE MACHINE 1. 4 triangular double-sided tapes and 2 long strips of double-sided tape can be attached at the same time. 2. Optical fiber induction cooperates with servo positioning, and the double-sided tape is placed accurately. 3. The conveyor belt absorbs air throughout the process, the product is transported smoothly, and the glue sticking error is small. 4. Human-machine interface, parameter touch screen setting. 5. The length of the long double-sided tape is controlled by touch screen parameters. 6. Manual feeding, simple control, high production efficiency, up to 40pcs/min. 7. Modular design, which can be connected to the mechanical arm for feeding. Parameters Model ZD-850 Material Over 200g/m² cardboard/ corrugated board/E-B-C-wave Min open blank 140x100 mm Max open blank 850x850 mm Working width 850 mm Conveyor Speed 70m/min Tape roll width 5-35mm 10-60mm Precision ±1.5mm Needed air supply Min. 6 bar Power required 4kw (220V AC 3φ 50HZ) Weight 1700KG Machine size 4500×1400×1400mm Application 图片1 Company Profile Slice 1Slice 2Slice 3Slice 4Slice 5Slice 6Slice 7Slice 8Slice 9
Availability: | |
---|---|
Quantity: | |

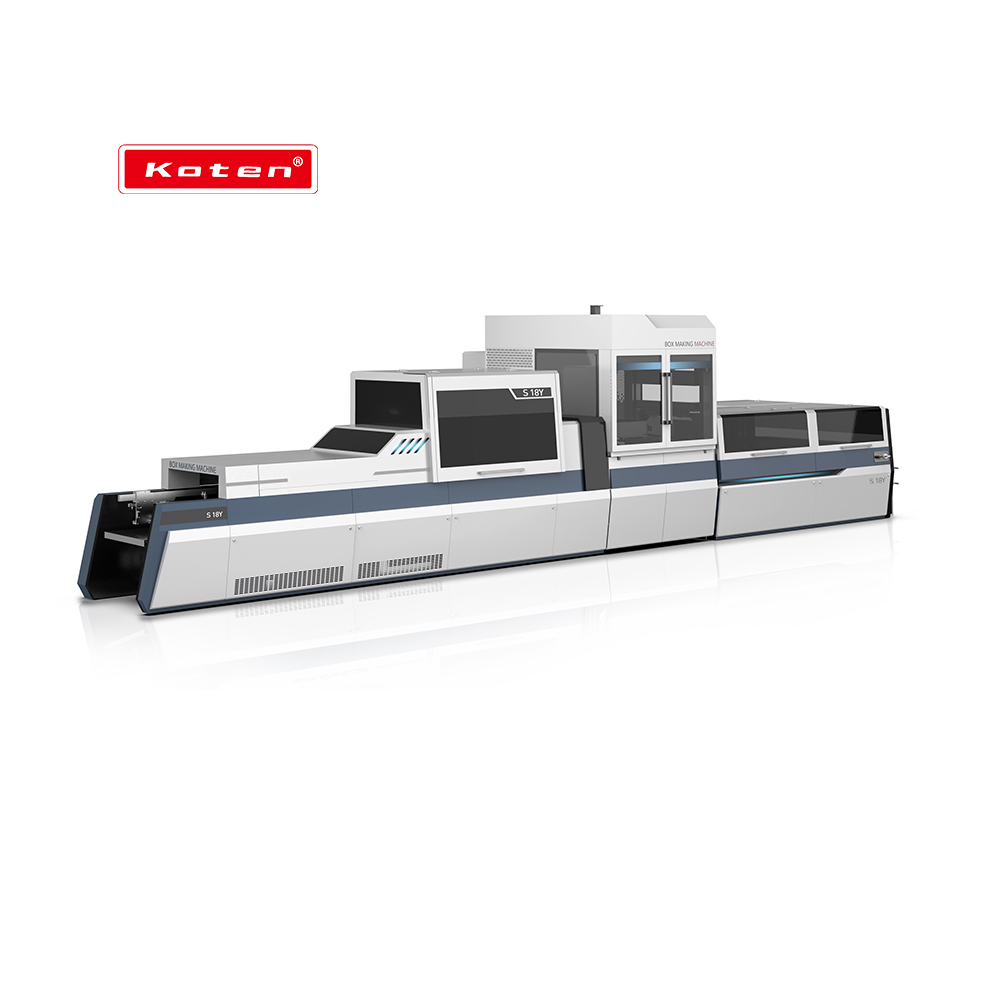

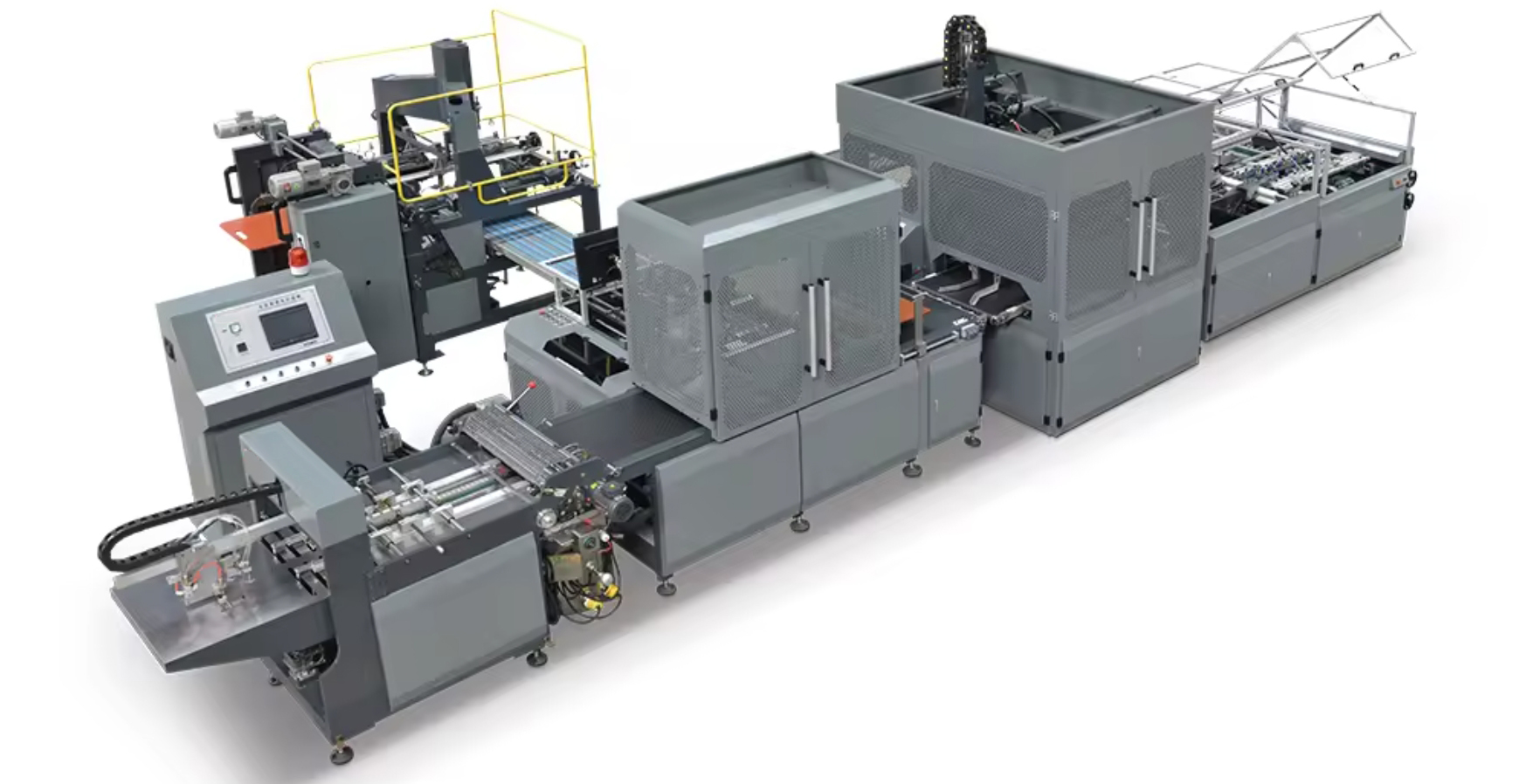

Fully Automatic Multi-function Box Making Machine Case Making Machine

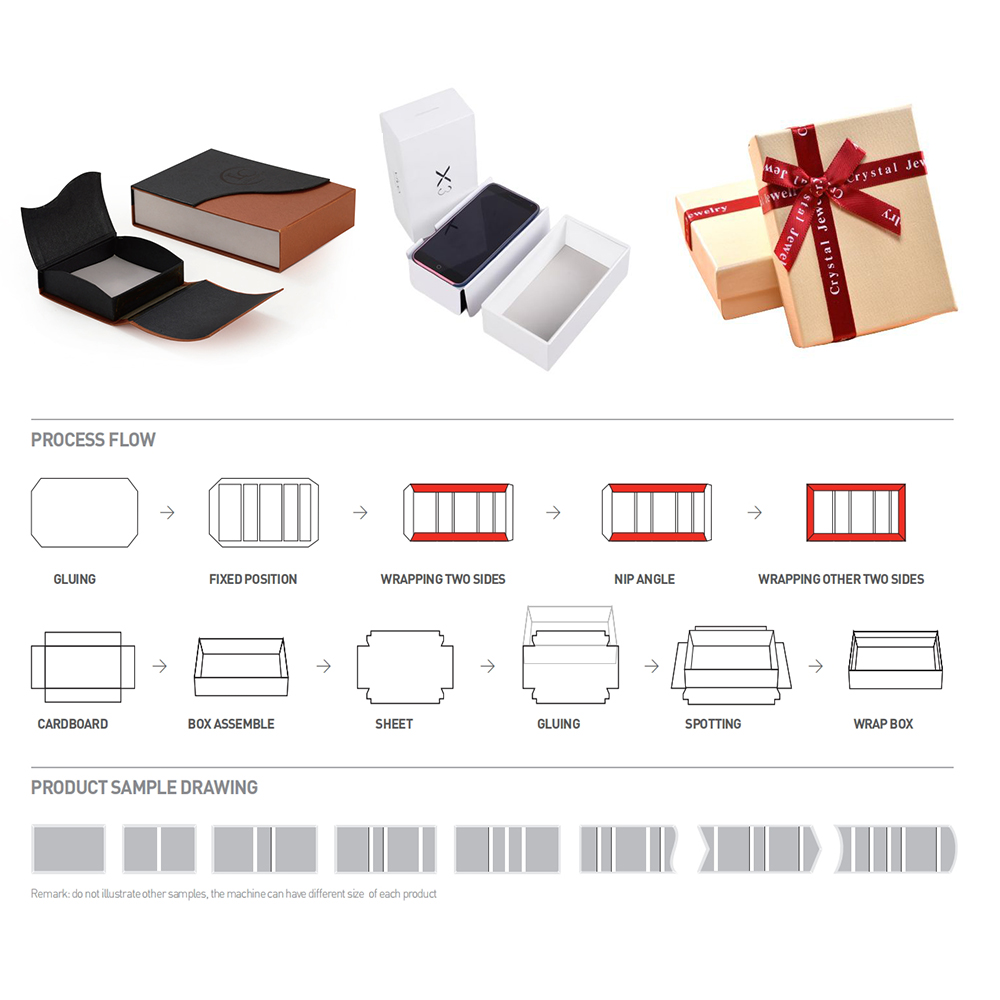

This machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, iPad, Jewelry gift, makeup,etc.It can work with Rigid Box Making & Case Making.
Features:
1. It adopts high-speed automatic paper feeding system, which is controlled pneumatically, and its structures are simple and reasonable.
2. New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding.
And the copper scraper is more durable
3. Paper feeding and positioning systems adopt imported high precise
photoelectric control device to make the paper and cardboard location more accurate.
4. It adopts PLC control, featuring simple operation. The troubles are displayed directly on the HMI,
which helps the operator easily remove them.
S18 CASE MAKER UNIT | |
cover length | 180-1000mm |
cover width | 80-600mm |
Cardboard thickness | 1-3mm |
Min width of spine | 8mm |
speed | 0-30pcs/min |
S 18Y BOX WRAPPER UNIT | |
Max box size | 450x410x120mm |
Min box size | 60x80x10mm |
Motor Power voltage | 2.5kw/220v |
Air pressure | 0.8mpa |
Machine Dimension | 1550x1400x2000mm |
Weight Of machine | 1100kg |
S 18Y COMMON PART | |
Length of paper | 190-1030mm |
Width of paper | 110-630mm |
Thickness of paper | 80~200g/m2 |
Position precision | ± 0.1mm |
Power | 20kw |
Weight | 7000kg |
Dimension | L11000×W5000×H2800mm |
Fully Automatic Multi-function Box Making Machine Case Making Machine
This machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, iPad, Jewelry gift, makeup,etc.It can work with Rigid Box Making & Case Making.
Features:
1. It adopts high-speed automatic paper feeding system, which is controlled pneumatically, and its structures are simple and reasonable.
2. New designed copper scraper cooperates with the rubber more compactly, effectively avoiding paper winding.
And the copper scraper is more durable
3. Paper feeding and positioning systems adopt imported high precise
photoelectric control device to make the paper and cardboard location more accurate.
4. It adopts PLC control, featuring simple operation. The troubles are displayed directly on the HMI,
which helps the operator easily remove them.
S18 CASE MAKER UNIT | |
cover length | 180-1000mm |
cover width | 80-600mm |
Cardboard thickness | 1-3mm |
Min width of spine | 8mm |
speed | 0-30pcs/min |
S 18Y BOX WRAPPER UNIT | |
Max box size | 450x410x120mm |
Min box size | 60x80x10mm |
Motor Power voltage | 2.5kw/220v |
Air pressure | 0.8mpa |
Machine Dimension | 1550x1400x2000mm |
Weight Of machine | 1100kg |
S 18Y COMMON PART | |
Length of paper | 190-1030mm |
Width of paper | 110-630mm |
Thickness of paper | 80~200g/m2 |
Position precision | ± 0.1mm |
Power | 20kw |
Weight | 7000kg |
Dimension | L11000×W5000×H2800mm |
