DS1200
DS1200
Negotiate
One set
T/T, L/C At Sight.
10SETS/MONTH
By strong sea worthy wooden cases.
Within one month after receipt of the deposit.
China
3042
Availability: | |
---|---|
Quantity: | |

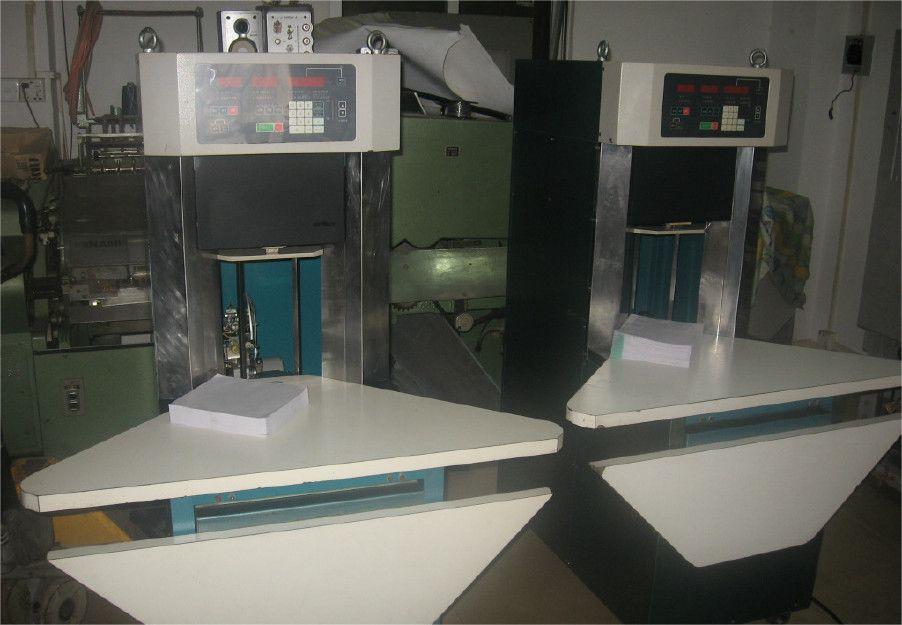

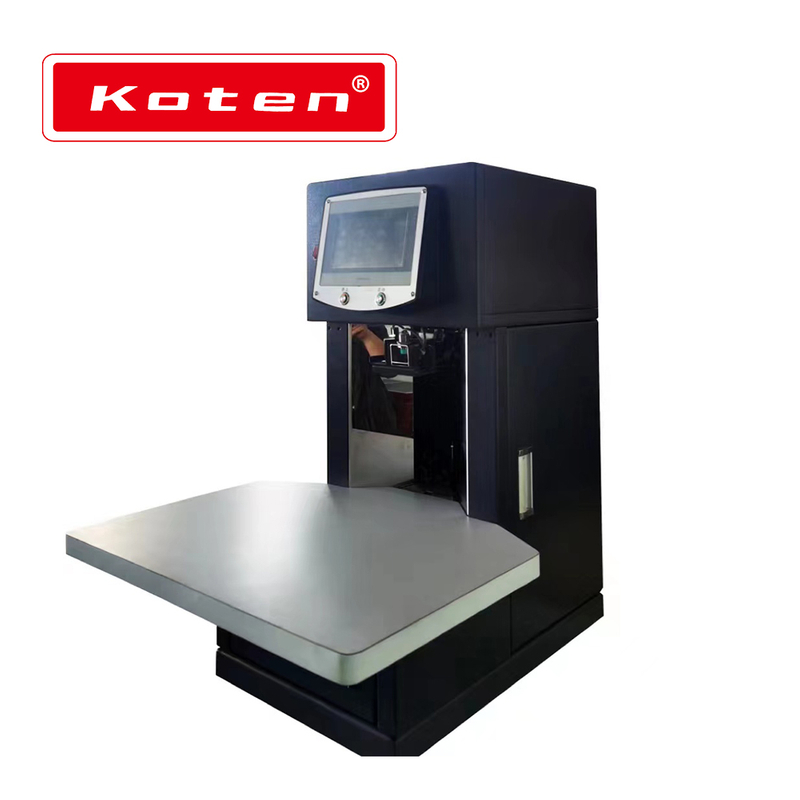

This machine is used for paper counting, usually used for notebooks, manuals, newspapers, books, papers, self-adhesive, sketch paper and other countable inserts, book page number review.
Features are as follows
1. The number of test papers can be set according to the number of classes.
2. Book binding factory for the same content of book core, notebook core for equal division insert and count.
3. Accurate and high-speed counting of all kinds of conventional paper within the parameter range, special paper (depending on the actual situation).
4. With self-diagnosis function, the operator can judge whether it is the error on the operation or the anomaly caused by the machine fault through the clear information display on the fault detection interface.
5. Fully automatic PLC control, the use of servo motor, the circuit is stable and reliable, accurate counting.
Model | DS1200 |
Paper Size Range | 65*65mm-297*420mm |
Thickness Range | 30gsm-230gsm |
Max. Speed | 1200 pieces/min |

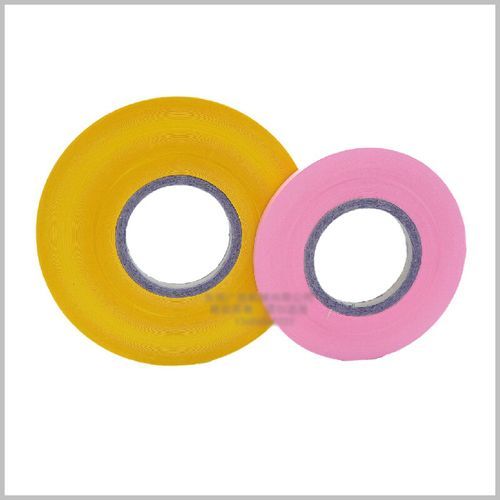

Insert Paper Specifications | Width 5mm, Length 70m |
Power | 0.75KW |
Max. Paper Height | 140mm |
Table Size | 500*600mm |
Table Height | 280mm |
Voltage | 220v |
Machine Size | 600*380*750mm |
Machine Weight | 87KGS |
No. | Description | Brand |
1 | Inductor | OMRON |
2 | PLC | WECON |
3 | Servo System | DOMESTIC |
4 | Touch Screen | WECON |
5 | Vacuum Pump | LEYNOW |
This machine is used for paper counting, usually used for notebooks, manuals, newspapers, books, papers, self-adhesive, sketch paper and other countable inserts, book page number review.
Features are as follows
1. The number of test papers can be set according to the number of classes.
2. Book binding factory for the same content of book core, notebook core for equal division insert and count.
3. Accurate and high-speed counting of all kinds of conventional paper within the parameter range, special paper (depending on the actual situation).
4. With self-diagnosis function, the operator can judge whether it is the error on the operation or the anomaly caused by the machine fault through the clear information display on the fault detection interface.
5. Fully automatic PLC control, the use of servo motor, the circuit is stable and reliable, accurate counting.
Model | DS1200 |
Paper Size Range | 65*65mm-297*420mm |
Thickness Range | 30gsm-230gsm |
Max. Speed | 1200 pieces/min |
Insert Paper Specifications | Width 5mm, Length 70m |
Power | 0.75KW |
Max. Paper Height | 140mm |
Table Size | 500*600mm |
Table Height | 280mm |
Voltage | 220v |
Machine Size | 600*380*750mm |
Machine Weight | 87KGS |
No. | Description | Brand |
1 | Inductor | OMRON |
2 | PLC | WECON |
3 | Servo System | DOMESTIC |
4 | Touch Screen | WECON |
5 | Vacuum Pump | LEYNOW |
