AK-1050
KOTEN
AK-800
Negotiable
1
30% deposit 70% final payment
1sets/month
By strong seaworthy strong packaging
Within 40 days after get the deposit.
China
| Quantity: | |
|---|---|

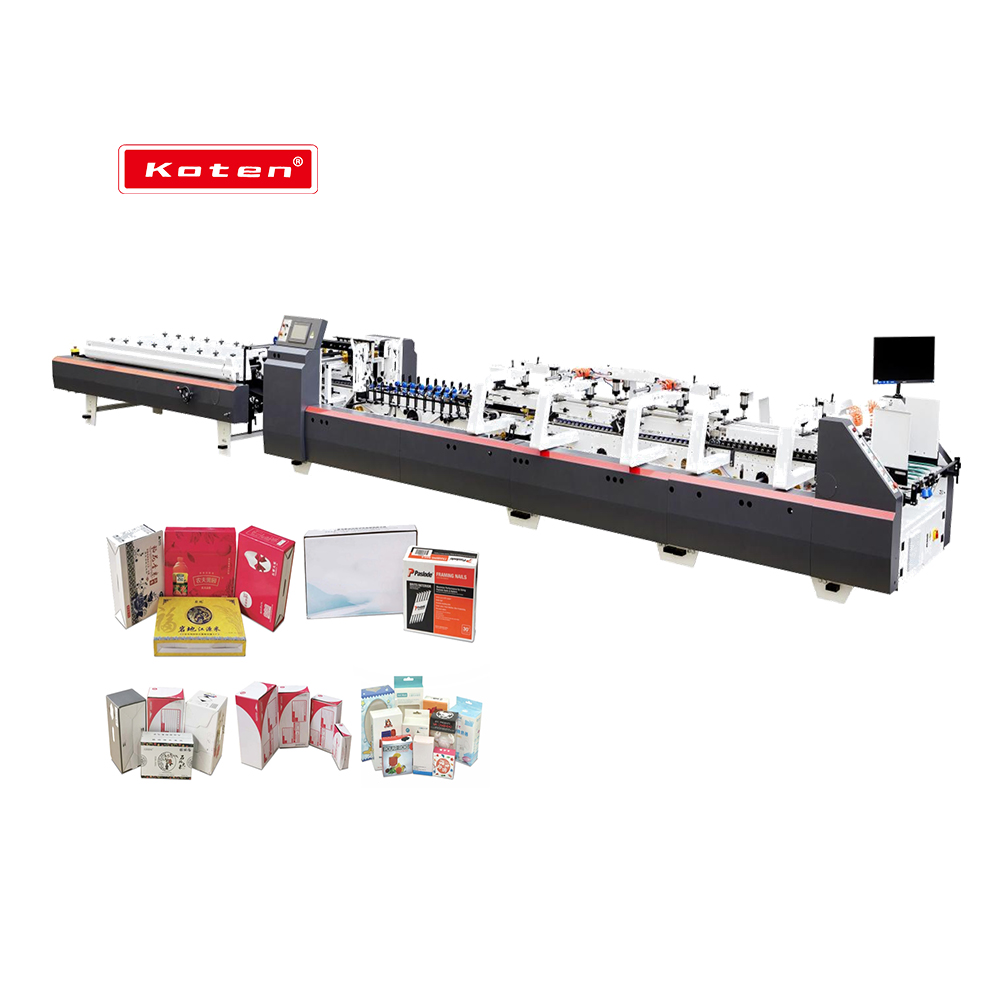

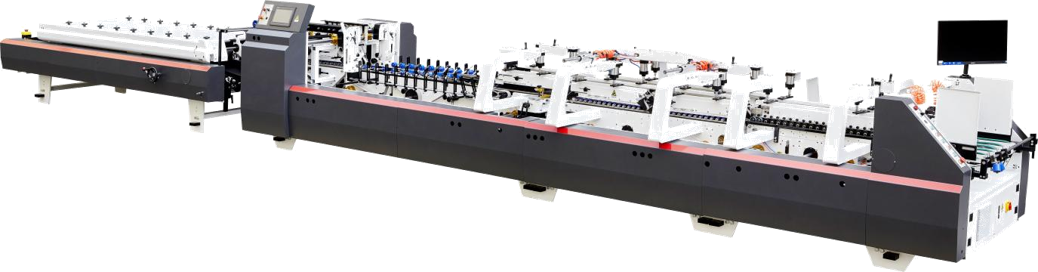

Product introduction
This machine is specially used for paper board shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° , perfectly combing the requirements of auto packaging together.
Application
Machine Advantage
Feeding
Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.
Continuously Variable Speeder to ensure feeding internal and stable transmission.
One-touch Pneumatic knife, easy for the adjustment of feeding belts.
2.Pre-fold
Double-board structure with a set of pre-folding knife.
Pre-fold angle is 180°, especially suitable for small but high cartons, more satisfactory while rapid prototyping
3.Bottom-lock
3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
Bottom-folding speed is 50-200 pcs per min, stable and reliable.
4.Folding
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
5.Full pressing
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
6.Transmission
Equipped with feeding paper inspection device.
Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
7.The Grinding part
More effective treatment of paper surface UV, the carton adhesive more stronger
8.CCTV monitors
The machine adapt CCTV monitors could see machine product
9.Touchscreen
The machine adapt touchscreen adjustment, fast to adjust.
Specification
Name | AK Auto Pre-fold & lock bottom folder gluer machine |
Model | AK-800 / 1050 |
Paper Material | Cardboard 200-800g E-fluteE /F-fluteF |
Max. Liner speed | Max. 280meter/minute |
Feeding way | Automatically and continuously feeding |
Way of folding | Fold 1and fold 3are 180°and 135°， Fold 2and fold 4 are 180° Bottom folded and glued |
GlueMaterial | Water-base cold glue |
Electricpower | 7.5KW 3P |
Weight | 3300/3500KG |
Over dimension | 11500 x(1500/1700)x 1400mm |
Configuration
