JXZC-1060T
KOTEN
JXZC-1060T
1 pc
30% deposit 70% final payment
strong packaging
60 days
China
| Quantity: | |
|---|---|

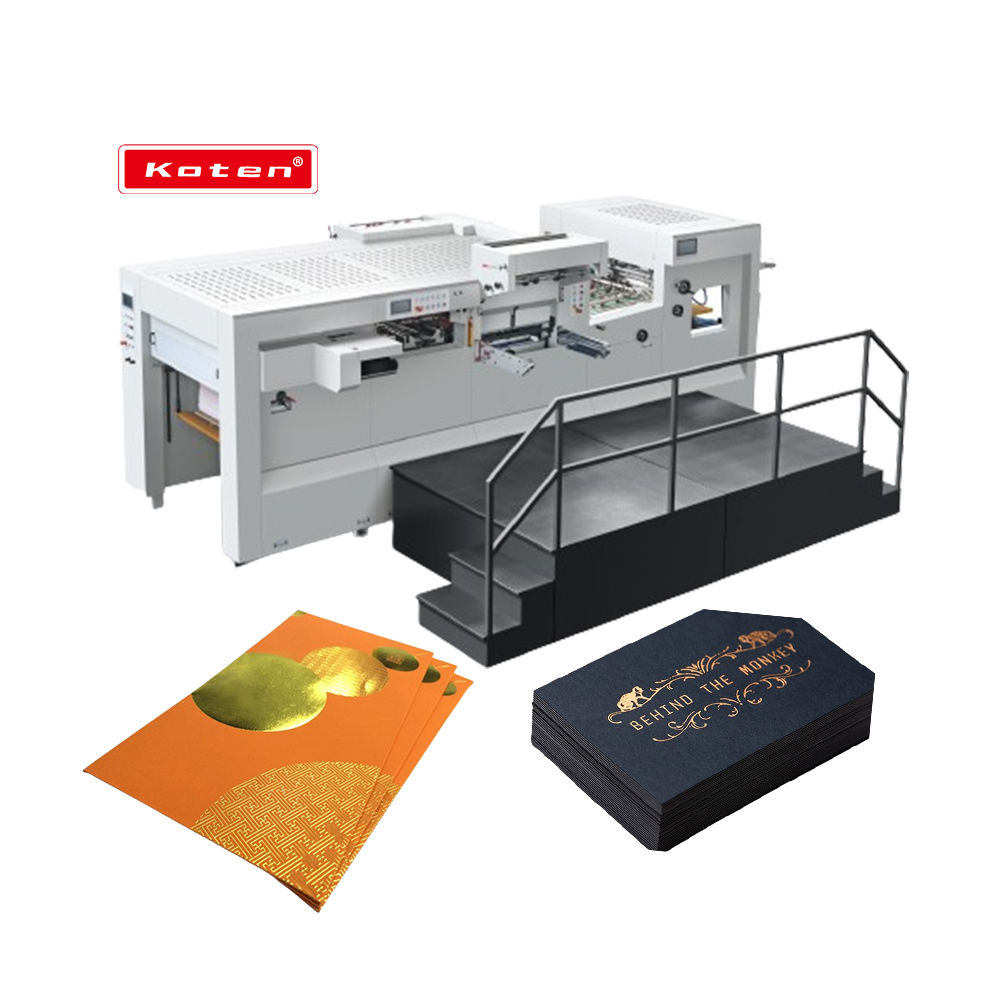

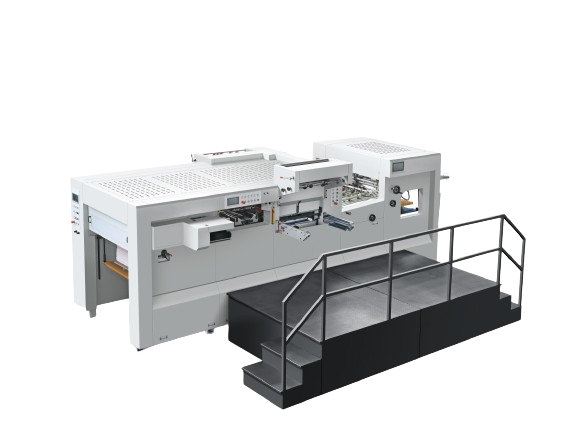

This model is a specialized equipment for hot pressing various types of paper, plastic sheets, plates, and other products. This machine is suitable for hot stamping anodized aluminum onto various paper products and can also be used as a cutting machine for die-cutting and creasing various paper packaging. Various advanced and fine printed products can be subjected to concave convex hot stamping, flat hot stamping and embossing on this machine to obtain three-dimensional, exquisite and beautiful packaging anddecoration products.

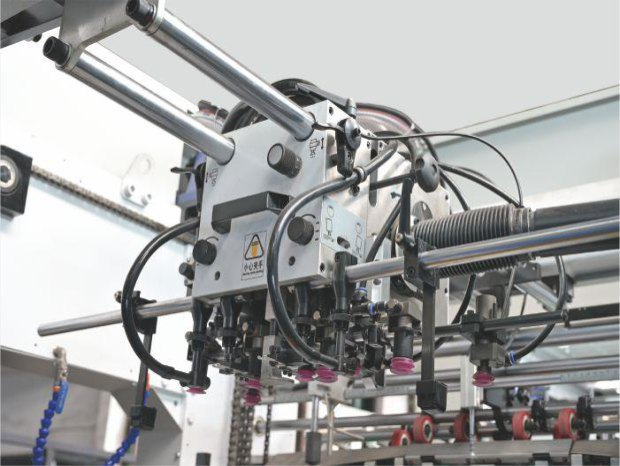

Feida, paper feeding
European technology manufacturing precision Feida head cardboard, corrugated paper, and gray board paper for multiple purposes
(1) Four suction and four feeding, adjustable suction angle and height according to paper deformation
(2) Unique paper receiving mechanism, suitable for different deformed papers

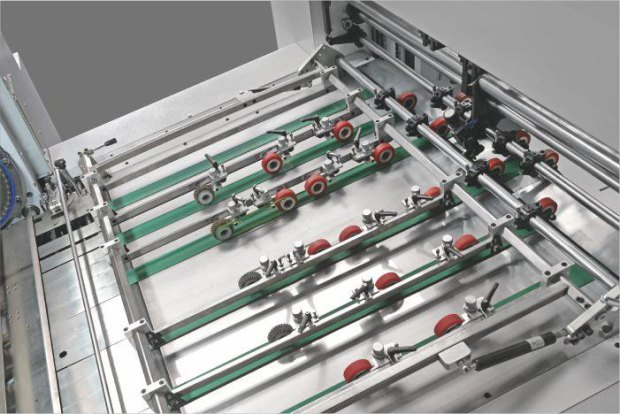

Paper transfer desk
(1) Electromechanical double sheet detector
(2) Adopting advanced control system to control the
speed of paper feeding device to ensure smooth paper
feeding and reduce collisions

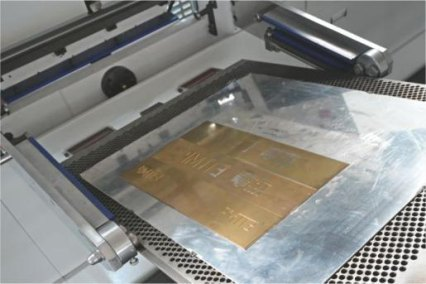

Die cutting device
(1) The pressure bearing components are high-strength ductile iron QT600-7, cast with a special process, High strength and never deform
(2) Nickel chromium molybdenum alloy steel crankshafts made of imported steel from Germany and treated with special processes
(3) Super wear-resistant worm gear and worm imported from Taiwan

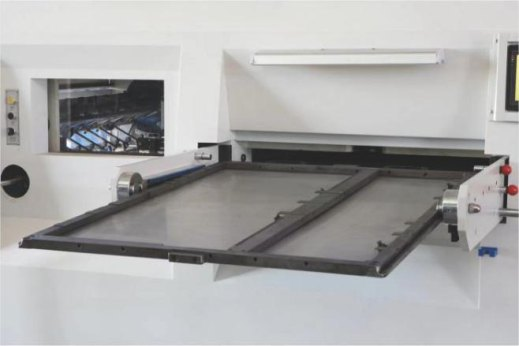

(4) Convenient and fast tool template flipping device

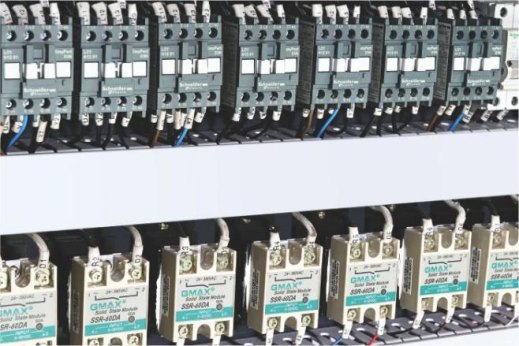

Electrical equipment
(1) The human-machine interactive touch function can be
set with different long and short pull options
(2) If the length of the gold foil is shorter than 6cm, an
alarm will be triggered
(3) The computer processing gold foil monitoring system
displays the remaining and used gold foil lengths

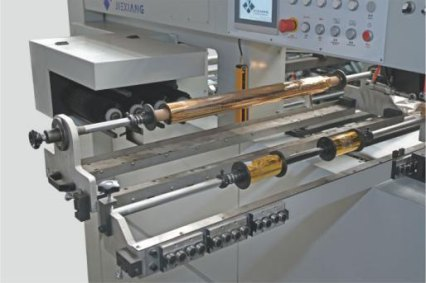

Hot stamping device
(1) Vertical and horizontal foil feeding system, capable of simultaneously stamping vertically and horizontally, reducing the amount of foil used and saving foil replacement time
(2) The three vertical and two horizontal foil feeding mechanisms all use Huichuan Technology servo motors and Huichuan Technology PLC control systems.
Paper collecting device
(1) Automatic paper aligning device and two blowing devices ensure that both thick and thin paper can be neatly folded

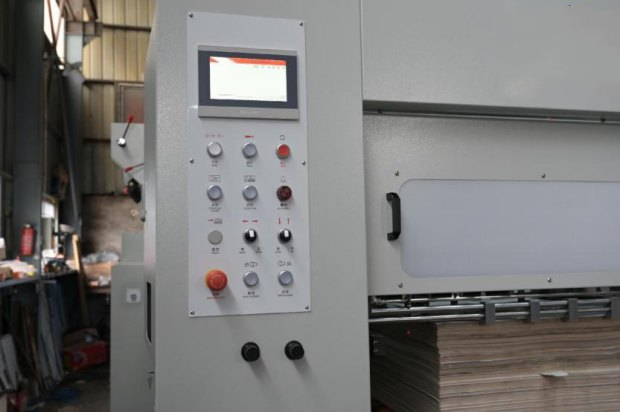

(2) The touch screen control of the paper receiving section facilitates operation and has data display, and each operation can be completed through touch
(3) The paper receiving section is equipped with a control panel for more user-friendly operation
Max.feeding paper size | 1060x750mm |
Min.feeding paper size | 400x360mm |
Max.diecutting size | 1040x720mm |
Max.stamping size | 1040x720mm |
Blank mouth | 9-17mm |
Dimensions of the inner plate of the frame | 1080x745mm |
Suitable paper specification | 80-2000gsm cardboard paper |
≤4mm corrugated paper thickness | |
Die cutting accuracy | ≤±0.1mm |
Maximum working pressure | 300t/600T(1060Z model) |
Max speed | 7000s/h |
Max paper feeding height | 1600mm ( packaging size ） |
Max paper collection height | 1400mm ( packaging size ） |
Aluminum foil length | 1200m (direction) /720( cross |
Electric heating system | 40-200℃ (adjusted) |
Aluminum foil width | 20-1020mm |
Main motor power | 11KW-18KW |
Dimension | 7262mm x 5165mm 2523mm |
Weight | 17T |
Total power | 40KW |
