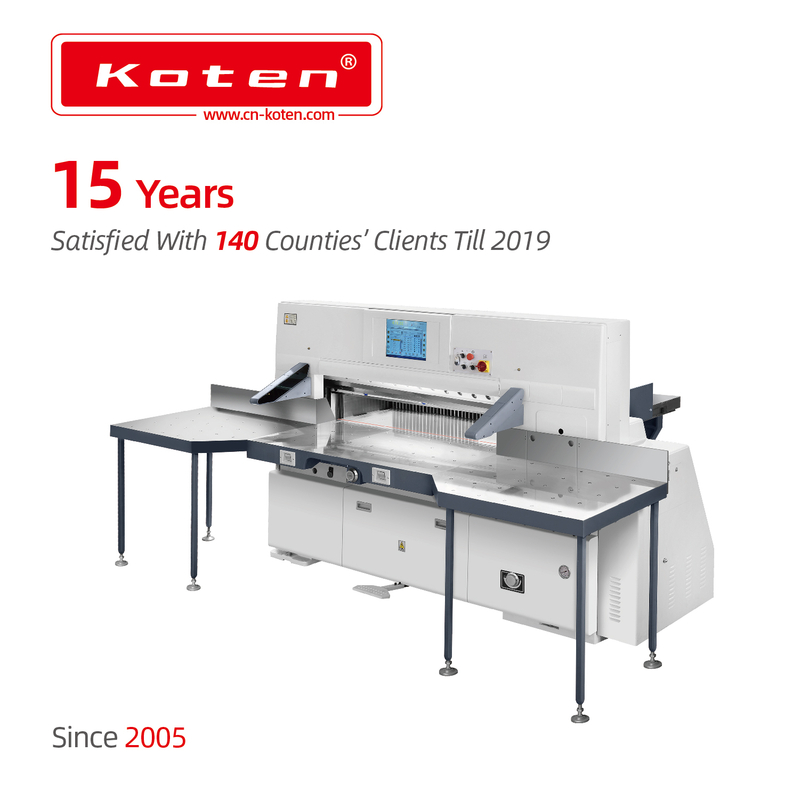

10.4 Inch Touch Screen Paper Guillotine Machine

10.4 Inch Touch Screen Paper Guillotine Machine

Name: 10.4 Inch Touch Screen Paper Guillotine Machine
Brand: Koten
Rating: 5.0 (49 reviews)

Model:
QZYK-DF
Brand:
Koten
Model:
QZYK-DF
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
T/T,L/C
Supply Ability:
50sets/month
Packaging:
By strong sea worthy wooden cases.
Delivery Time:
Within 20 days after get the deposit.
Place Of Origin:
China
Views:
446

Quantity:
Availability:





Inquire Add to Basket

Details

Introduction.
1. Control system is controlled with PLC, with large capacity, secure performance and 300, 000 hursmemory.

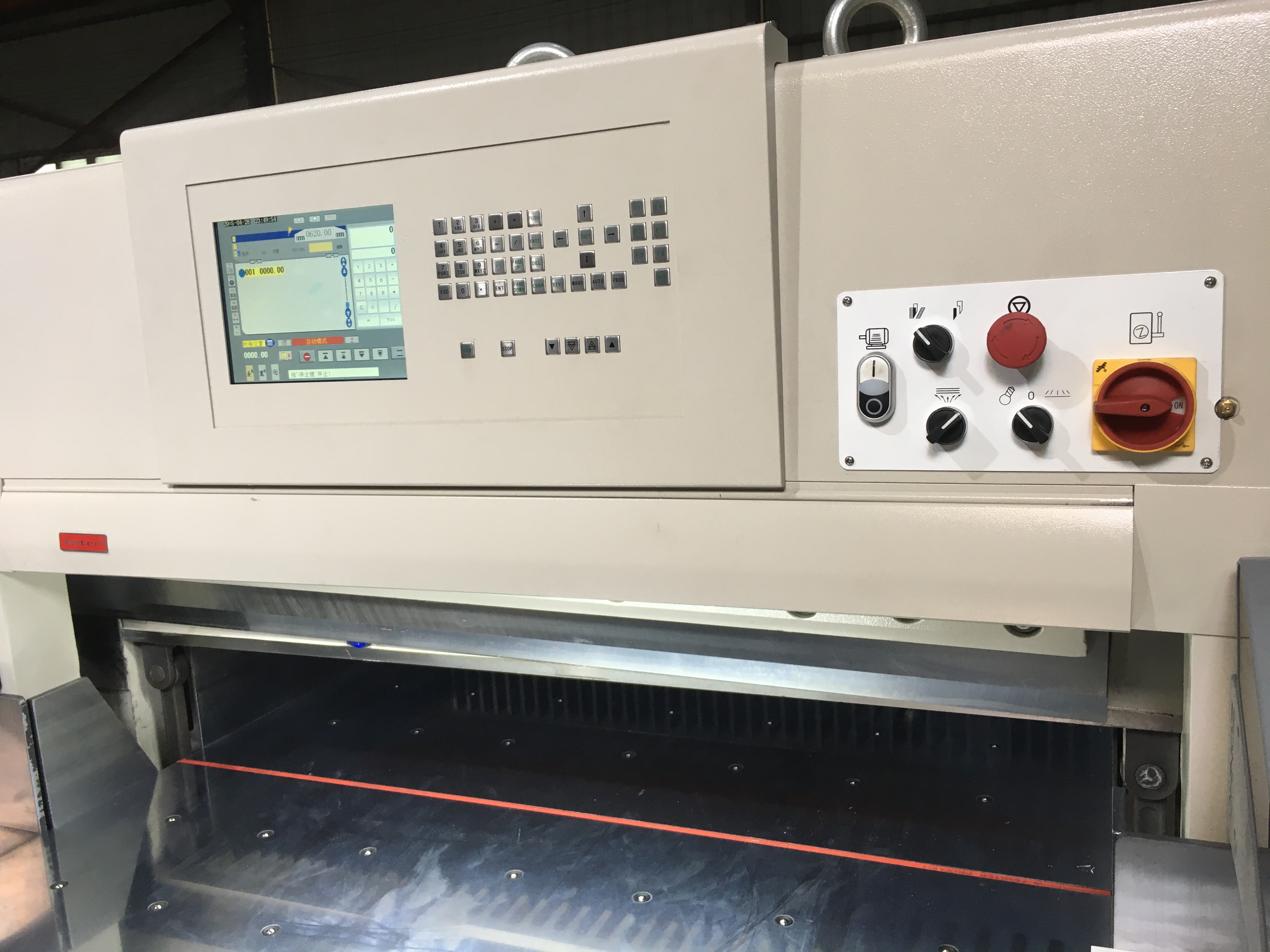

2. Display screen is 10.4-inch Korean LG touch screen, which has many language and USB interfaces.
3. Japanese servomotor is used as paper feeding system, for it is low in noise, adjustable in speed ranging from 6m/min to18m/min, and location precision up to 0.01.
4. Rapid knife change device.
5. Safey system, whose raster is up to CE standard, is higher is safety factor.
6. Major low voltage control part of the complete machine adopts imported electric appliances.
Partial pivotal parts and PLC form dual protection, which maximizes

Paper Guillotine Machine

Main Specifications.

Model	137DF	920DF	115DF	130DF
Max. Cutting Width:	1370cm	92cm	115cm	130cm
Max. Cutting length:	1450cm	110cm	115cm	130cm
Max.Cutting length:	16.5cm	11.5cm	16.5cm	13cm
Max.Clamping pressure:	40000N	30000N	40000N	40000N
Cutting speed	45Time/min	45Time/min	45Time/min	45Time/min
Main motor power:	4kw	3kw	4kw	4kw
Air pump motor:	0.75kw	0.55kw	0.75kw	0.75kw
Sending paper motor:	0.55kw	0.55kw	0.55kw	0.55kw
Weight:	4500kg	2100kg	3800kg	3800kg
Overall dimensions:	2950×1400×2000cm	230×120×165cm	275×140×191cm	280×140×191cm
Width with sideway:	287cm	242cm	265cm	280cm
/:	236.4cm	172cm	216cm	216cm
Length:	277cm	218cm	249cm	249cm
Front table length:	73cn	74.9cn	71.5cn	71.5cn
Table height:	90cm	90cm	90cm	90cm
Voltage (three-phase):	V361-399	V361-399	V361-399	V361-399
Wire size:	2.5mm 2	2.5mm2	2.5mm 2	2.5mm 2

Options.

Paper Guillotine Machine

Main Configurations.

N O.	Configuration	Brand Model	Origin
1	10.4 '' touch screen	AU	Taiwan
2	Computer	Industry Computer	shanghai
3	Motherboard chipset	Intel	United States
4	Cast	Resin sand HT250	henan
5	Worktable	No fume plated chromium worktable	China
6	Motor driver	Fuji	Japan
7	Feed screw	TPI	Taiwan
8	Guide	TPI	Taiwan
9	Bearing	UBC	Sino-US Joint
10	Switch	Schneider	France
11	The switch power	Mingwei	Taiwan
12	Locating switch	Panasonic	Japan
13	Locating switch	Schneider	France
14	Air pump	Tdense	Sino-foreign joint
15	Electrical	Schneider	France
16	Linking Post	Weidmuller	Germany
17	Bridge retifier	Toshiba of Japan	Japan
18	The turbine	Cole	tianjin
19	The blade	Asky	shanghai
19	Sealing ring	Switzerland	Switzerland
20	Hydraulic pump	OT	Italy

Koten Machines Container Loading.
Paper Guillotine Machine packaging
140 Countries Clients Who Has Koten Brand Machines Till 2019.
Paper Guillotine Machine customers

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
Paper Guillotine Machine factory
