12000pcs/h Flute Lamination Machine For Both Cardboard and Corrugated Carton Lamination.

Quantity:
  • NB-H
  • Koten
  • NB-1450H/1650H/1950H
  • Negotiable
  • One Set
  • T/T
  • 30sets/month
  • By strong wooden cases.
  • Within 45 days
  • China
  • 578

4-08

downLoadImg (5)

Features

1. It is both suitable for corrugated paper and cardboard laminating, and cardpaper and cardpaper laminating.
2. Feeding parts adopts servo motors control, which can adjust the bottom paper and top paper automatically, intelligent adjustable.

3. Famous brand electrical parts which guarantee machine with steady running and long life using.

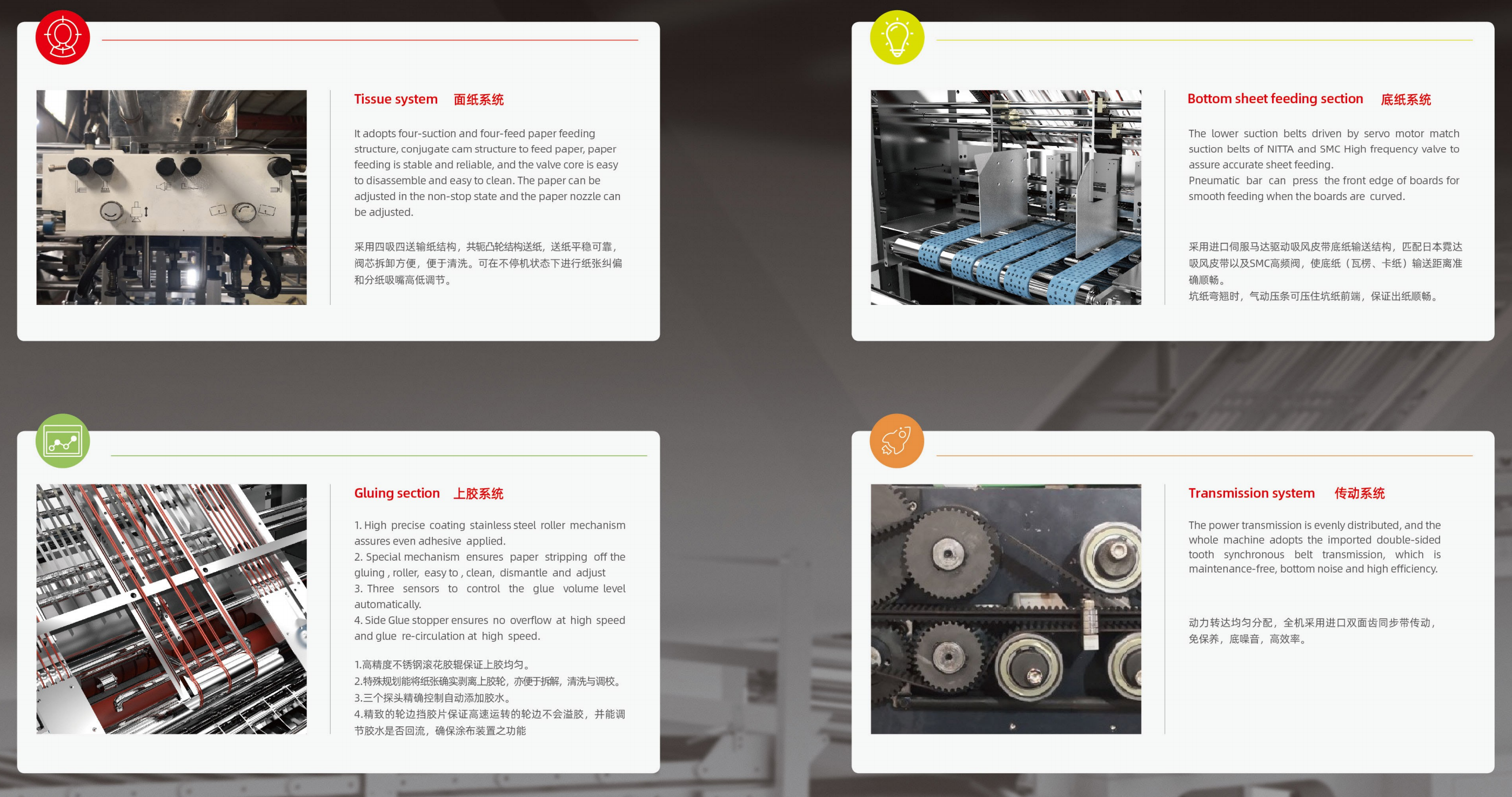

1610248561

 Main Specifications.

Model

NB-1450H

NB-1650H

NB-1950H

Max. Paper Size

1450x1450mm

1650x1650mm

1950x1650mm

Min.Paper Size

450x450mm

450x450mm

450x450mm

Suitable Paper

Top Paper 150-600gsm


Bottom Paper 0.5-12mm(Flute A,B,C,D,E,etc, 4ply corrugated paper, cardboard more than 300gsm)

Laminating Precision

+0.15mm

Max. Speed

12000pcs/h. 150m/min.

Main Power

22kw

22kw

22kw

Machine Size

13.5x2.4x2.4m

14.5x2.6x2.4m

17x2.9x2.6m

Height For Bottom Paper

400mm

Height For Top Paper

1800mm
