BFCI-A-4
Koten
BFCI-A-4
Negotiate
1
T/T, L/C At Sight
30 sets/month
By strong sea worthy package
Within 30 days after receipt of the deposit.
China
66575
| Quantity: | |
|---|---|

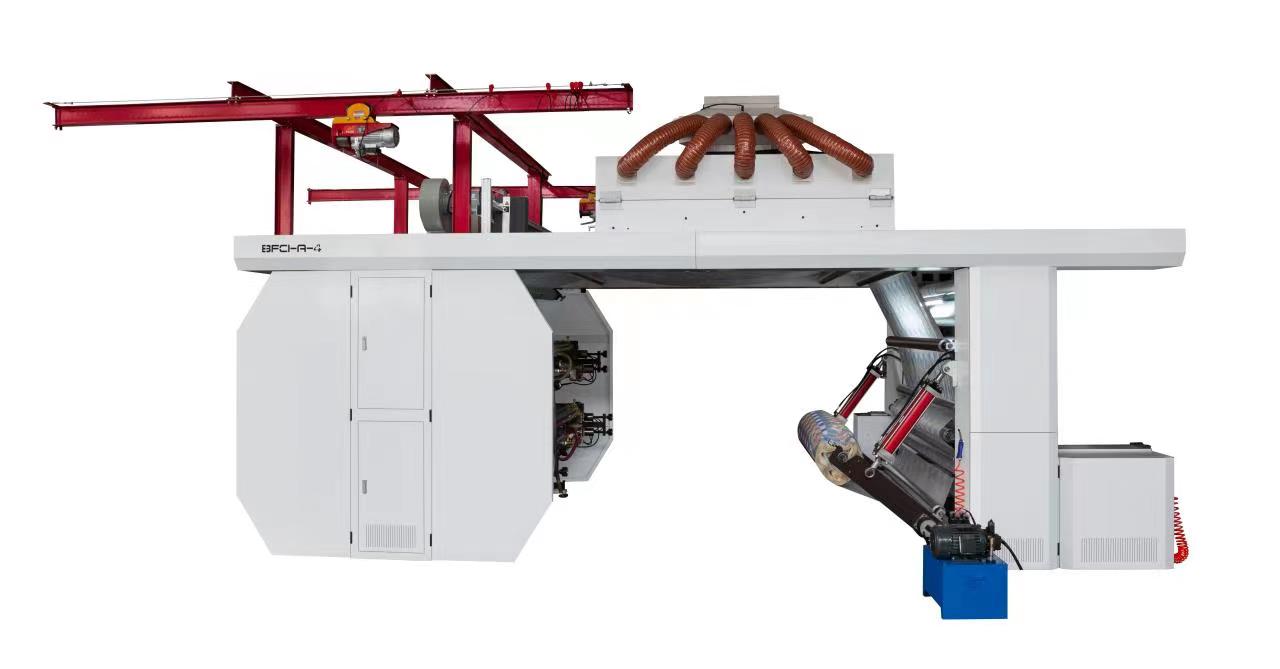

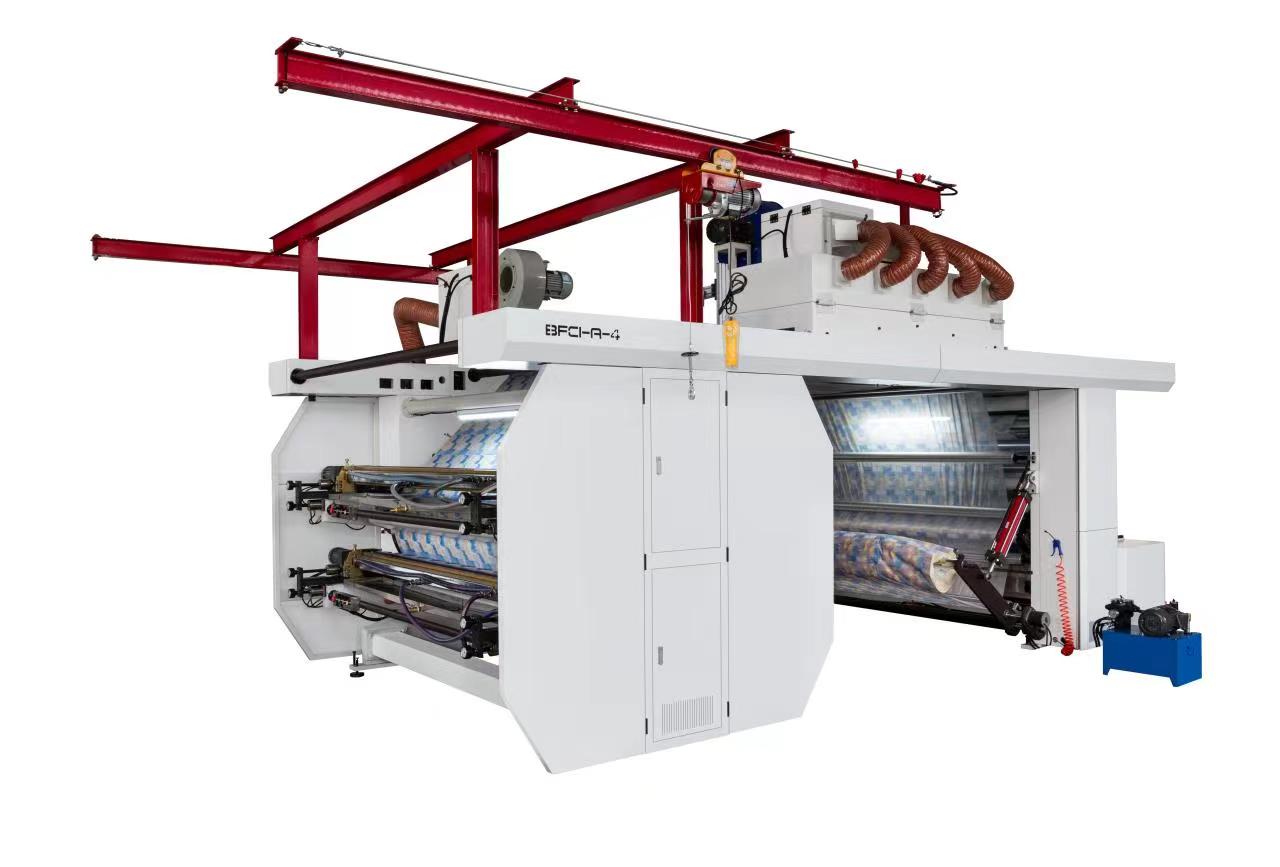

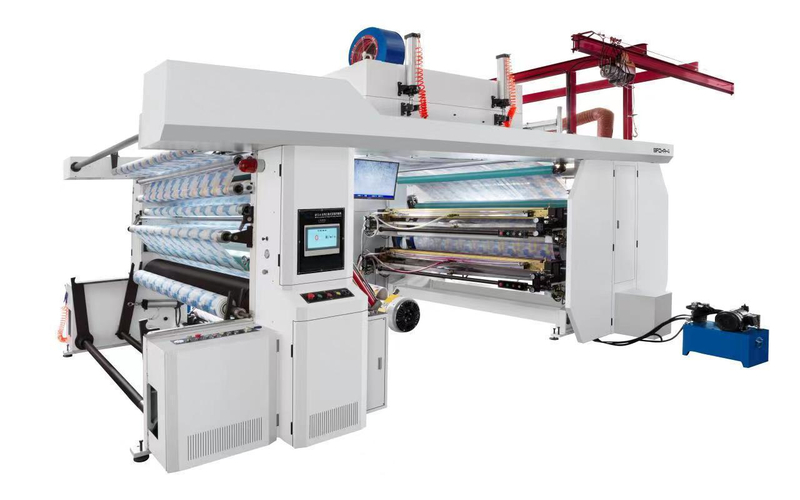

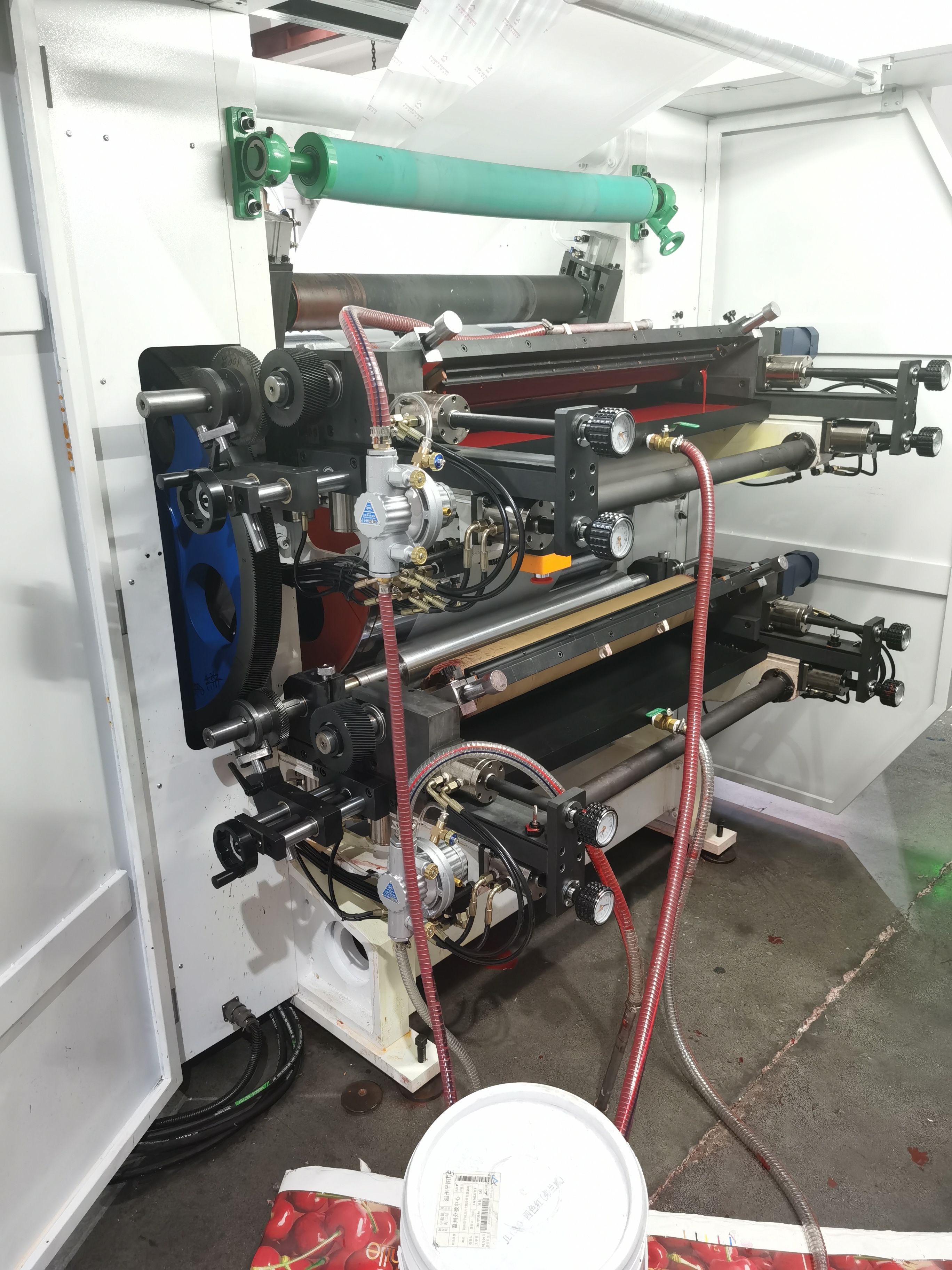

4 6 Colors CI Flexo Printing Machine
1.Suitable roll materials of excellent printing performance:
BOPP, PVC, PE, Breathable PE, NY,Roll Paper、Non-woven fabric and so on. It will be printed with multicolor continuous well.
2.Machine configuration:
1）Adopt PLC and variable frequency drive control system

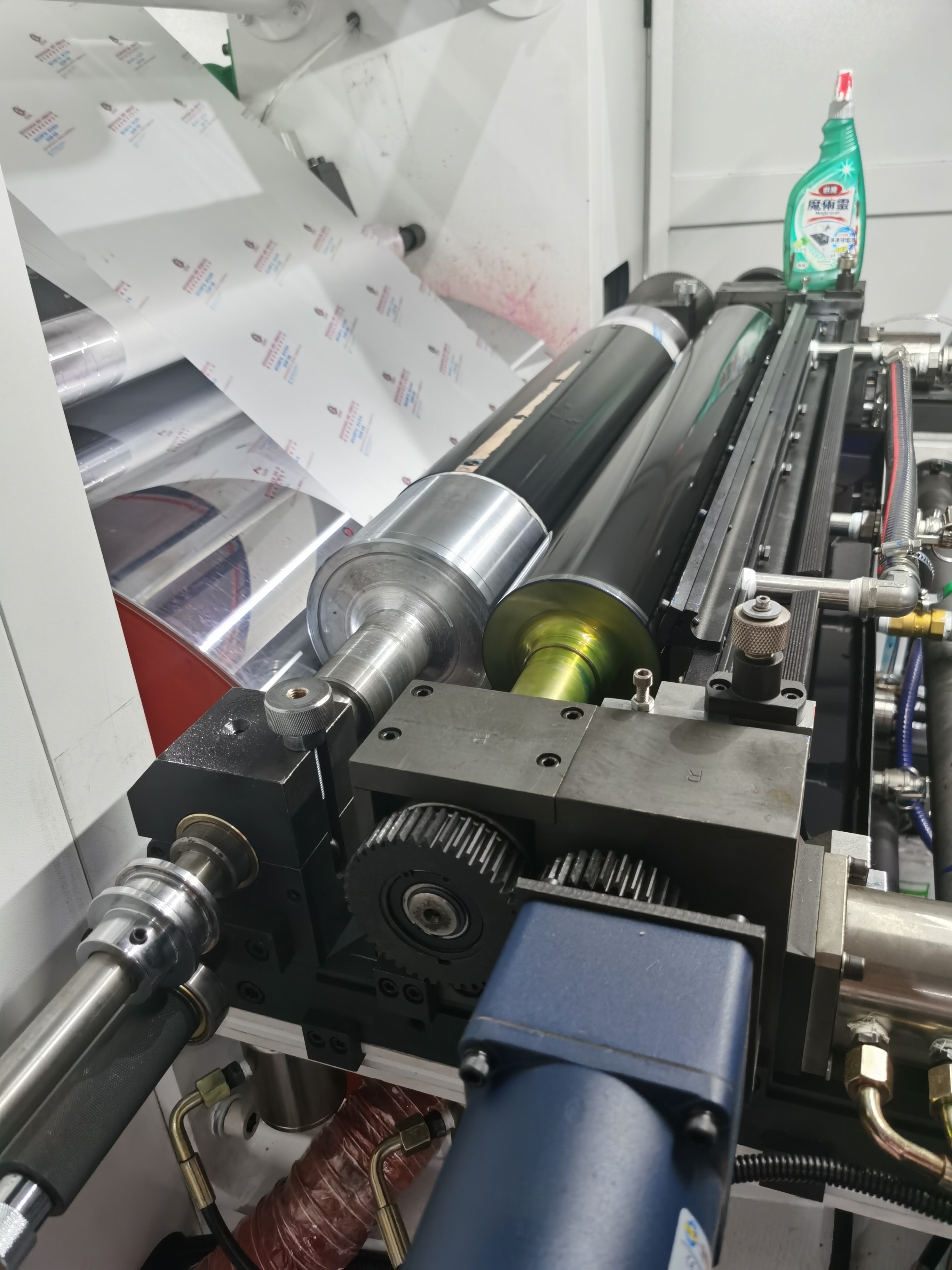

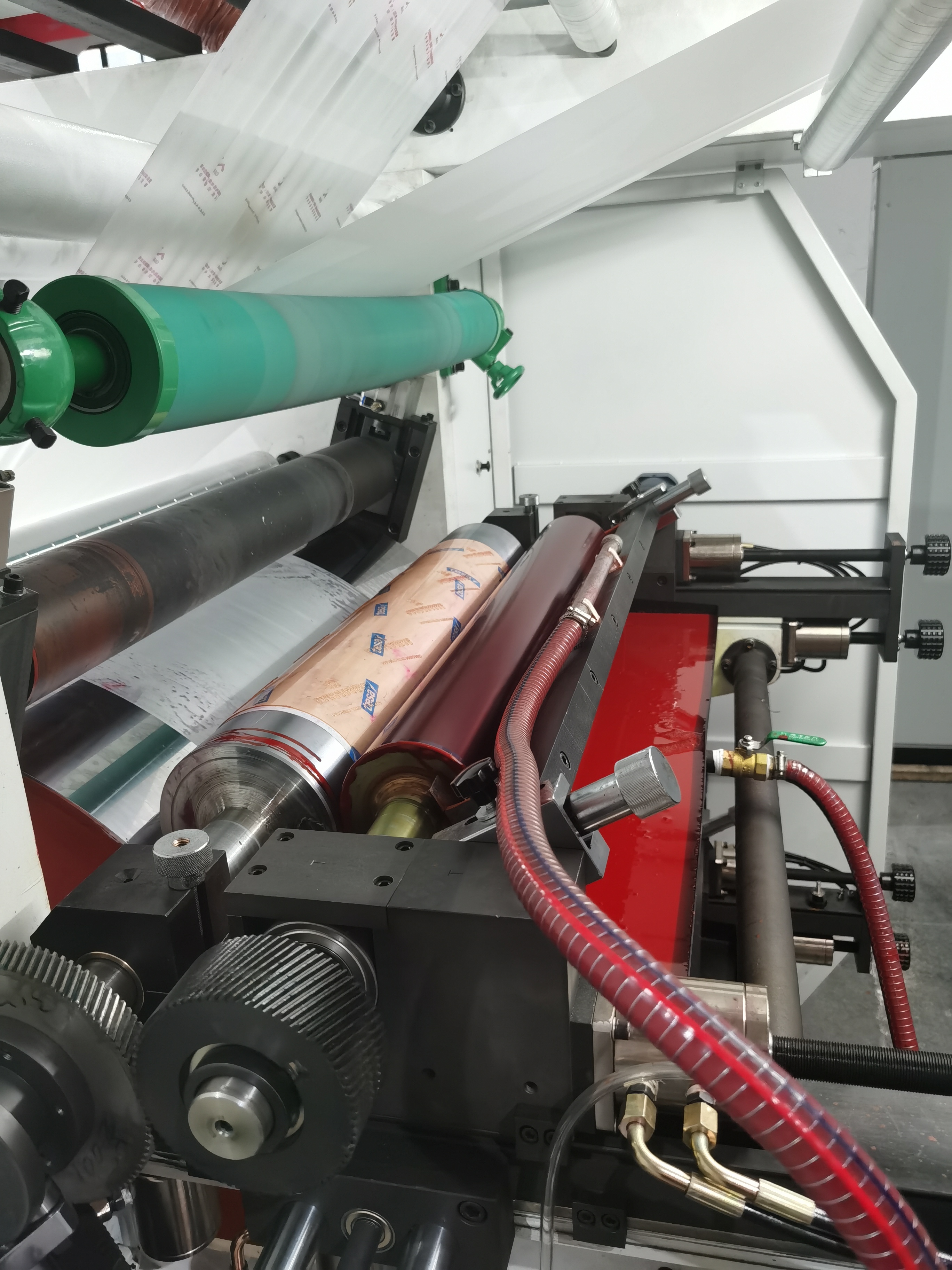

2）Ink system with high precision ceramic anilox roller
3）Enclosed doctor blade with anilox roll
4）The temperature of central drum can be constant.

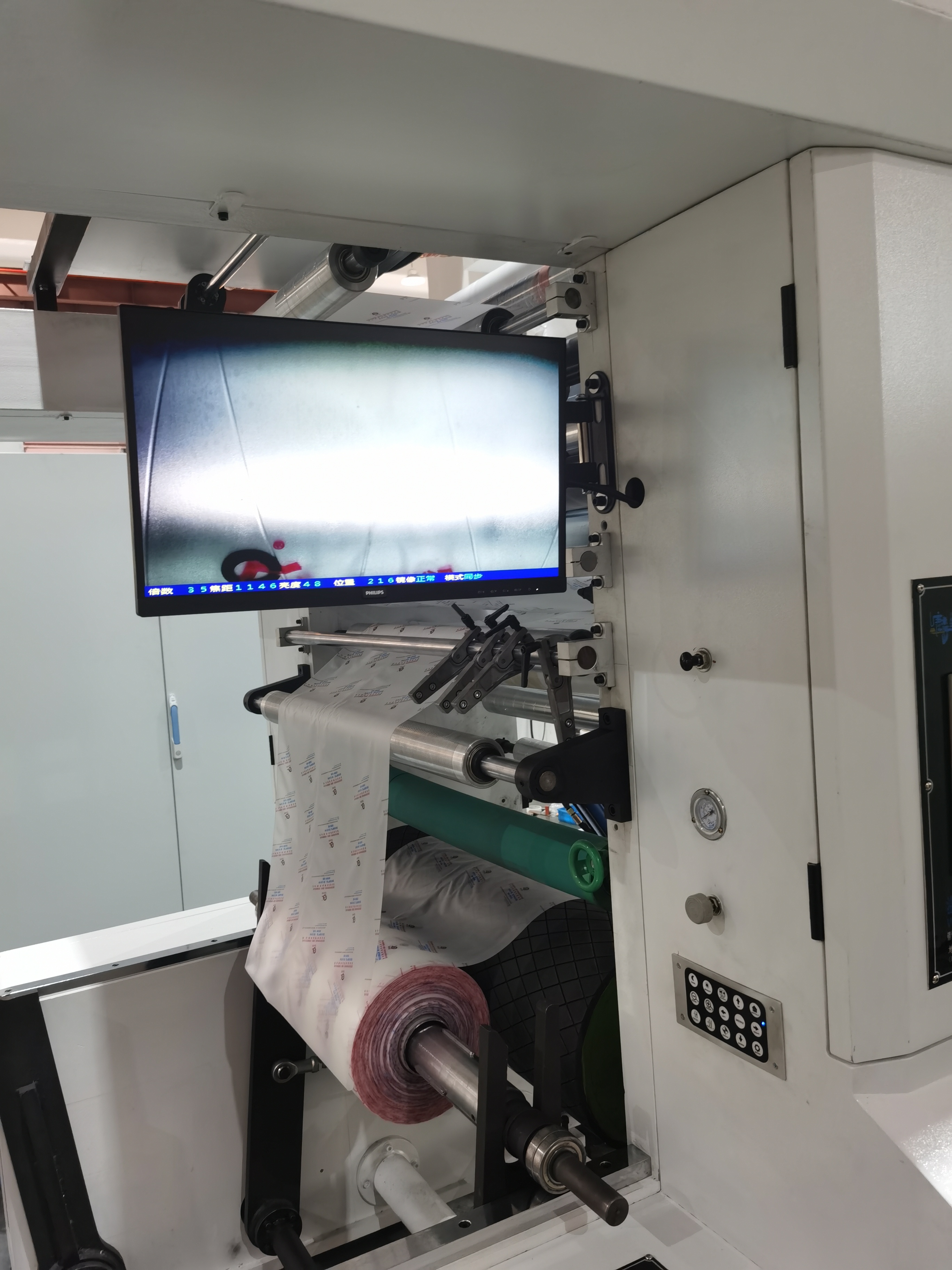

5）HD computer image detection, it is easy to control the printing quality
6）High precision tension controller sensor, to make sure the tension of printing is stable.
7）High performance EPC(Edge position controller), to ensure the linear stability of the substrate and rewinding surface is level;
8） Independent dry system,high efficiency , can also choose the heat conduction oil or steam heating mode
9）Manual register and tension controller
10）Automatic ink and clear ink system
Model | BFCI-A-600mm | BFCI-A-800mm | BFCI-A-1200mm | BFCI-A-1600mm | |||
Material width | 600mm | 800mm | 1200mm | 1600mm | |||
Printing width | 570mm | 770mm | 1170mm | 1570mm | |||
Printing colors | 4 colors（One side） | ||||||
Printing length | 345-900mm | ||||||
Roller diameter | Ф600mm or Ф1200mm | ||||||
Machine speed | 50-200m/min | ||||||
Printing speed | 50-180m/min(Depend on the materials) | ||||||
Register precision | ±0.15mm | ||||||
Register type | By hand | ||||||
Weight(Kg) | 7000 | 7800 | 8500 | 10000 | |||
Dimension(m) | 6.2*2*3.05 | 6.2*2.2*3.05 | 6.2*2.6*3.05 | 6.2*3*3.05 | |||
Voltage | 3phase 380V 50HZ | ||||||
Optional | 1、UV dryer 2、On-line unit 5、Slitting unit 6、Lamination unit 7、Corona treater unit | ||||||
