HQJ-A4
KOTEN
HQJ-A4
Negotiate
One Set
T/T, L/C at sight
30sets/month
By strong seaworthy export packing
Within 30 days after get the deposit.
China
6165
| Quantity: | |
|---|---|

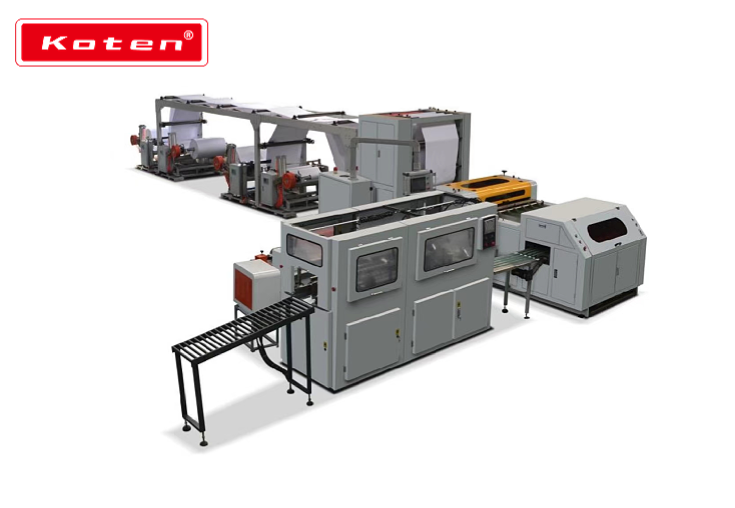

A4 Paper Cutting Packaging Line
This machine is specialist for horizontal and vertical cutting paper rolling materials to A4 ,A3, A2 size etc .it can be with 1 roll, or 2rolls, or 4 rolls etc.
Model | HQJ-1100D |
Max unwinding diameter | Φ1200mm |
Reference width of cutting paper | 1100mm |
Cutting length | A3 A4, etc |
Cutting speed | 10-120 times/min |
Cutting precision | ±0.2mm |
Voltage: | 22KW |
Main function | 1) 4 rolls loading 2) With paper stacker 3) With round cutter for slitting 4) With belt transferring 5) With packing unit automatic |
Description | Specification | Qty | Brand name |
Control system | |||
PLC | 1unit | INOVANCE | |
7” touch screen | TPC1061Ti | 1Unit | Taiwan Wenview |
Tension control | Full automatic | By PLC | |
Meter counting | Full automatic | By PLC | |
Automatic stop | Full automatic | By PLC | |
Switch | 1Unit | Japan OMRO | |
Pneumatic | 1Set | Eastech | |
Low voltage electronics | 1set | Schneider | |
High voltage electronics | 1set | Delixi | |
Paper label insert device | 1unit | Shenzheng | |
Drive system | |||
Steel body | Thickness 10mm | 1set | Shanghai Baosteel |
Guillotine knife | 1 set | Shanghai | |
Rubber press roller | Φ85*1150mm | 2 unit | Imported silicon rubber, |
Aluminum roller | Φ75*1150mm | precision G1.6 grade | |
Servo motor | 4.4KW | 1set | INOVANCE |
Traction speed motor | 3KW | 1set | Shanghai Kuayue |
Traction speed motor | 1.5KW | 1set | Shanghai Kuayue |
Frequency inventor | 3KW | 1Set | INOVANCE |
Frequency inventor | 1.5KW | 1Set | INOVANCE |
Stacking unit | 1set | ||
Brake | 10KG | 2 unit | HUA GUANG |
Bearing | 1 sets | HRB | |
A4 Paper Cutting Packaging Line
This machine is specialist for horizontal and vertical cutting paper rolling materials to A4 ,A3, A2 size etc .it can be with 1 roll, or 2rolls, or 4 rolls etc.
Model | HQJ-1100D |
Max unwinding diameter | Φ1200mm |
Reference width of cutting paper | 1100mm |
Cutting length | A3 A4, etc |
Cutting speed | 10-120 times/min |
Cutting precision | ±0.2mm |
Voltage: | 22KW |
Main function | 1) 4 rolls loading 2) With paper stacker 3) With round cutter for slitting 4) With belt transferring 5) With packing unit automatic |
Description | Specification | Qty | Brand name |
Control system | |||
PLC | 1unit | INOVANCE | |
7” touch screen | TPC1061Ti | 1Unit | Taiwan Wenview |
Tension control | Full automatic | By PLC | |
Meter counting | Full automatic | By PLC | |
Automatic stop | Full automatic | By PLC | |
Switch | 1Unit | Japan OMRO | |
Pneumatic | 1Set | Eastech | |
Low voltage electronics | 1set | Schneider | |
High voltage electronics | 1set | Delixi | |
Paper label insert device | 1unit | Shenzheng | |
Drive system | |||
Steel body | Thickness 10mm | 1set | Shanghai Baosteel |
Guillotine knife | 1 set | Shanghai | |
Rubber press roller | Φ85*1150mm | 2 unit | Imported silicon rubber, |
Aluminum roller | Φ75*1150mm | precision G1.6 grade | |
Servo motor | 4.4KW | 1set | INOVANCE |
Traction speed motor | 3KW | 1set | Shanghai Kuayue |
Traction speed motor | 1.5KW | 1set | Shanghai Kuayue |
Frequency inventor | 3KW | 1Set | INOVANCE |
Frequency inventor | 1.5KW | 1Set | INOVANCE |
Stacking unit | 1set | ||
Brake | 10KG | 2 unit | HUA GUANG |
Bearing | 1 sets | HRB | |
