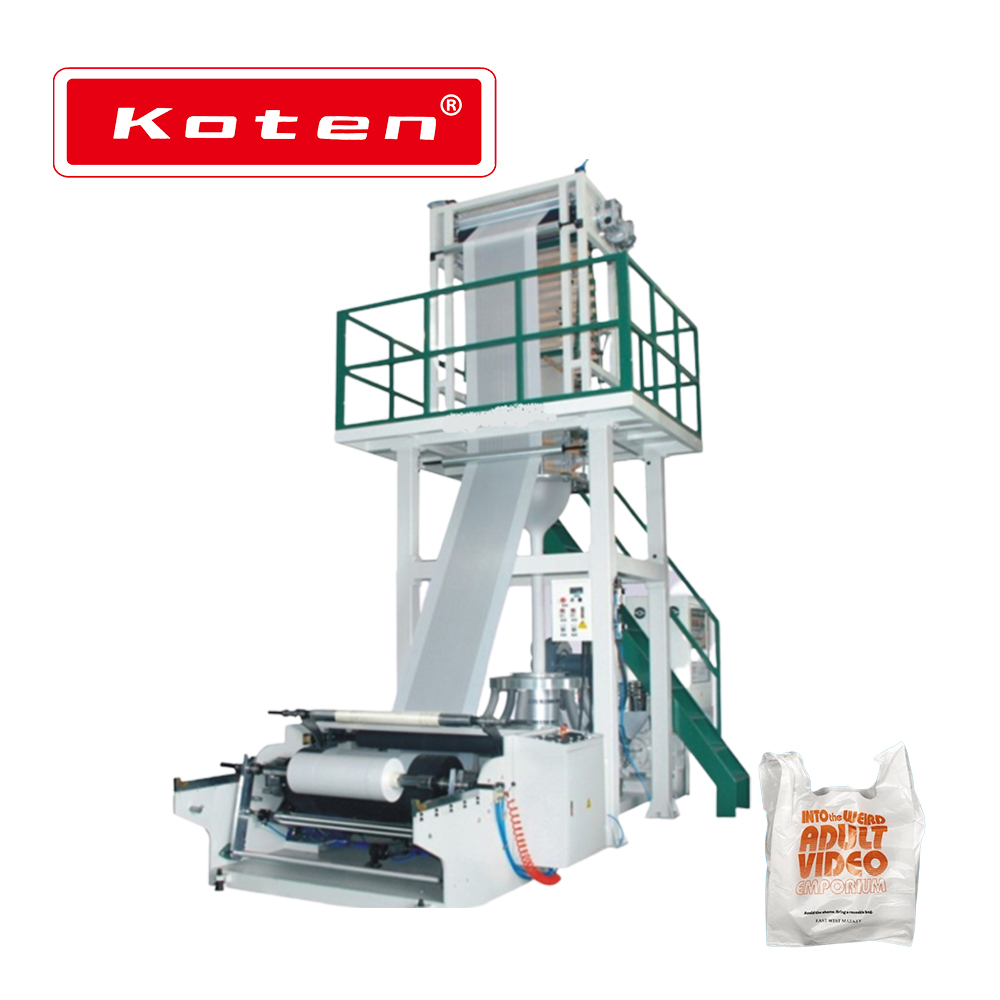

ABA1200
Koten
ABA1200
Negotiate
One set
T/T, L/C At Sight
30 sets/month
By strong sea worthy wooden cases.
Within 30 days after receipt of the deposit.
China
5698
| Quantity: | |
|---|---|
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home.

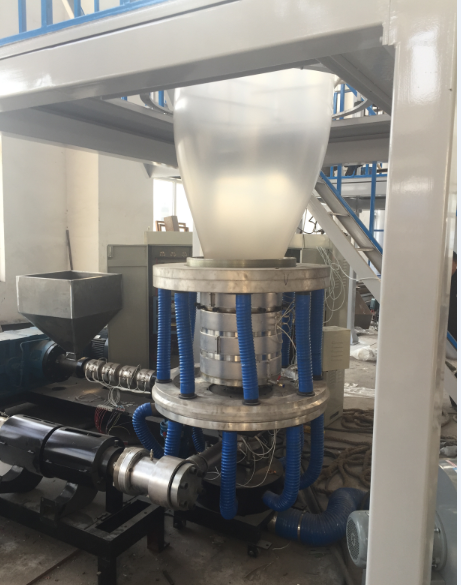

Extruder
Screw Dia. (mm): ф50×2
Screw & Barrel L/D Ratio: 32: 1
Barrel: 38 CRMOALA ALLOY
Barrel Heater Capacity (Kw): 10*3
Barrel Auto Thermo Control: 4 Points
Cooling Blower: 5.5kw
Driving Motor: 18.5Kw×2 (Siemens Motors with inverter type)
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 3
Dosing system
Gravimetric blender 2 (2 materials will or master batch will be mixed fixed % on each screw feeder),

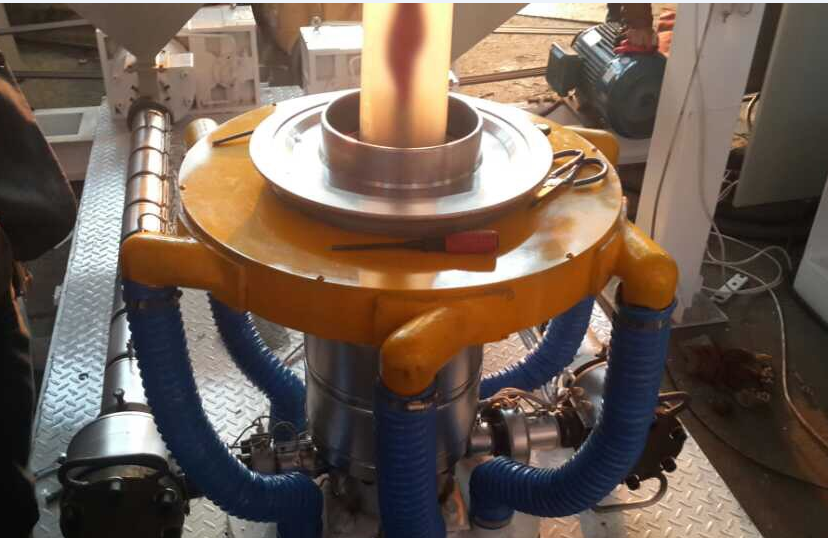

Die:Rotary die device
Die Dia. (mm): φ100/250
Die Heater Capacity (Kw): 10
Die Auto Thermo Control: 1 Point
Air Ring: 1 Set

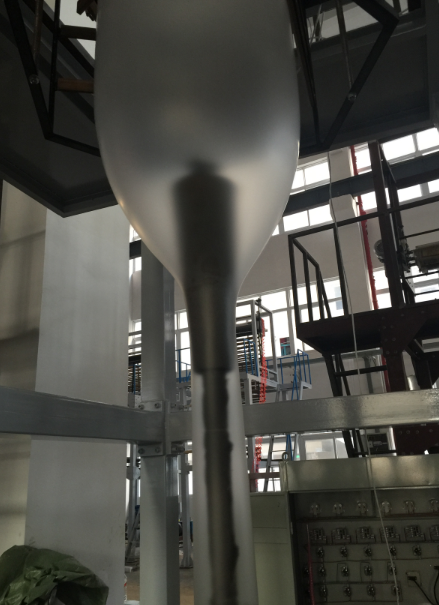

Bubble Basket: Hexagon Type
Take-up Unit:
To be possible to moving the tower 2.2m
Pinch Roller- Embossing Roller
Take-up Motor with Inverter Control: AC: 1.5kw

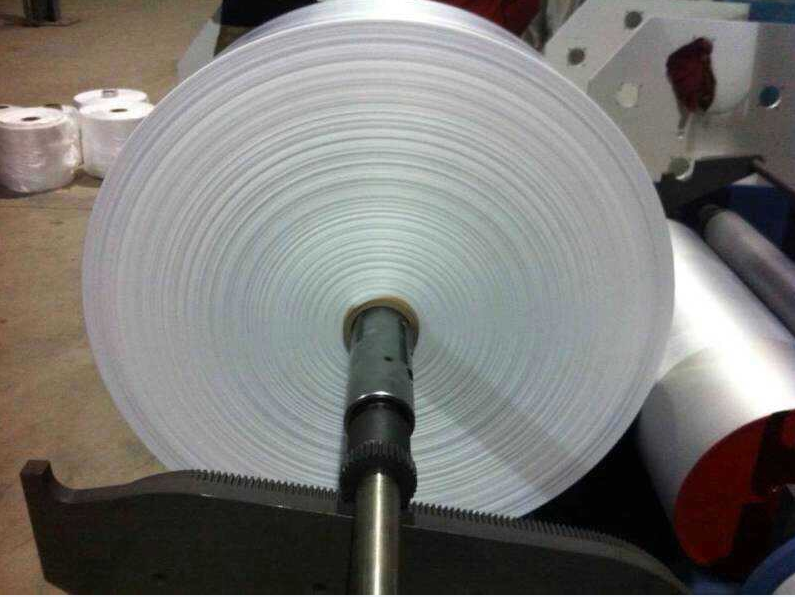

AUTO Winding Unit
EPC (Edge position control)
Hydraulic unloading device
Triangle folder
Slit and seal knife,
Automatic double winder,
Tension control system
Max. Width (mm): 1000
Max. Wind-up roll dia. (mm): φ 1000
Winding Motor: 2.2KW motor with inverter *2pc
with autotension control and inverter
Flat cutting knives and film opening knives
Air shfts= 4 pcs
Banana rollers = 2 pcs 2
Rewinding Speed: 10-80m/min
Model | ABA 1200 |
Screw Diameter | Ф50×2 |
Screw Ratio L/D | 32：1 |
Screw Speed | 15-120r/min |
Main Motor Power | 18.5Kw×2 |
Extrusion Output | 120kg/h |
Range of Die | Ф100/250 |
Single-sided Thickness of Film | 0.008-0.15mm |
Max. Folding Width of Film | 1000mm |
Electric Total Capacity | 50Kw |
Overall Dimension | 6500×3200×5080mm |
Weight of Machine | 3.5T |
