KT-JD250 Double-decker
KOTEN
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy wooden cases.
Within 30 days after receipt of the deposit.
China
3724
| Machine size: | |
|---|---|
| Machine speed: | |
| Quantity: | |

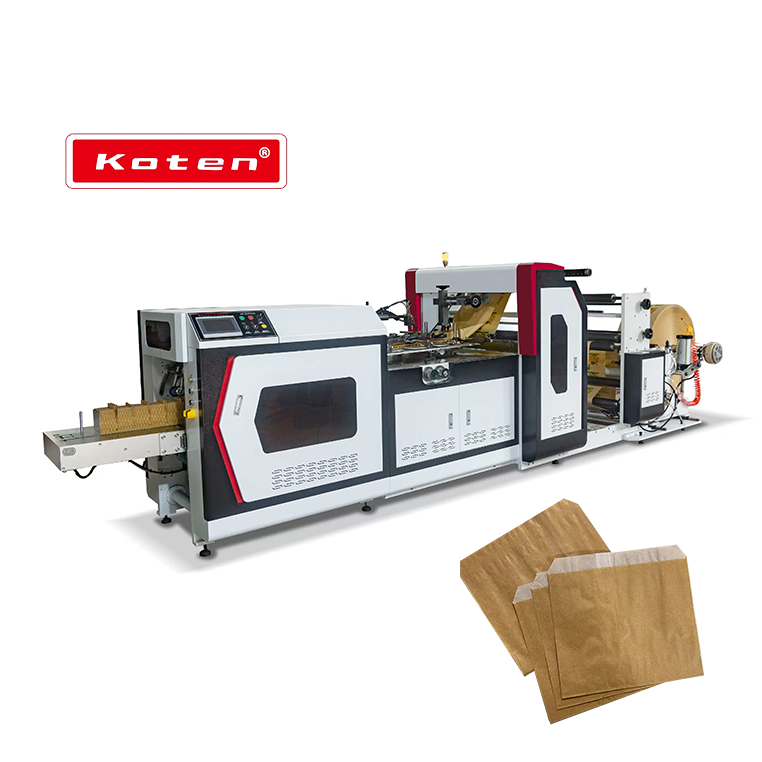

Auotomatic High-Speed pointed Bottom Paper Bag Machine

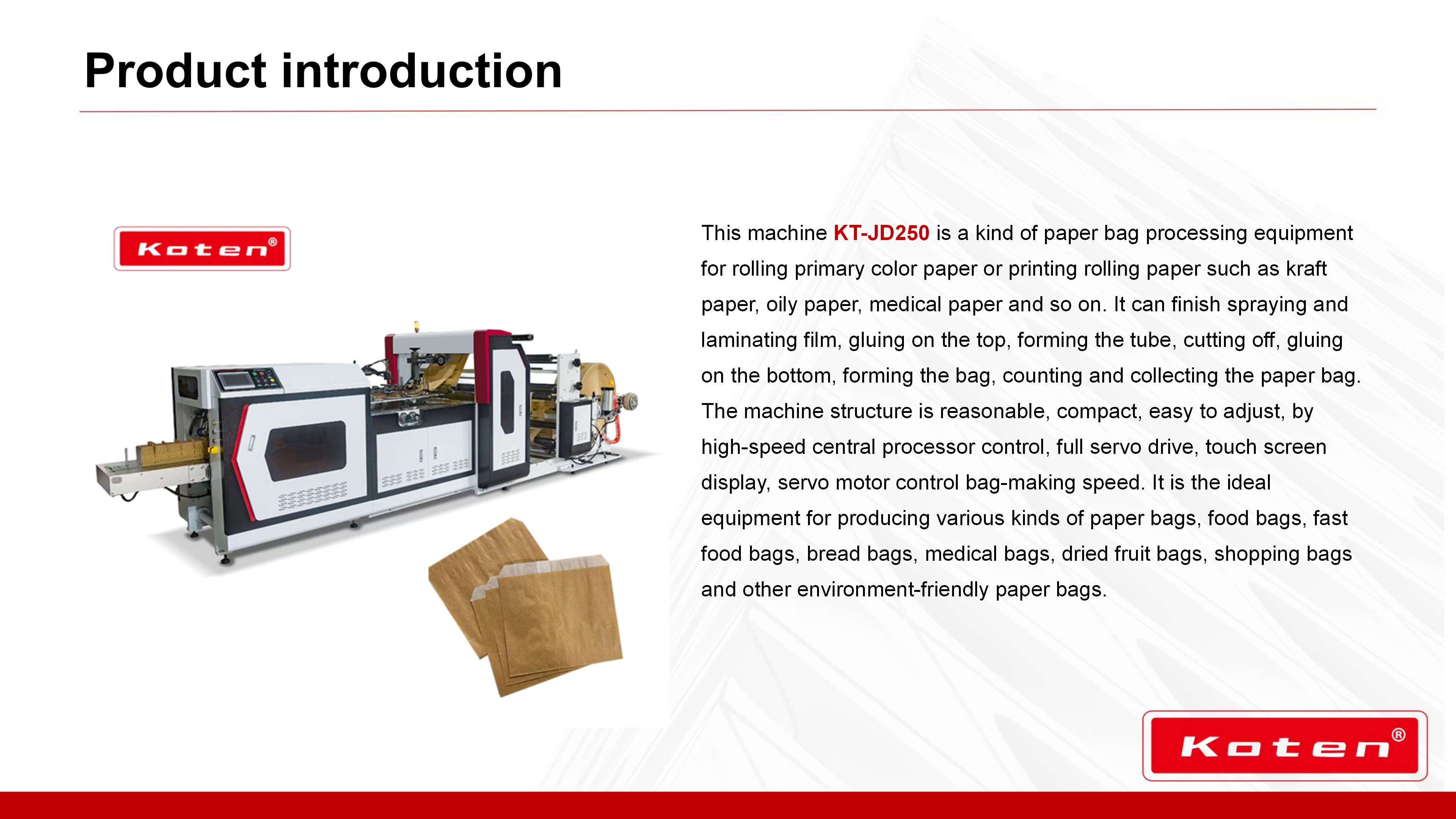

This machine KT-JD250 is a kind of paper bag processing equipment for rolling primary color paper or printing rolling paper such as kraft paper, oily paper, medical paper and so on. It can finish spraying and laminating film, gluing on the top, forming the tube, cutting off, gluing on the bottom, forming the bag, counting and collecting the paper bag. The machine structure is reasonable, compact, easy to adjust, by high-speed central processor control, full servo drive, touch screen display, servo motor control bag-making speed. It is the ideal equipment for producing various kinds of paper bags, food bags, fast food bags, bread bags, medical bags, dried fruit bags, shopping bags and other environment-friendly paper bags.
Model | KT-JD250 |
Cutting Length (C) | 120-415 mm |
Bag Length(L) | 110-405 mm |
Bag Width (W) | 70-250 mm |
Gusset Thickness (H) | 0-120 mm |
Standard Flap (P) | 17 mm |
Paper Thickness | 30-80 g/㎡ |
Paper Roll Width | 160-760 mm |
Max.Roll Diameter | 120-415 mm |
Reel Inner Diameter | 110-405 mm |
Model | KT-JD250 |
Pasted With Film | YES |
Film Thickness | 0.03-0.05 mm |
Film Width | 50-210 mm |
The Max Film Diameter | 500 mm |
Film Inner Diameter | 76 mm |
Speed | 100-600 pcs/min |
Working Gas | ≥0.12 m³/min 0.5-0.8 mpa |
Total Power | 380V 3phase 4line 12KW |
Total Weigth | 3500KG |
Machine Dimensions | 5850*1600*1450mm |
