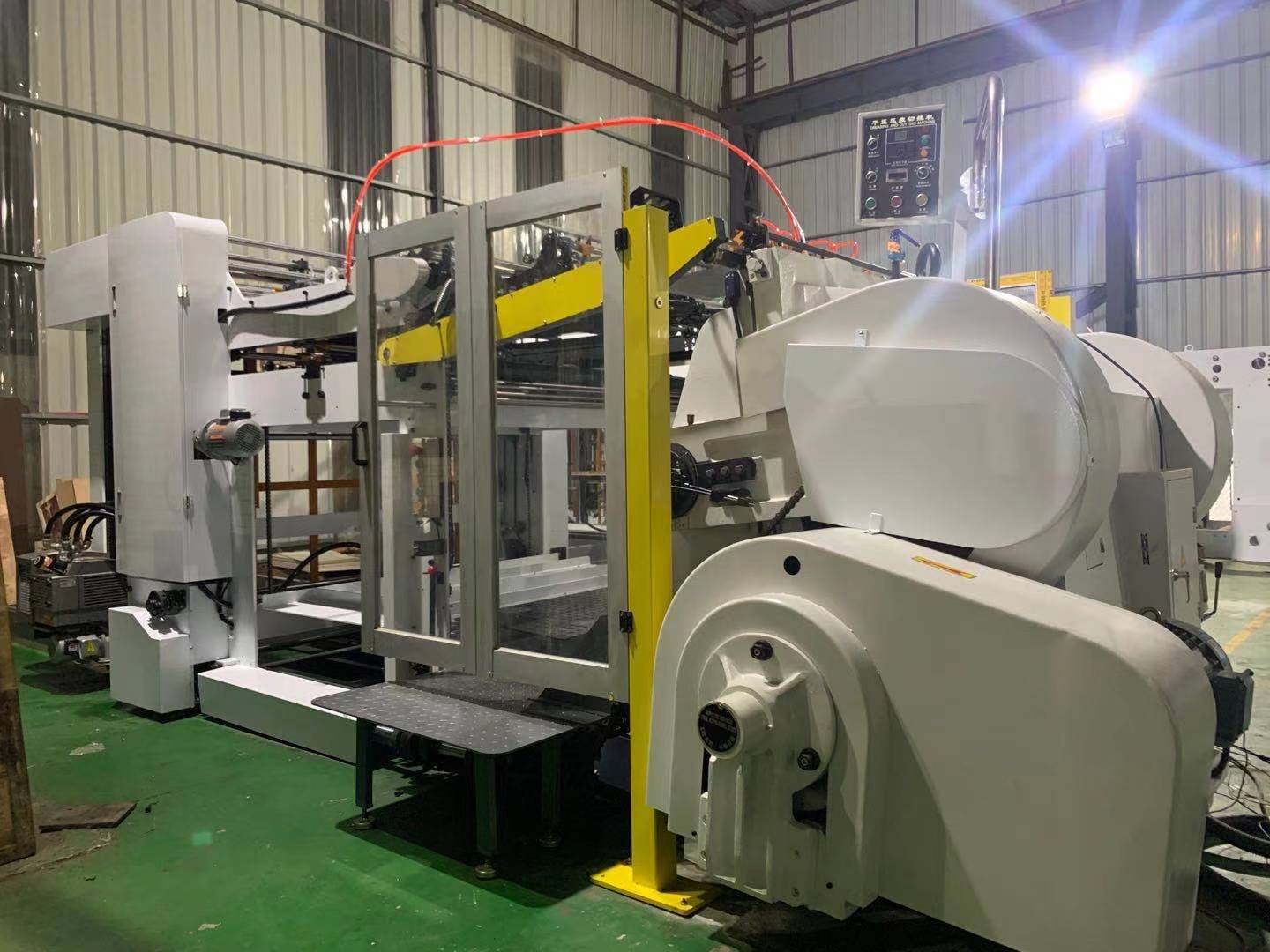

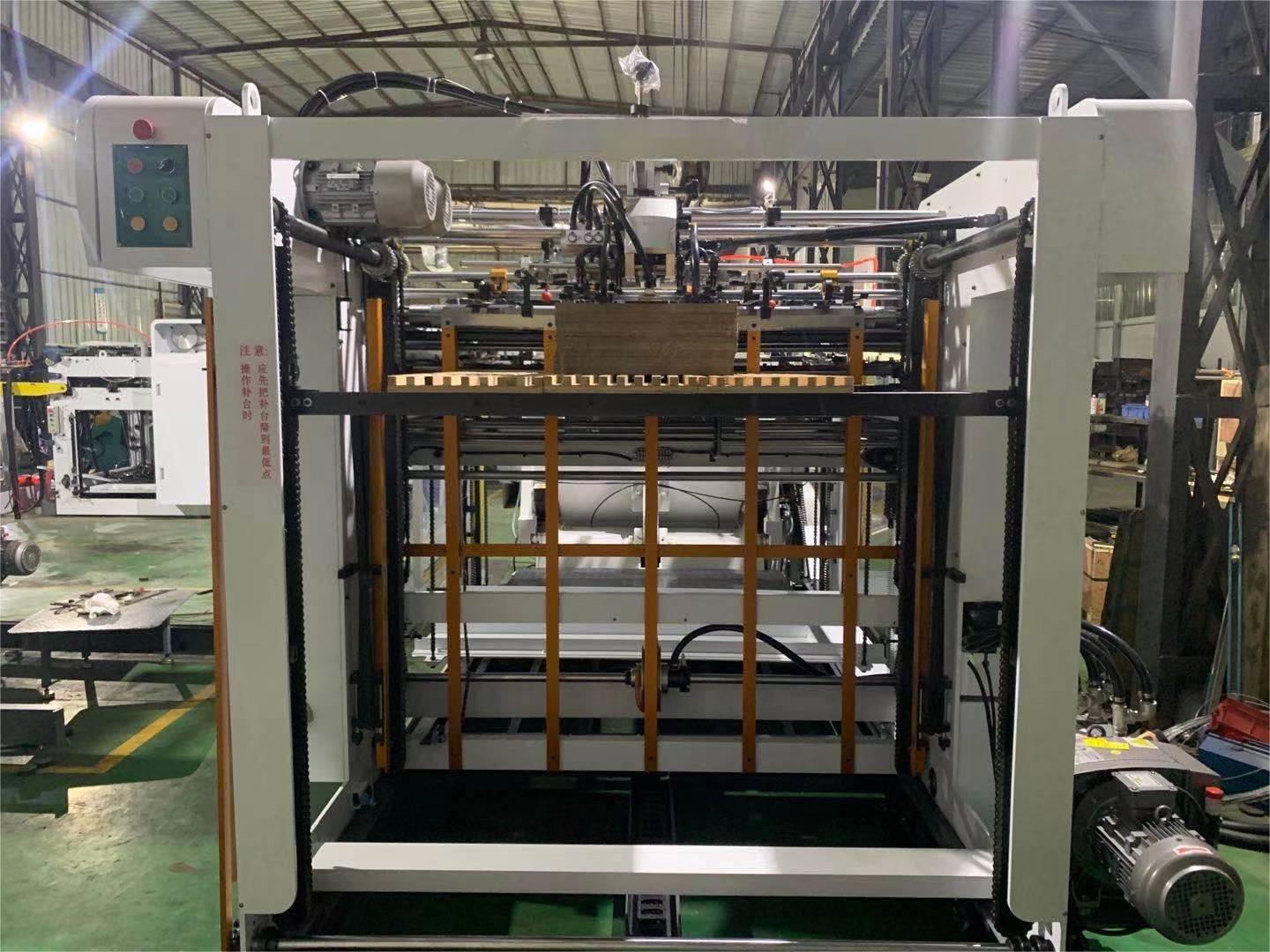

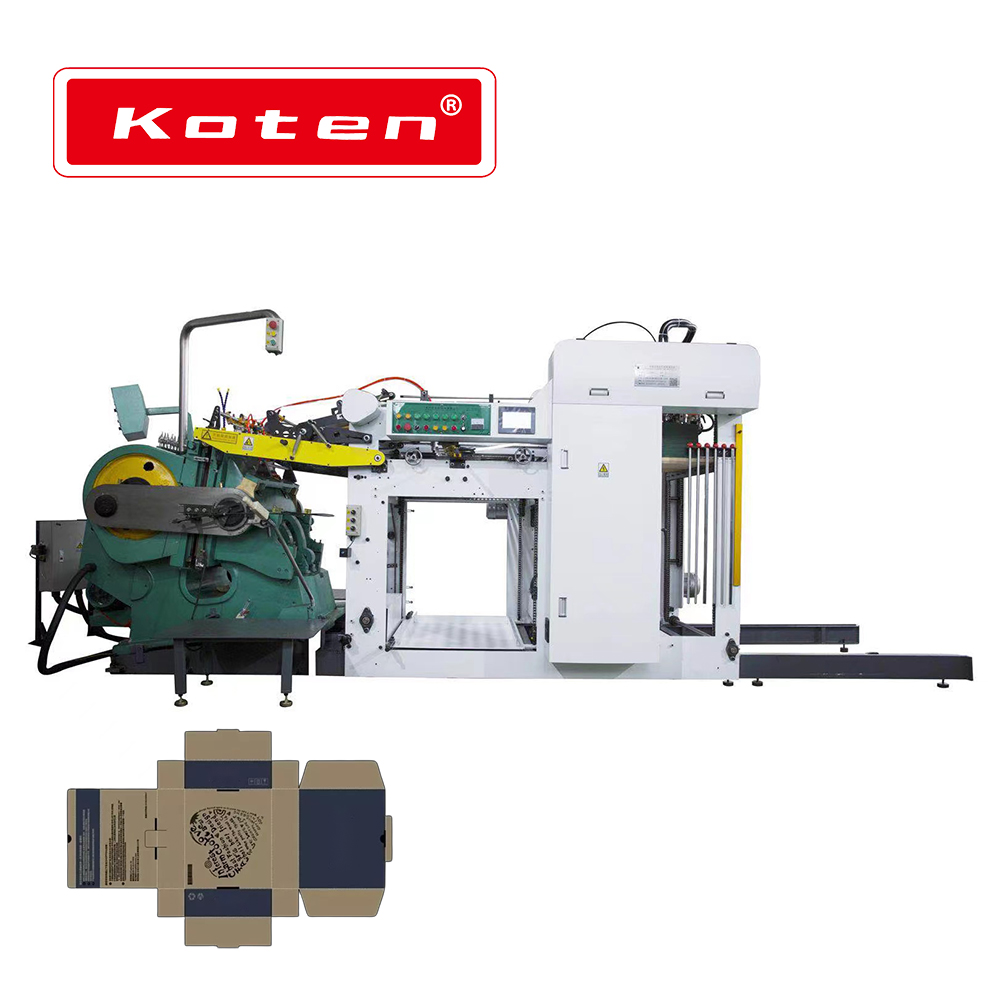

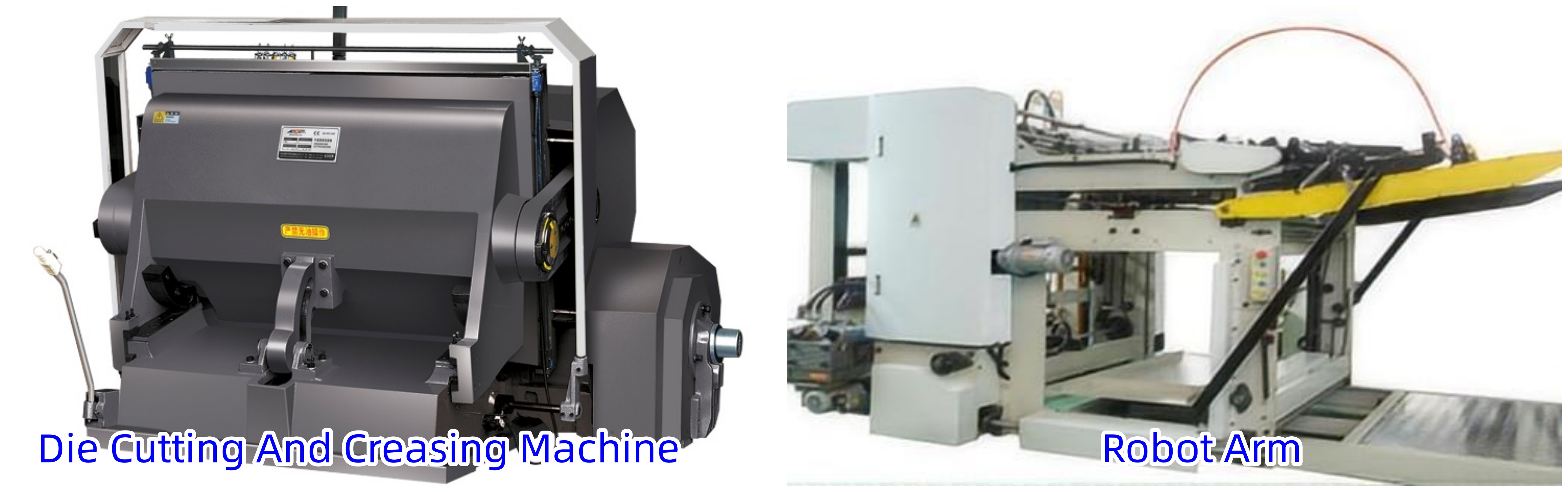

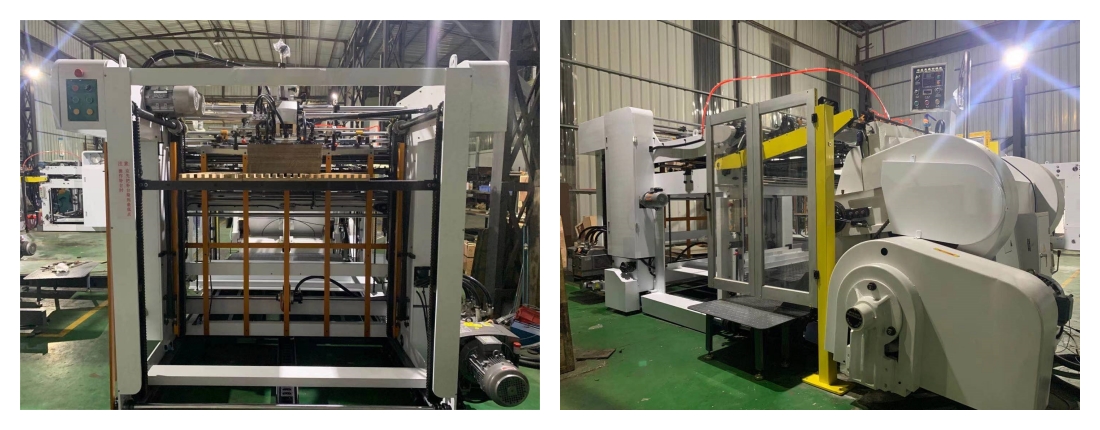

Auto Feed Auto Collect Die Cutting Machine With Robot Arm
ZML-1500
The die cutting machine is an equipment especially designed for cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.
Features:
1. Auto Feed Auto Collect With Robot Arm.
2. With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
3. Three functions: single sheet cutting, continuous cutting, delay cutting.
4. Main body is made of high quality integrated cast iron, with high strength and rigidity.
5. Suitable for cutting paper board, corrugated paper.
6. Automatic oil pump.
7. Infrared safety.
ML-1500C die cutting and creasing machine | |||
Max Sheet Size | 1500*1040mm | Rule Length | <50m |
Dimension | 2550*2100*1800mm | Weight | 7500Kg |
Speed | 16±2/Min | Motor Power | 5.5KW |
Robot arm | |||
Die Cutting Machine Layout | 1530*1050mm | Die Cut Paper Thickness | 0.2-0.6mm |
Min. Die Cutting Size | 540*660mm | Machine Weight | 2500kg |
Max. Die Cutting Size | 1480*980mm | Machine Size | 7550*2800*2300mm |
Speed | 700-1000pcs/hour | One person can operate 1-2 units |
Name | Brand | Origin |
Electric Appliance | Shihlin | Taiwan |
Bearing | NSK | Taiwan |
Motor | CapXon | Taiwan |
Air Pump | EUROVAC | Taiwan |
Frequency Changer | FATEK | Taiwan |
PLC | FATEK | Taiwan |
