ZH-M1450-PC
KOTEN
ZH-M1450-PC
Negotiate
1
T/T, L/C at sight
1sets/month
Export-standard and sea-worthy steel case
Within 30 days after get the deposit.
2589
| Quantity: | |
|---|---|

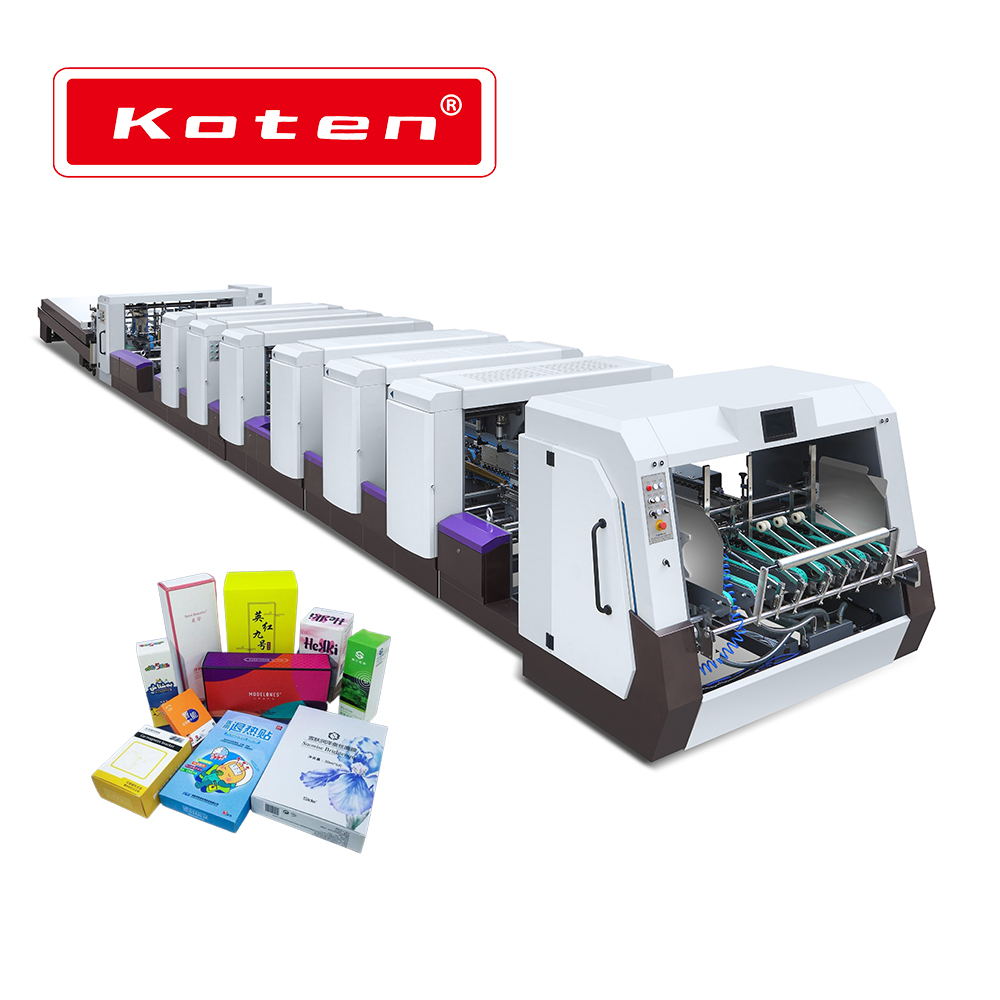

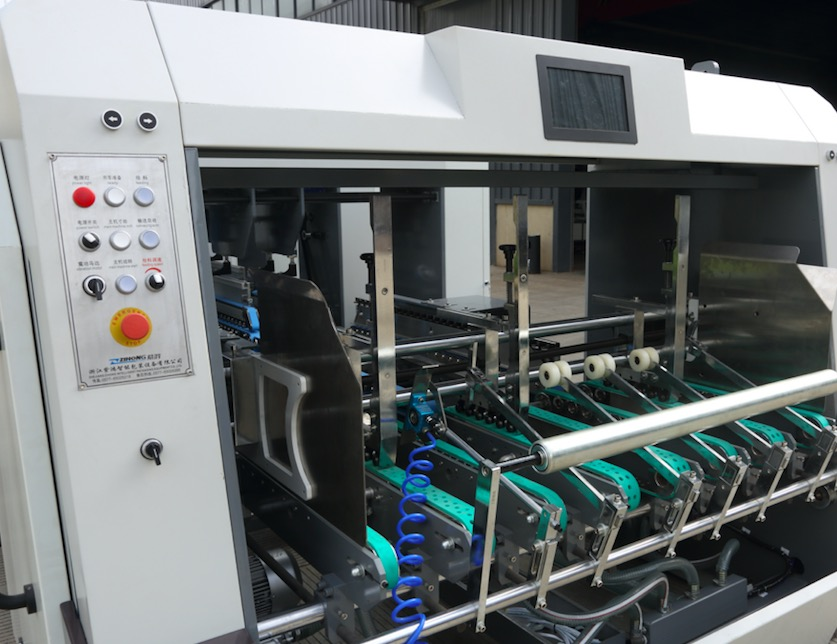

Automatic Straight Line Lock Bottom Folding Gluing Machine（ZH-M1450-PC）

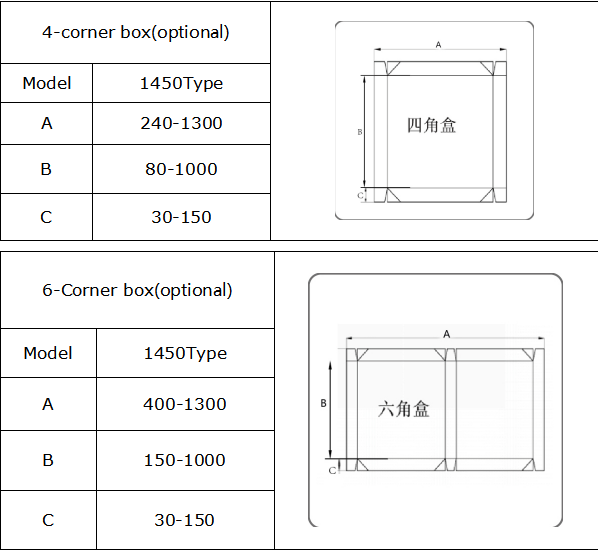

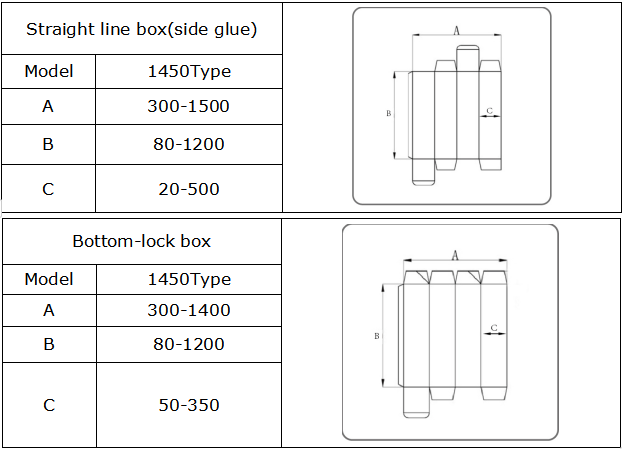

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
Model | ZH-M1050-PC |
Suitable material | Card board250-850gsm , B/C/E/F/ flute |
Max method | Automatic continuous feeding |
Max mechanical speed | 260m/min |
Overall dimension | 18500*1800*1600mm |
Weight | 12T |
Power consumption | 27.2KW,380V,50HZ |
Main motor | GPG |
PLC | Siemens |
Inverter | Siemens |
Touch screen | Siemens |
Driving Bearing | NSK |
Plain belt | NITTA Japan |
Relays | Schneider |
contactor | Schneider |
breaker | Schneider |
Button | Schneider |
Photo Switch | Panasonic |
Automatic Straight Line Lock Bottom Folding Gluing Machine（ZH-M1450-PC）
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
