1450F
KOTEN
1450F
38800
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
3242
| Quantity: | |
|---|---|

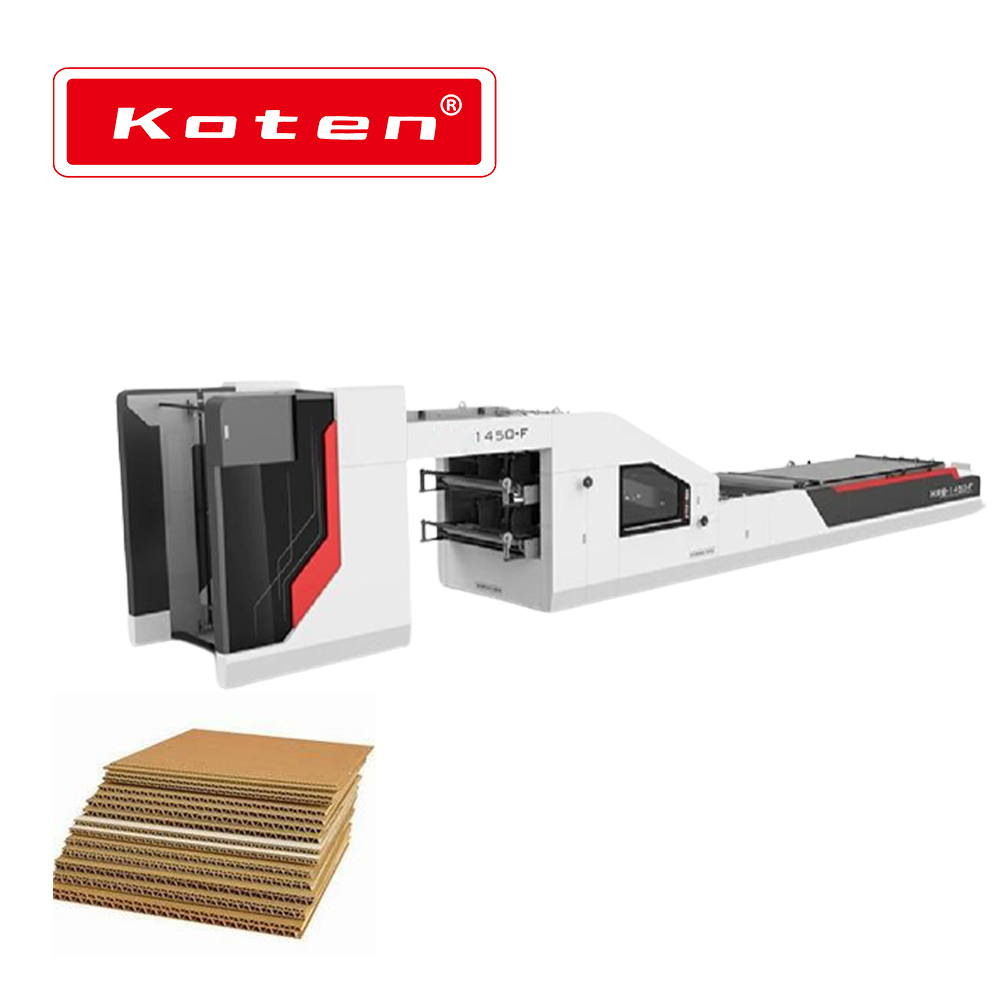

F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.
1- Servo motor
2- Vacuum transfer
3- Fully Siemens electric system
4- Remote control system
5- Auto set by HMI and PLC
THREE IN ONE 2+2+1 or 4+2+1
Model | 1300F | 1450F | 1600F |
Max Paper Size | 1300x1200mm | 1450x1200mm | 1580x1200mm |
Minpaper Size | 520x520mm | ||
Face Paper Thickness | 150-600gsm | ||
Bottom Paper | A/B/C/E/F/G 2Ply Flute ≤10mm | ||
Precision | 1.5mm | ||
Max Speed | 4000-6000pcs/h | ||
Height Of Face Paper Pile | 1600mm | ||
Face Paper Table Capacity | 1500kg | ||
Height Of Bottom 2ply Pile | 400mm | ||
Total Power | 20/22/22kw | ||
Servo QTY | 2 | ||
Operation Way | AUTO SET | ||

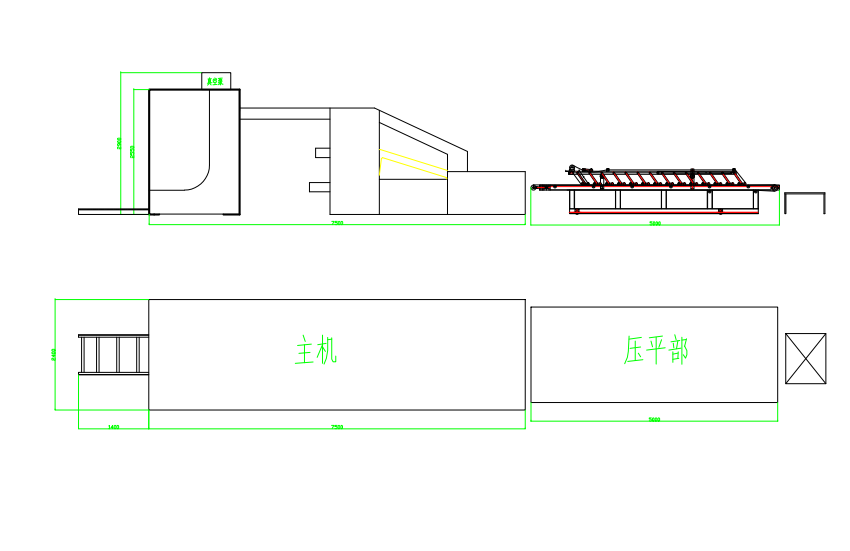

Dimension | 15x2.2x2.6m | 15x2.4x2.5m/15x2.5x2.5m | |
/Machine Weight | 5000kg | 5500kg/6000kg | |
NO. | NAME | MODEL | BRAND |
1 | INVERTER | V20 4.0 KW | SIEMENS |
2 | INVERTER | V20 2.2 KW | SIEMENS |
3 | INVERTER | V20 1.5 KW | SIEMENS |
4 | PLC | smart 200 ST40 | SIEMENS |
5 | TOUCH SCREEN | smart V700 IE | SIEMENS |
6 | CONTACTOR | 3TS30 01E | SIEMENS |
7 | THERMAL PROTECT | 3UA59 40-2A | SIEMENS |
8 | RELAY | ZYS4N-JDC24V | SIEMENS |
9 | AIR SWITCH | 5SP4391-7 C100 | SIEMENS |
10 | BUTTON | LA39-B2-11/r-GT | SIEMENS |
11 | EMERGENCY | LA39-A1-11Z/r | SIEMENS |
12 | SWITCH | LA39-b2-11X/k | SIEMENS |
13 | RELAY SOKET | 13Y9W1 | OMRON |
14 | RELAY SOKET | 13Y9W1 | OMRON |
15 | SERVO MOTOR | SV-DB100-1R5-4-1R | INVT |
16 | BRAKE RESISTER | 500W 50Ω | CHINA |

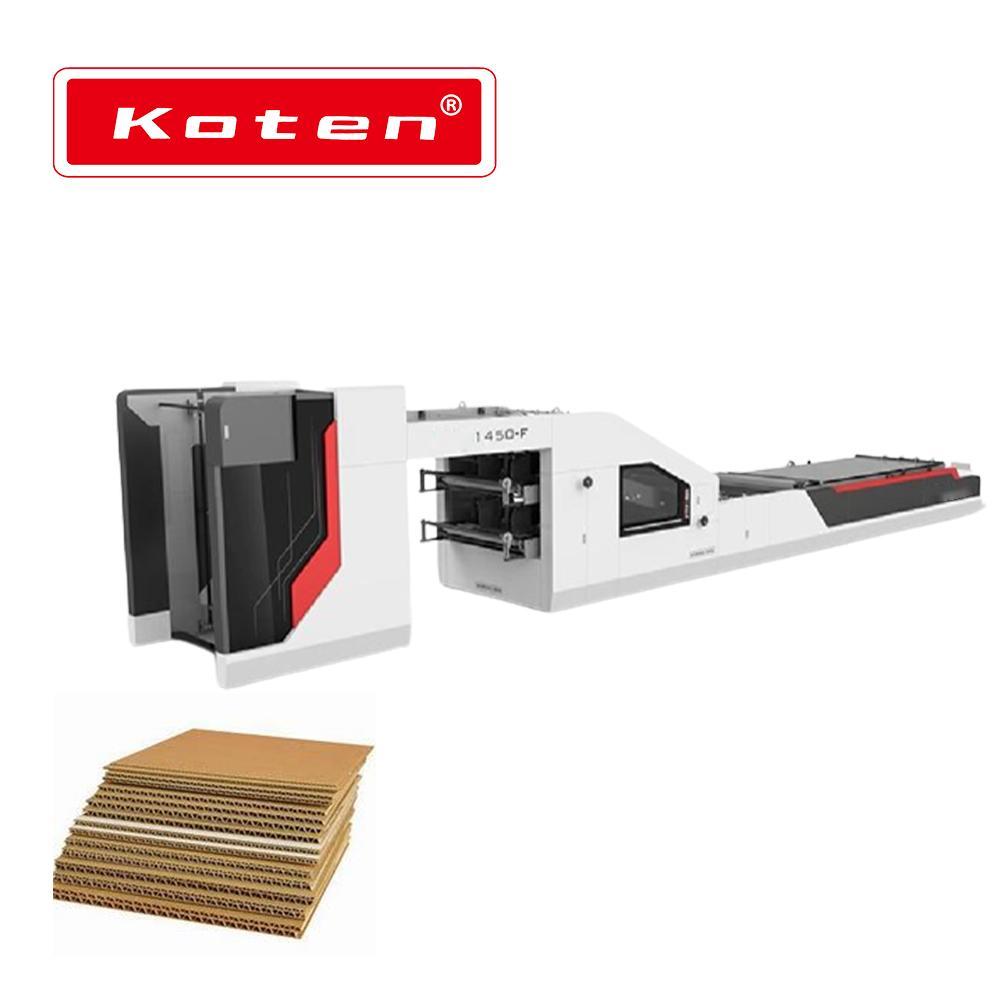

F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.
