DCTP-4A-10
KOTEN
DCTP-4A-10
negotiate
1
T/T, L/C at sight.
5sets/month
By strong seaworthy packaging.
Within 30 days after get the deposit.
China
3912
| Quantity: | |
|---|---|

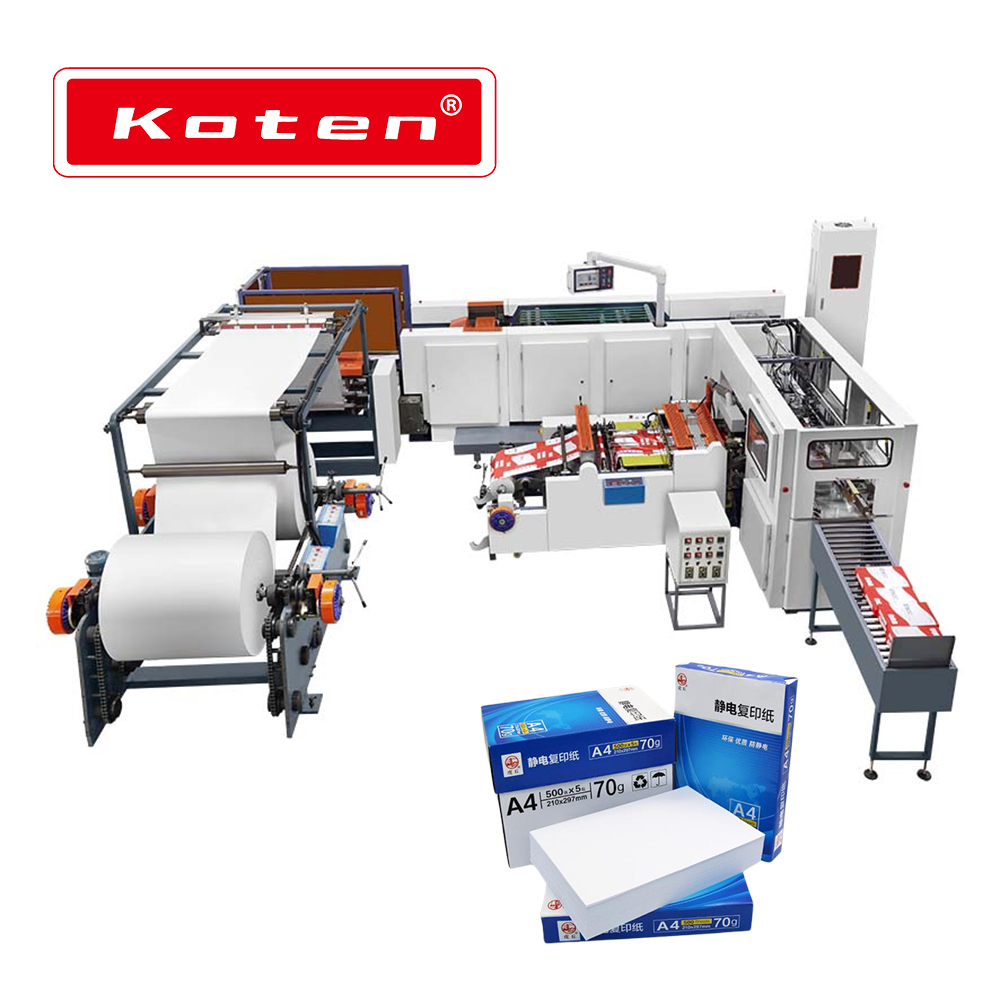

DTCP-A4-10 full-automatic A4 copy paper cutting and packing machine is the company's unique innovative products, the use of foreign technology, to fill the gaps in the domestic market, shorten the time of the slitter and parcel, improve the production of slitting and packaging efficiency. Paper specifications to achieve high precision, pioneered the domestic precedent, reached the international level of the whole process of automated production, synchronised to achieve the effect of saving time and effort.
Cut-Size Sheeting Unit | ||
Unwinding Paper Reels | 2 | |
Number of Pocket | 2 | |
Recommended Width of Paper Roll(mm) | 845-860 | |
Net Cutting Width(mm) | 840 | |
Diameter of Paper Roll(mm) | 400-1200 | |
Diameter of Core Chuck(mm) | 3”(76.2mm) | |
Paper GSM(gsm) | 60-100 | |
Length of Sheeted Paper (mm) | 297 | |
Sheet Quantity per Ream (pcs) | 250--500 | |
Ream Height(mm) | 30--65 | |
Max. Speed of paper feeding (m/min) | 250 | |
Max. Working Cutting Speed (cutting/min) | 840 | |
Ream Discharging speed (reams/min) | 10-12 | |
Max. Knife Loading(gsm) | 400 | |
Paper cutting accuracy (mm) | Length | ±0.2 |
Width | ±0.1 | |
Squareness | ±0.15 | |
Requirement for paper Reel | 1. Stable Speed 2. Paper roll without splice 3. Qualified paper | |
Transmission | AC Frequency conversion, stepless speed regulating | |
Main power source | 380V 50Hz 3phase 4 wires | |
Control voltage | 220V AC/24V DC | |
Total Power(Kw) | 22 | |
Overall dimension(m) (LxWx H) | 7× 7× 2.1 | |
Weight（Ton） | 8 | |
Ream Wrapping Unit | ||
Production Speed(reams/min) | 10-12 | |
Motor power(Kw) | 6.5 | |
Gluing Heating Power(Kw) | 2.25 | |
Compressed air(Mpa) | 0.6—0.8 | |
Overwrapping Paper size(mm)(L ×W) | 550-560×386 | |
Overall dimension(m) (LxWx H) | 3.4x3.3x1.6 | |
Weight （Ton） | 2 | |
