Automatic Cardboard Grooving Machine for Rigid Box Making Solution

Automatic Cardboard Grooving Machine for Rigid Box Making Solution（KR22A）

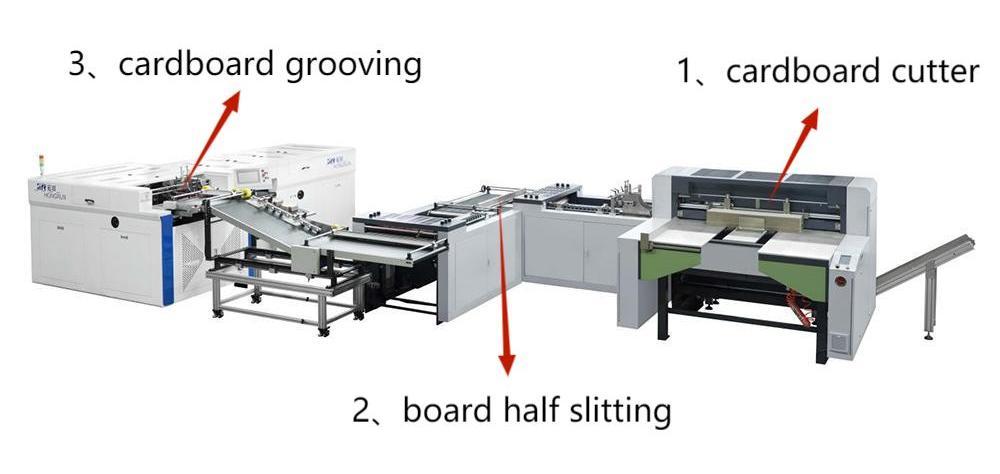

The first step will stack the cardboard that has been cut into the cardboard to the cardboard to transport the cardboard. The machine uses an automatic bottom drawing cardboard to complete the division

The slit cardboard passes through the conveyor belt and is transported to the first cardboard cutting machine after deflection correction to complete the cardboard cutting in one direction.

After completing the secant line in the first direction, it is conveyed through a 90-degree rotation of the conveyor belt, and then transported into the second cardboard line secant machine after deviation correction to complete the cardboard line secant line in the other direction.

After the two-way secant line of the cardboard is completed, it is transported into the Tic-Tac-toe slotting machine through the conveyor belt, and then the slotting and chamfering of the cardboard is completed through the Tic-Tac-toe slotting machine, and the finished product is output.

Feature：

1、Use the traditional mold cutting of the cardboard to change to the method of a servo round knife cut

2、The length of the cutting line is digital adjustment, the operation is simple and easy to use, and there is no need to operate the experience

3、Cutting line vertical and horizontal lines complete completion of sexual completion

4、Cut the cardboard, cut lines, and slots to complete the production, eliminating the intermediate handling link, which greatly reduces labor.
