HSJ-1100
Koten
HSJ-1100
Negotiate
One set
T/T
50sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
1123
| Quantity: | |
|---|---|

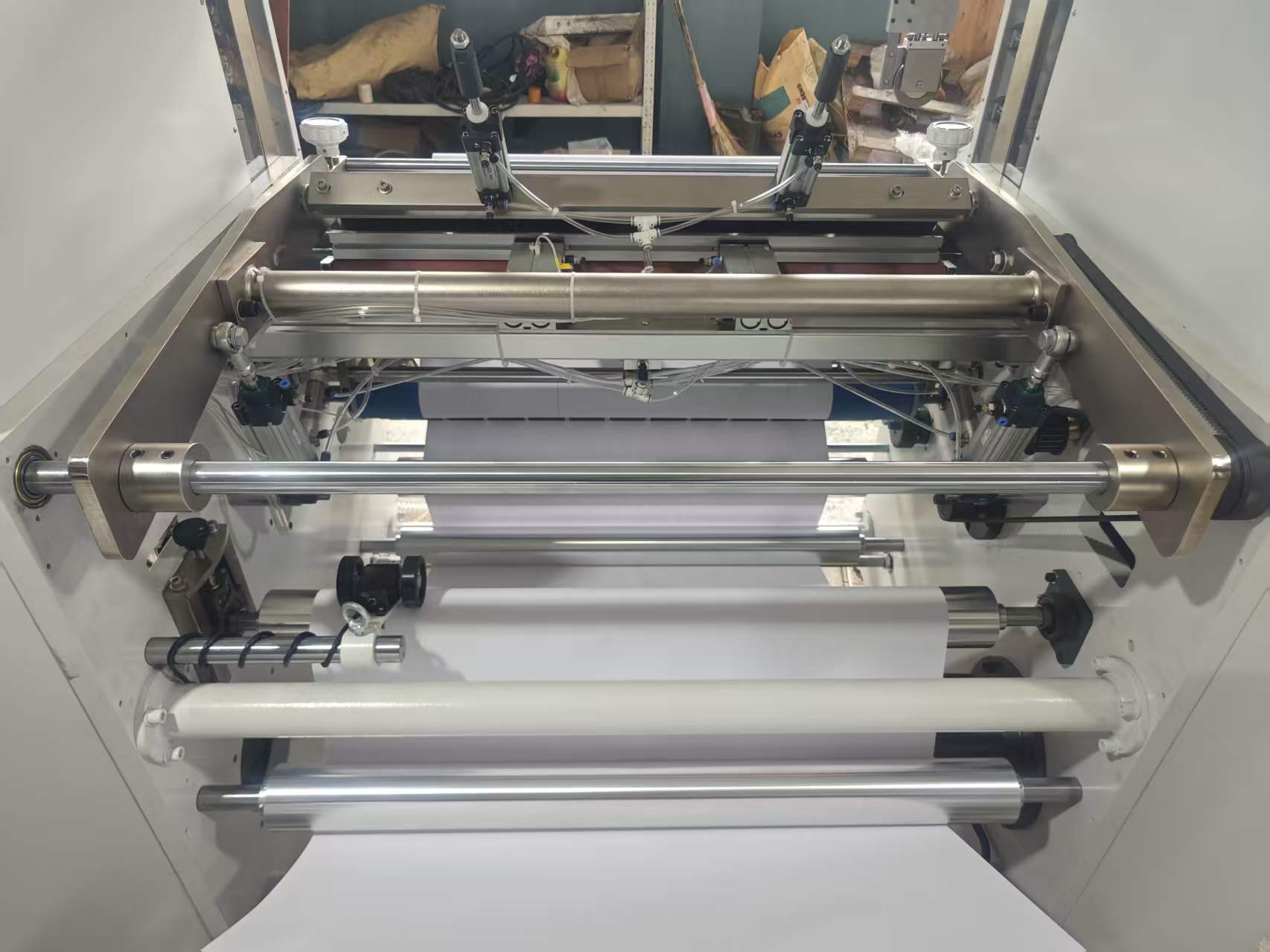

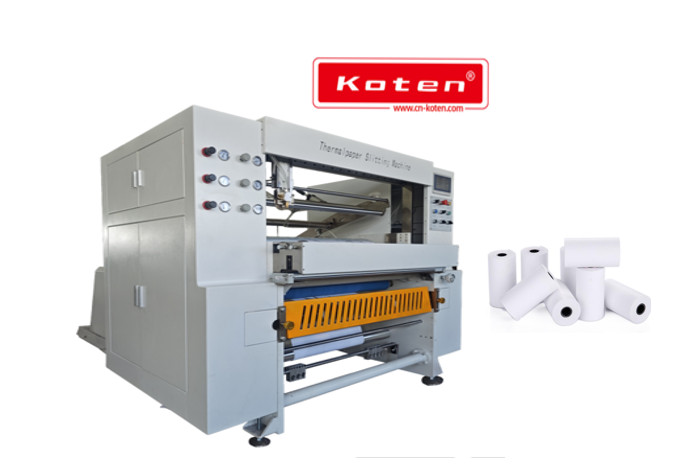

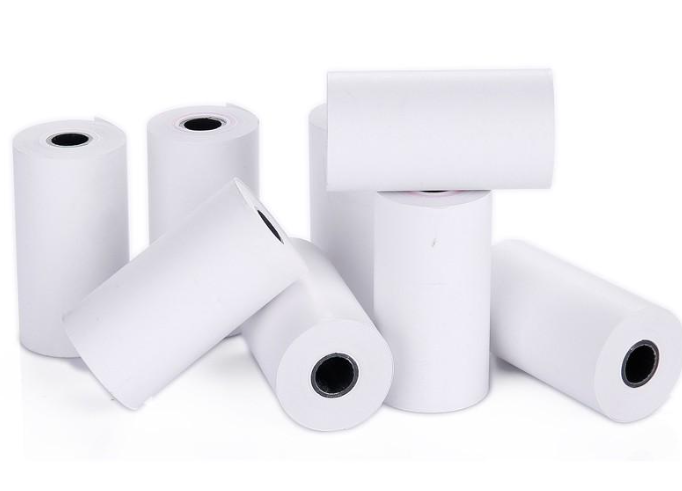

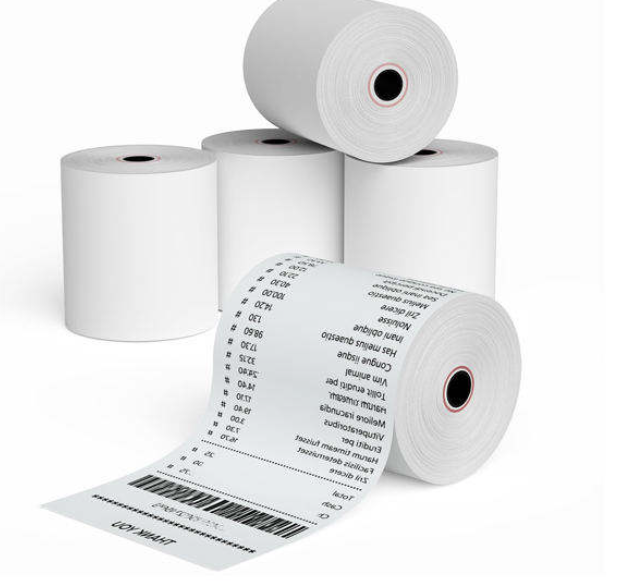

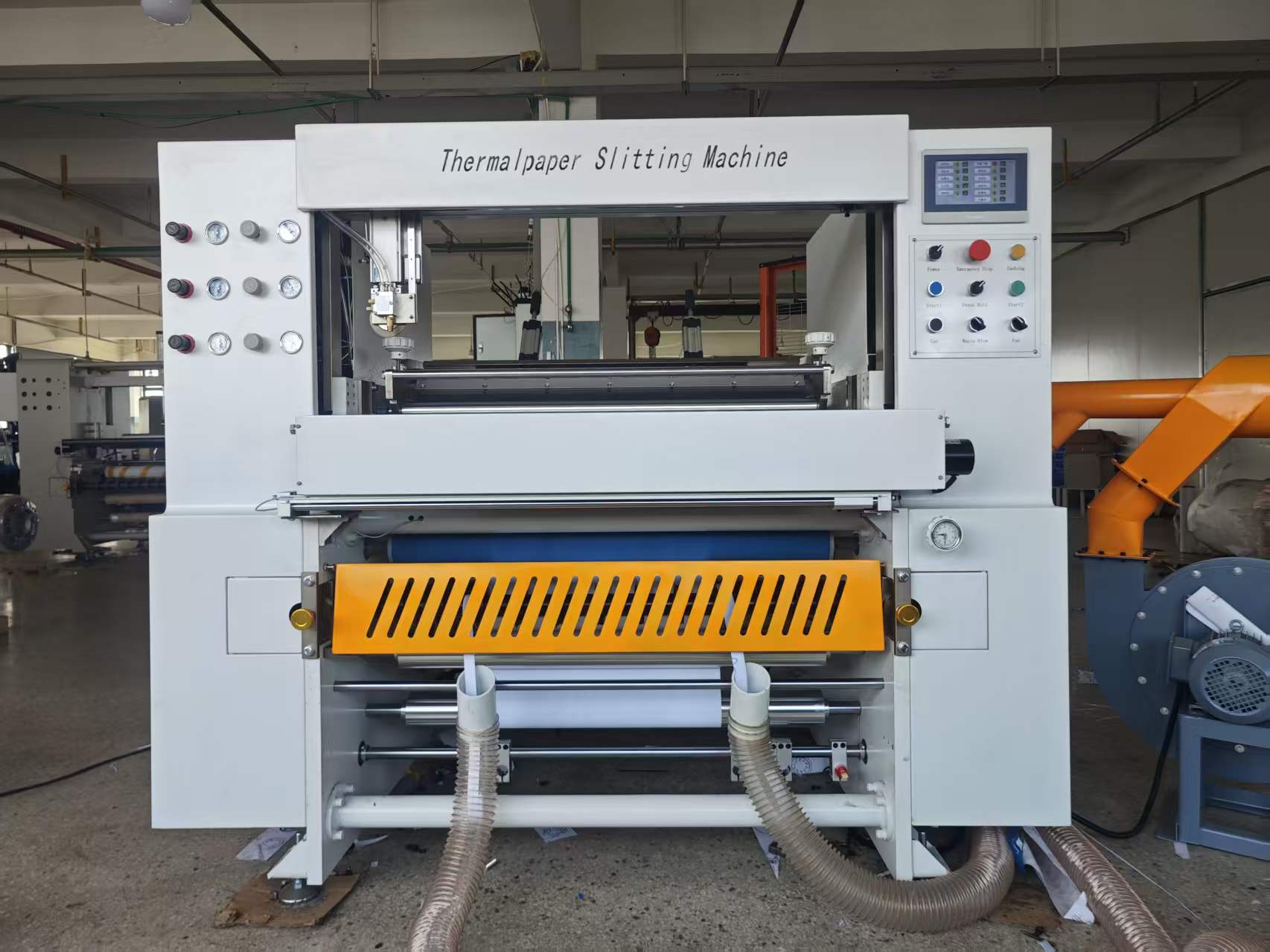

This machine mainly used for slitting and rewinding kinds of paper, like thermal paper, fax paper, bank receipt, computer bill, etc. It also can be used in the medical industry, film, self-adhesive paper, etc. Slitting. It is a ideal equipment for slitting the small paper core material both in China and all over the world.
Model | HSJ-1100 | ||
Material: | Thermal paper, cash register, ATM roll etc | ||
Maximum uncoiling width: | 1100 mm | ||
The maximum width of the jumbo reel: | 1100mm | minimum operating speed: | 5 meters/minute |
Maximum operating speed: | 194 meters/minute; | Slitting blade materials: | SKD-11 |
Working speed: | 194m/min | ||
Slitting accuracy: | ±0.02mm | he maximun unwinding weight | 2T |
Maximum unwinding diameter: | 1200 mm (customizable up to 1400 mm) | Standard slitting width: | 35mm 57 65 75 80...900 |
The unwinding shaft: | locked ￠3" air expanding shaft | Machine material: | steel board and cast iron |
Unwinding tension force | 100N/M | Working voltage: | three phase four line, 380V, 50-60HZ |
The maximum rewinding diameter: | 200mm | Working airpressure: | 0.6Mpa |
The main motor: | 2.2 KW frequence inverter control | Weight: | about 1600 kgs |
The fan motor: | 550w single phase motor | Packaging dimensions | 2.3 m × 2.25 m × 1.75 m |

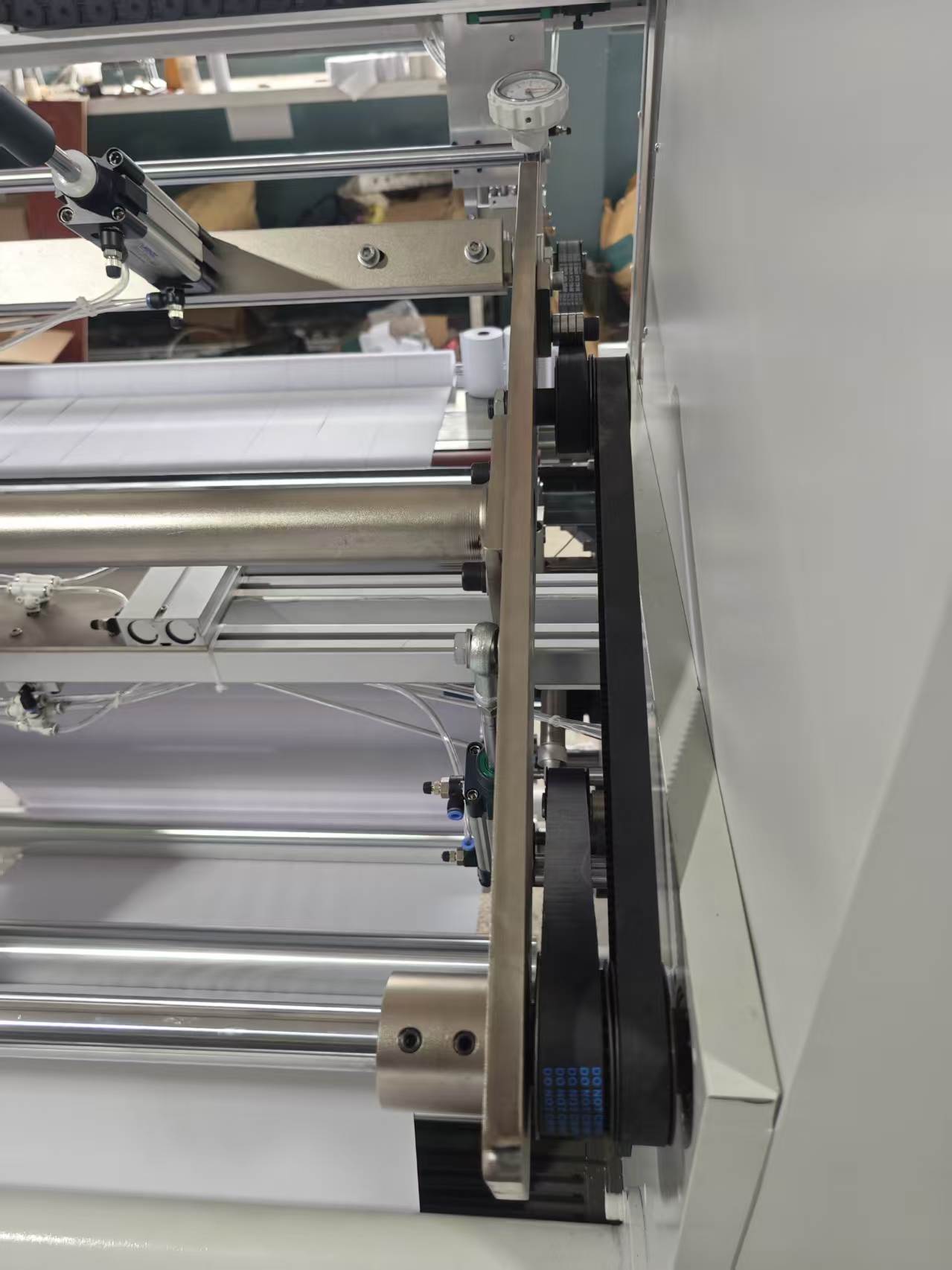

The transimmission way: | chain, gear and synchronization strap | Total power | 5.5 kw |
Vehicle Function Configuration / Functions (The red section indicates optional features) |
Automatic paper insert system |
Automatic warning line printed |
Air loading paper |
Automatic taper tension control |
Automatic separate paper by Banana roll |
Magnetic powder brake with Active air cooling system |
WIFI module,remote monitoring and OTA system |
Automatic paper cutting |
Automatic glue sprinkle |
Automatic paper rotation and gluing |
Automatic paper push out |
Automatic paper push to packing machine |
Vibration plate automatic tube core insertion function (sold separately) |
