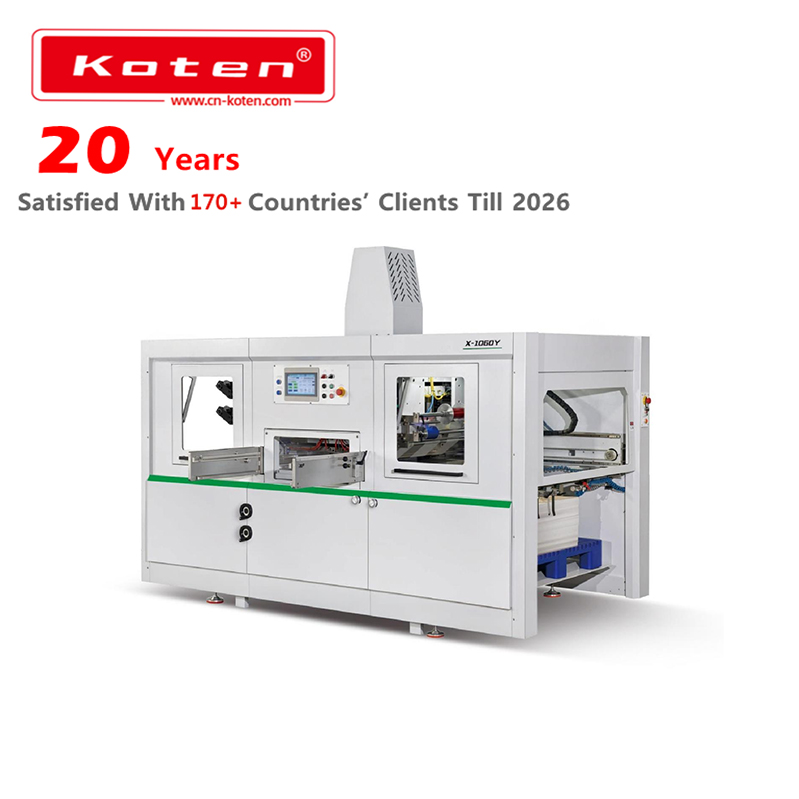

X-1060
KOTEN
| Speed: | |
|---|---|
| Accuracy: | |
| Max sheet size: | |
| Max stamping area: | |
| Quantity: | |
Key Advantages

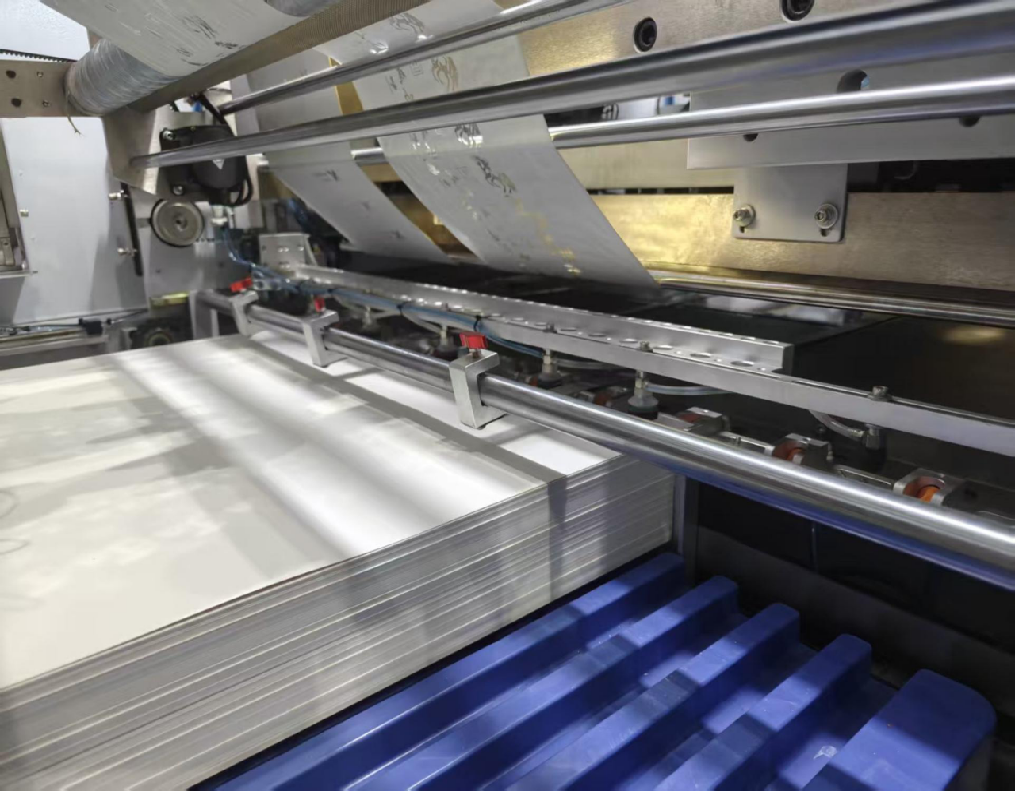

High-precision servo control — registration accuracy up to ±0. 1mm. Pneumatic feeding with anti-double-sheet function — less waste, fewer jams.

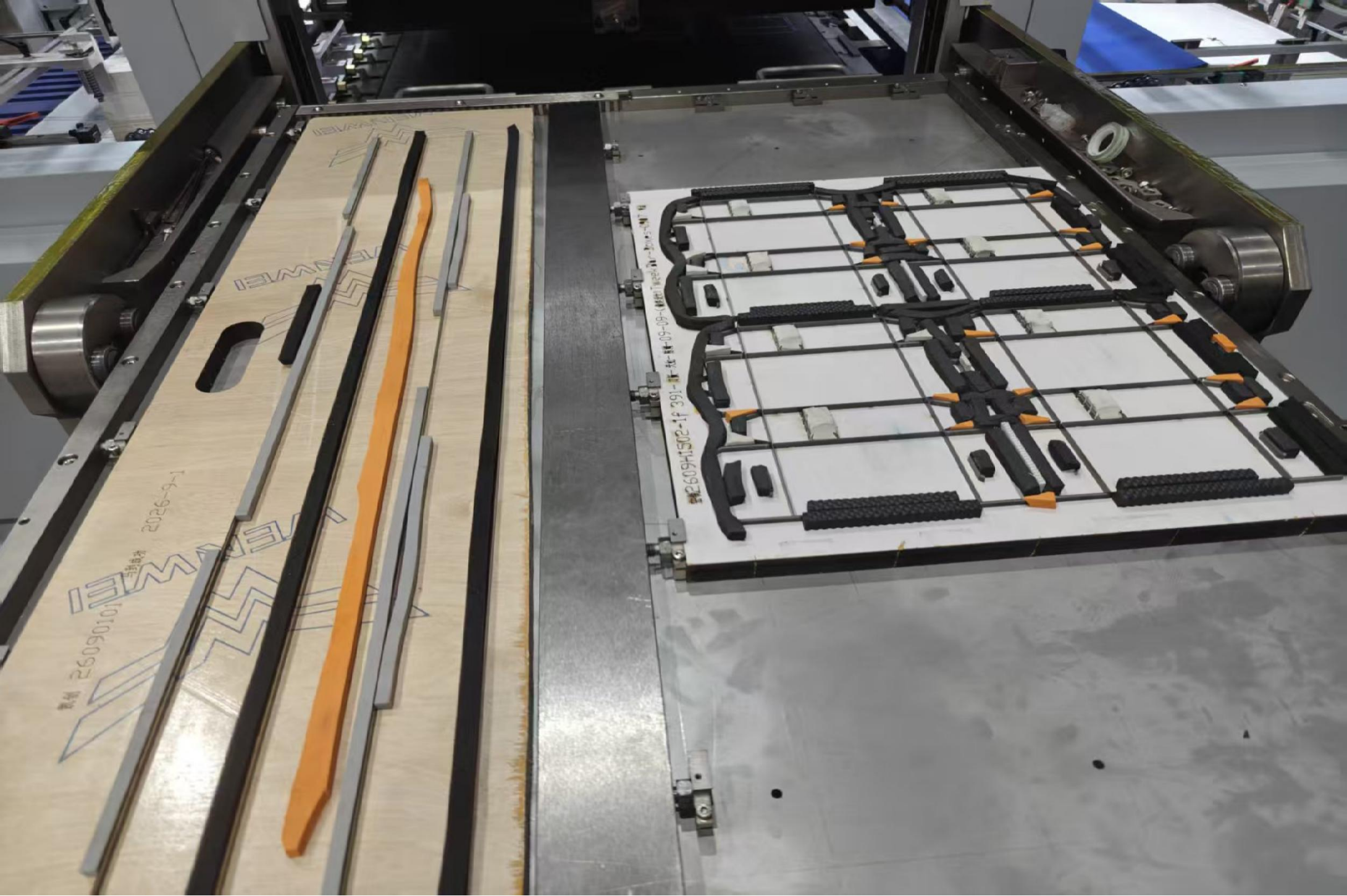

Quick plate changing device — ideal for short-run and multi-variety orders.
PLC + touch screen control — easy operation, parameter memory Automatic counting and fault alarm — real-time monitoring, less downtime.
Energy-saving and low noise — vertical motor, stable and long-lasting CE-certified safety design — safety door interlock, emergency stop.
Easy maintenance and low cost — automatic lubrication, easy access Flexible configuration — optional chain knife, hot knife, stripping unit Strong after-sales support — remote troubleshooting, fast spare parts.
| Max sheet size | 1060 x 760 mm |
| Min sheet size | 200 x 200 mm |
| Max cutting size | 1045 x 745 mm |
| Paper specifications | Corrugated board: ≤4 mm Cardstock: 157-500 g/m |
| Max stamping area | 1040 × 740 mm |
| Min gripper margin | 9 mm |
| Cutting precision | ±0.1 mm |
| Feeder stack height | 800 mm |
| Max cutting pressure | 120 T |
| Max cutting speed | 1600 S/H |
| Total machine power | 25 KW |
Dimension | 3172 × 2409 × 2353 mm |
