HB-520PB
KOTEN
HB-520PB
Negotiable
One set
T/T
10set/month
By strong wooden cases.
Within one month after receive of the deposit.
China
5789
| Quantity: | |
|---|---|

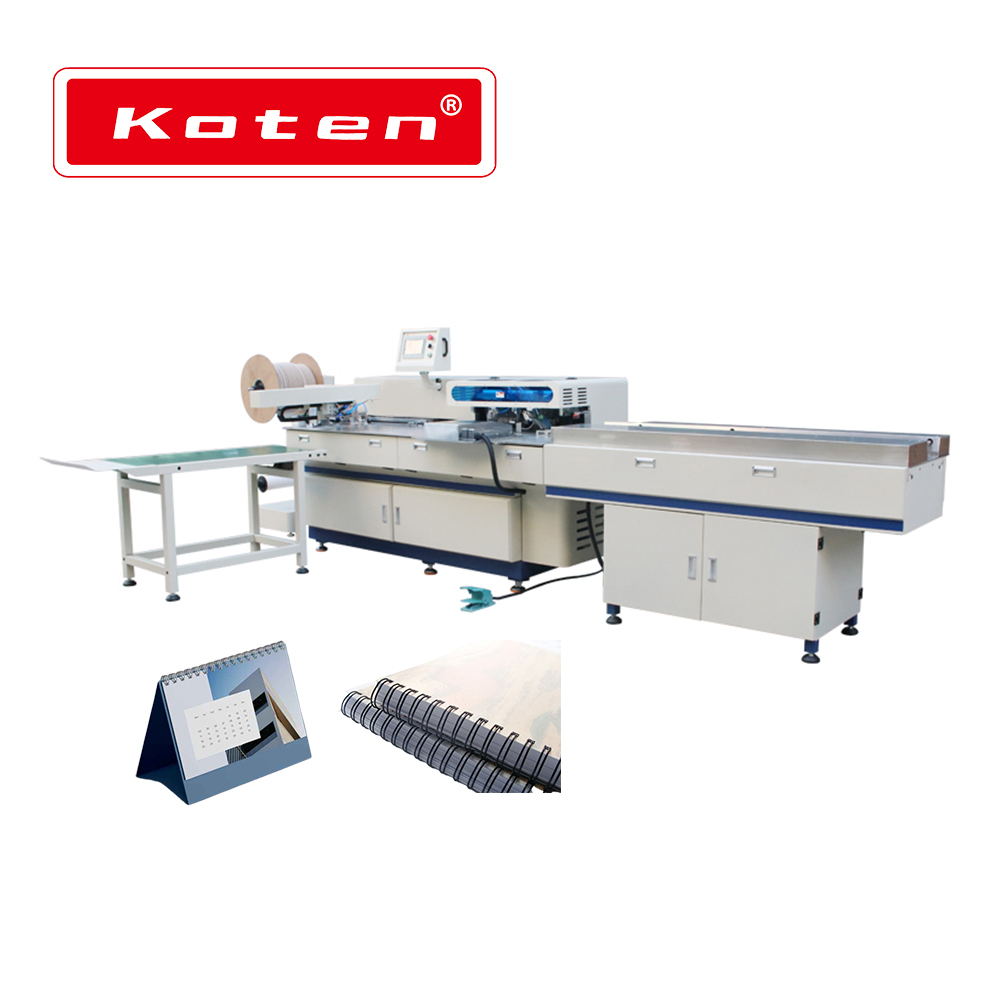

Automatic Double Wire Punching and Binding Machine（HB-520PB）

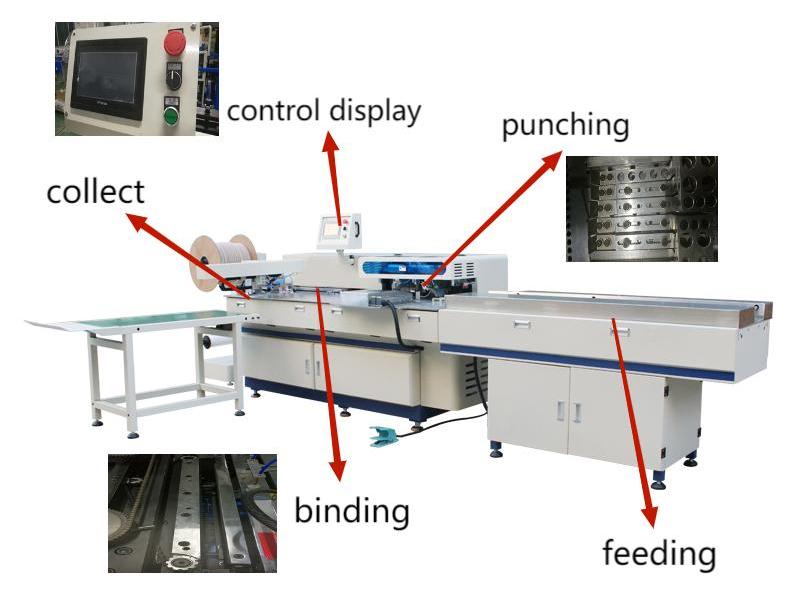

The punching and binding machine can carry out two processes at the same time very quickly.It can automatically transfer the product to the binding place after the hole is punched.This machine can be used to make sketchbooks, student notebooks, calendars and other similar products.
Wire Spec range | 1/4"---5/8" |
Binding Thickness | Max.13 mm |
Max/Min paper size | 510*800mm/140*140mm |
Max book size for feed belt | 420*420 mm |
Working Speed | 800-1800 Books/hr |
Power | 380V/1 Phase/ 50 Hz |
Machine Dimension | 5800*1600*1600mm |
Machine Weight | 1350 KG |

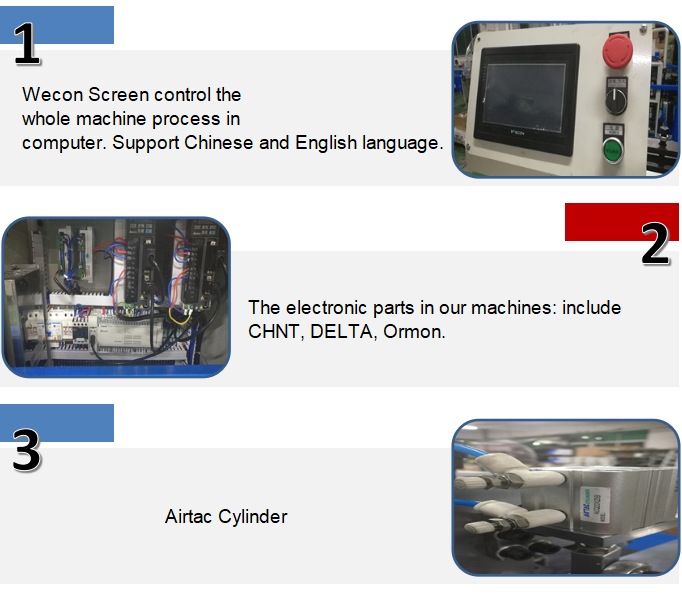

Name | Brand | Origin |
Touch screen | WEINVIEW | China |
PLC | Ling/Delta | Taiwan |
Stepper motor | Rexay | China |
Cylinder | AirTAC | Taiwan |
Electric eye | Taiwan | |
Radio and television induction | Yangming | Taiwan |
Servo motor | Delta | China |
Motor | Taibang | China |
Slide rail | Shangyin | Taiwan |
Attention：Affected by market supply, some parts will be replaced with other brands of the same grade in actual production | ||
