PJ-420
Koten
PJ-420
Negotiable
One Set
T/T
50sets/month
By strong wooden cases.
30 days
China
1126
| Quantity: | |
|---|---|
Introduction.

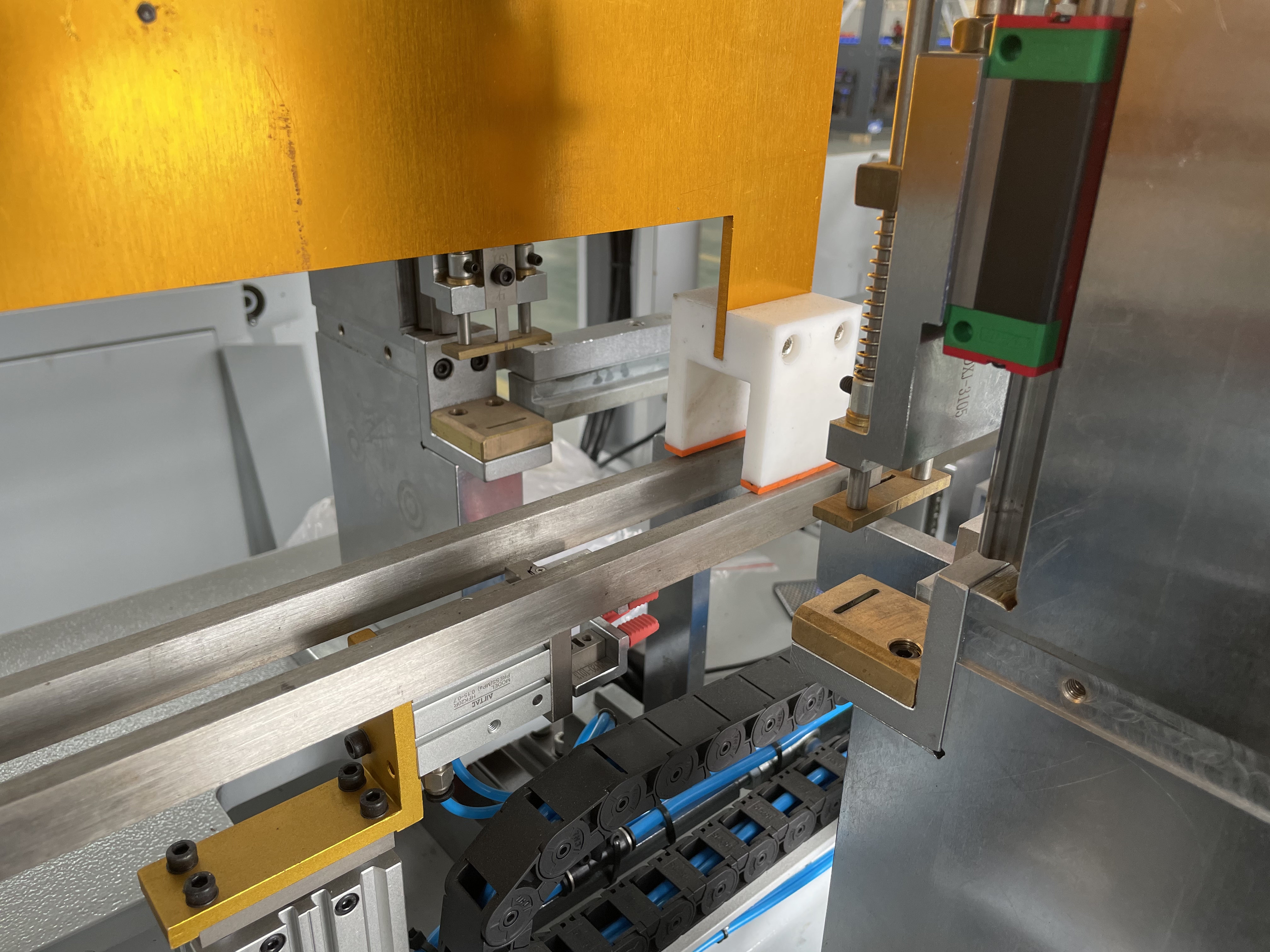

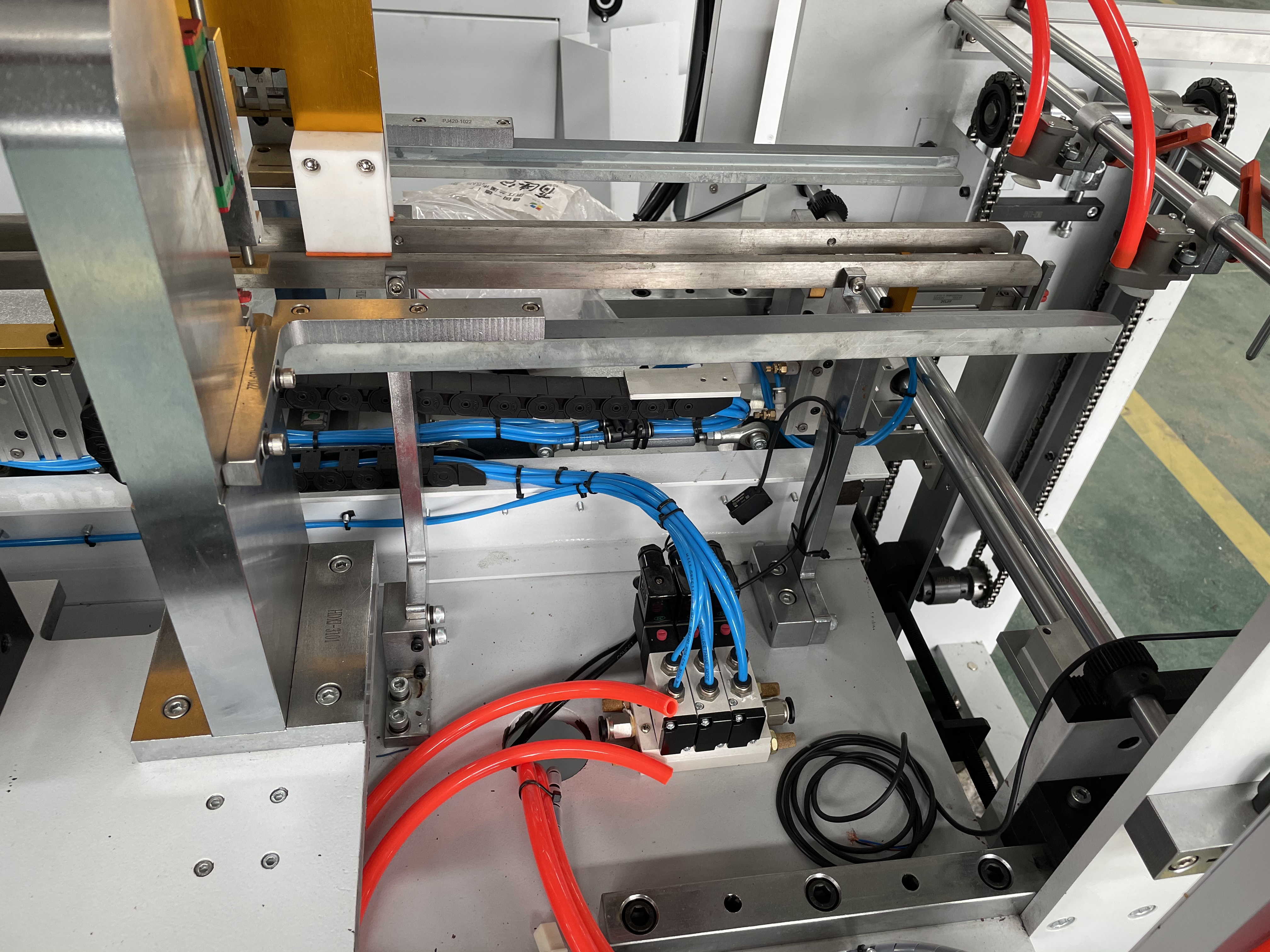

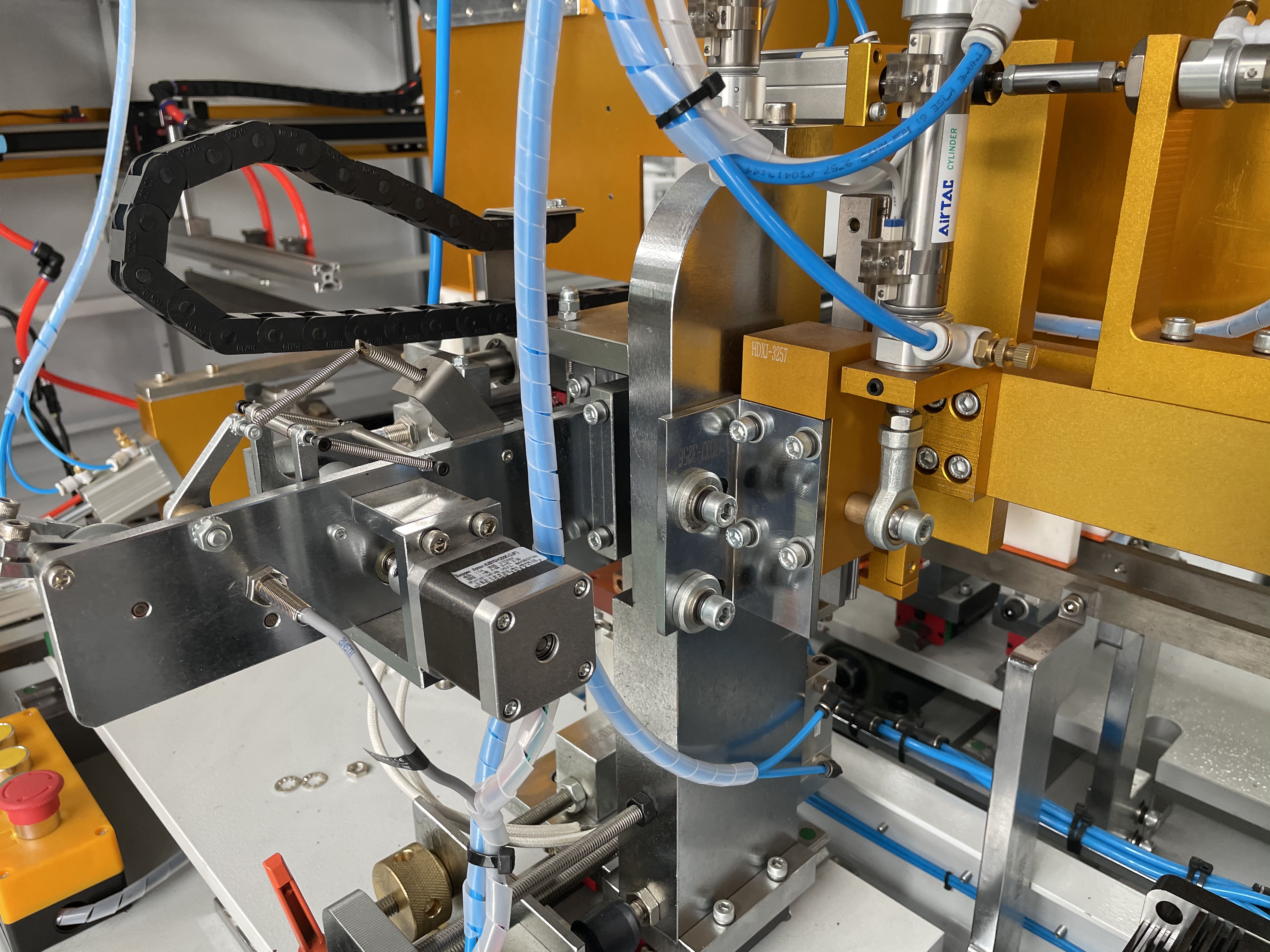

This machine is used for hardcover book elastic band inserting, including automatic hardcover feeding,hole punching, automatic elastic size calculating, cutting, inserting, and gluing by hot melt glue, then automatic delivery. It has a high efficiency for elastic band binding, can solve problem of the difficult jobs by hand. There are 3 servo systems control and PLC touch screen control the whole process which has a steady running and convenient for workers’ operation.

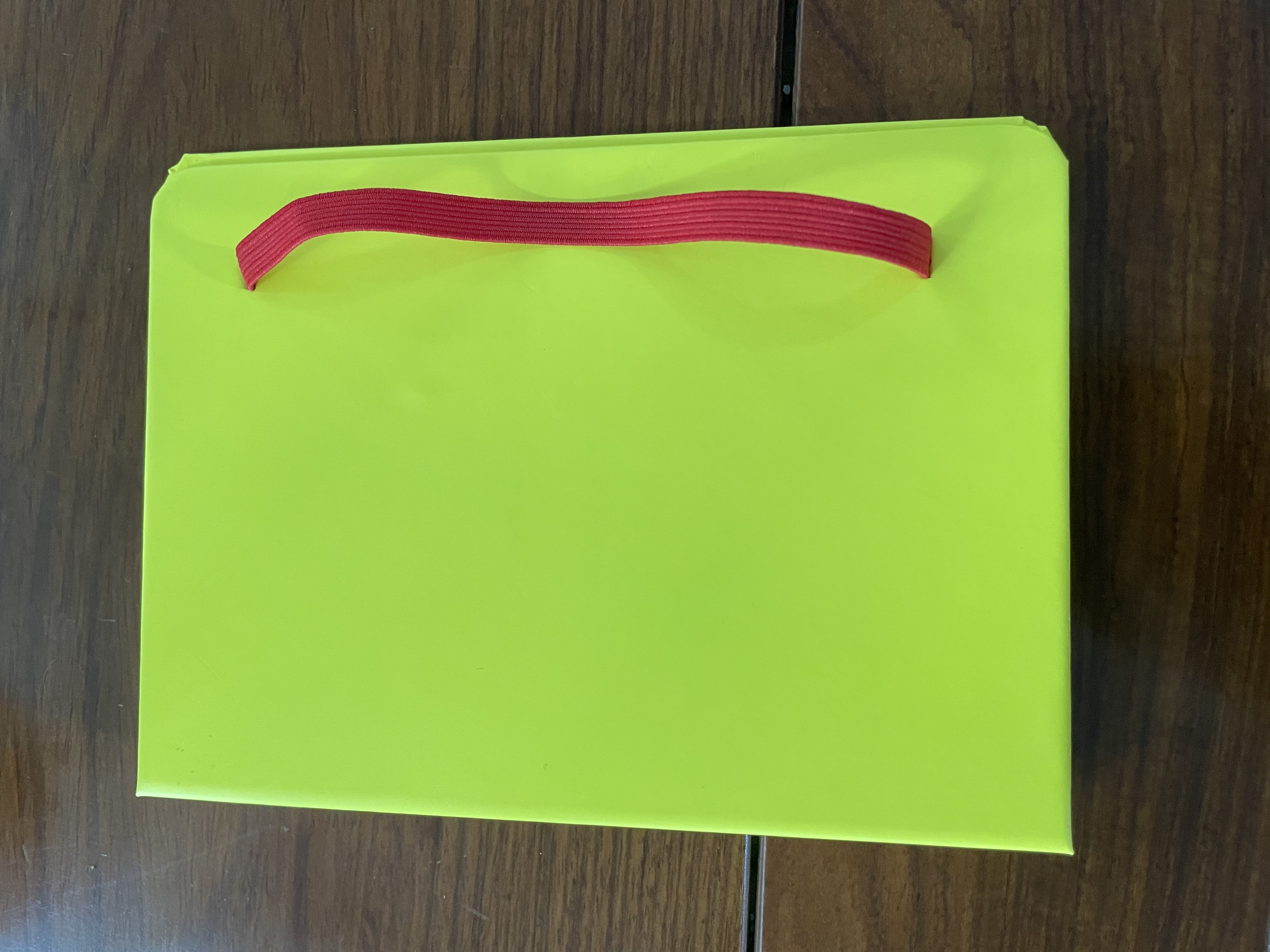

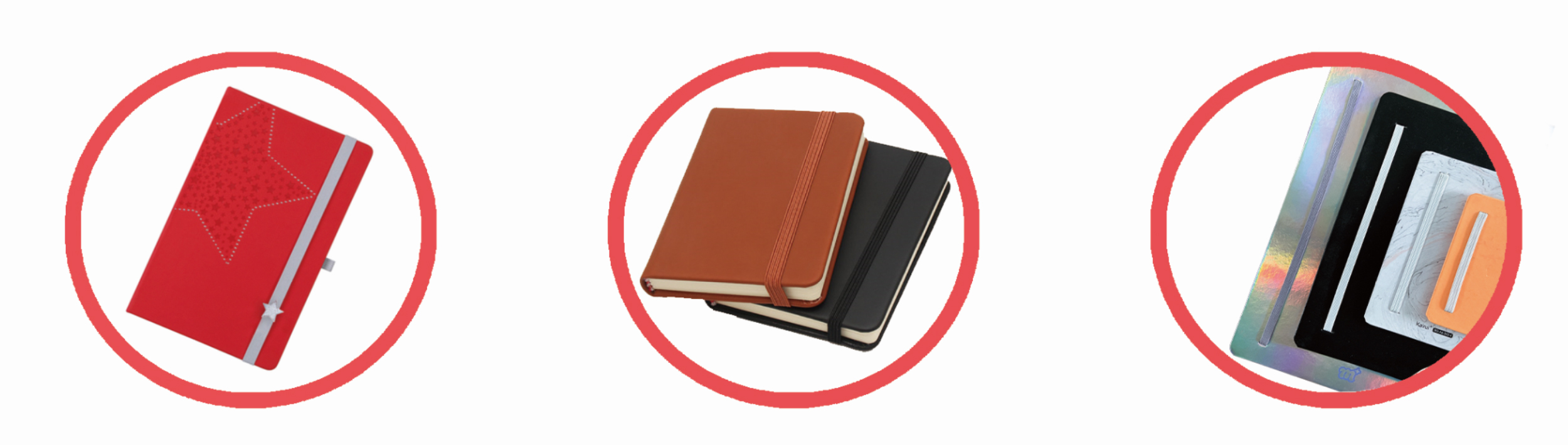

Finished Samples.
Main Specifications.
Model | PJ-420 |
Max.size of Cover | 340x440mm |
Min.size of Cover | 105x170mm |
Hole sizes | 5mm, 6mm,8mm,10mm (Customized) |
Max. Speed | 25books/min |
Main Power | 6kw 3P 380v 50hz |
Air compressor | At least 0.6kg/cm2 |
Machine weight | 1600kg |
Machine size | 2880x1600x1800mm |
Main Configurations.
Name | Brand |
PLC | DELTA |
Touch screen | DELTA |
Air Cylinder | AIRTAC |
Photocell | Panasonic |
Servo Motor | OUXIN |
Stepping Motor | BUKE |
AC contactor | Schneider |
Breaker | Schneider |
Hot melt glue gun | WEILIAO,CHINA(Option for imported brand) |
Linear Guideway | HIWIN, Taiwan. |
Koten Machines Container Loading.
140 Countries Clients Who Has Koten Brand Machines Till 2019.
2. Guarantee.
3. Delivery Time.
4. What is your package?
5. Do you have Installation and Training service if we bought the machines from your company?
6. Have you sold any machines to our country?
7. What is your payment terms?
8. What your company can offer?
Paper Bag Making Solutions.
Exhibitions and Customers'Meeting.
Factory Production.
