LYRDT-1020
KOTEN
LYRDT-1020
Negotiable
One set
T/T,L/C
10sets/month
By strong wooden cases
Within 45days after get the deposit.
China
2061
| Quantity: | |
|---|---|

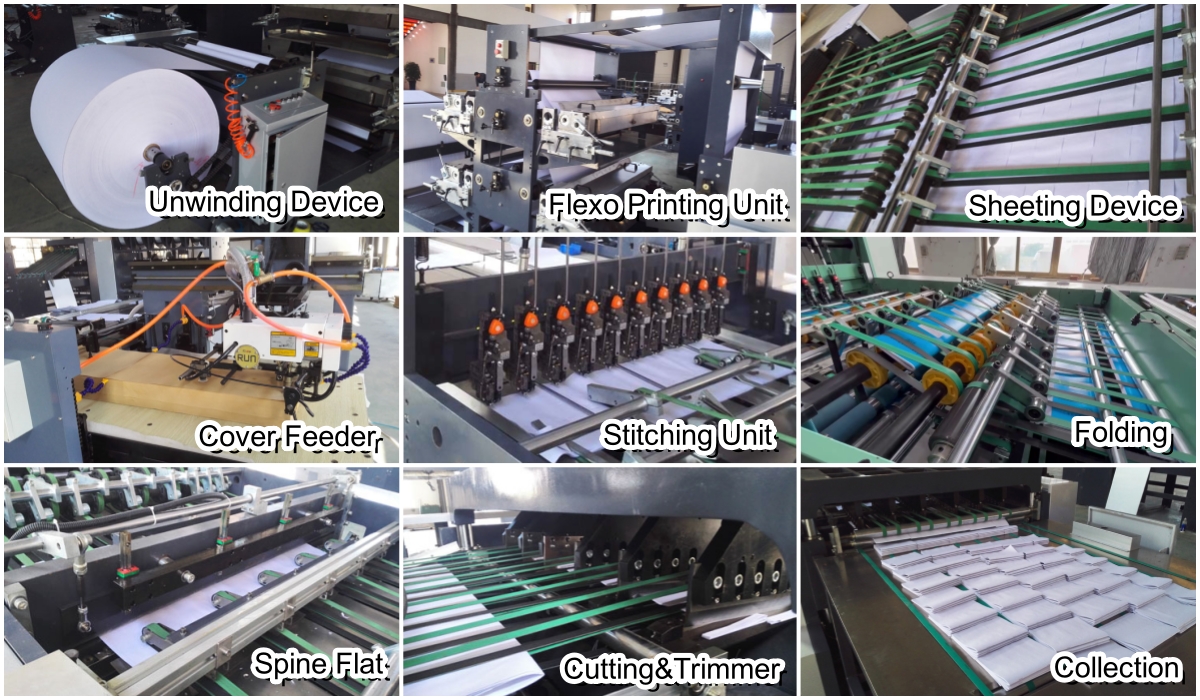

The machine of web flexo printing and wire stitching machine is a new generation of printing machinery our company has developed. The machine is an ideal machinery for various thin notebook stitching production consists of a reel stand electrically operated, an automatic tension control system, a two-color perfect printing unit, a lateral sheeting unit, a sheet counting and piling unit, a feeding and sheet collecting unit, a wire stitching unit, a folding unit, a spine dressing unit, a front-side trimming unit, a slitting unit and a delivery with their electrical control system, etc.

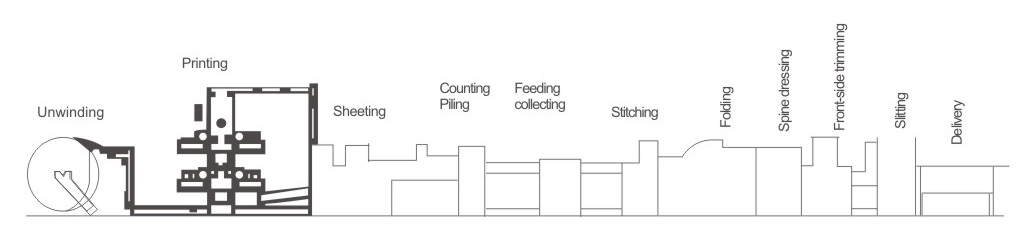

The paper reel on the reel stand is unwound first and the unwound paper then goes through the transfer cylinder to the printing unit to get printed before sheeted to a preset sheet length in the lateral sheeting unit. Next, the piled sheets are further transported to the counting and piling unit to get piled in stacks of a defined number of sheets. When the stack gets to the feeding and collecting unit, a covering sheet is laid down on its top there and now the stack gets wire-stitched in the stitching unit prior to getting half-folded at the stitching line in the folding unit. After folded, the book spine has to be dressed and, afterwards, it has to be front trimmed, slit and side trimmed before the final product of exercise-books are eventually delivered to the delivery, completing the whole process.
Model | LYRDT-1020 |
Web width | 580-1020mm |
Web diameter | Max. 1300mm |
Web core diameter | 76mm(3inch) |
Cutting precision | 2mm |
Printing and slitting length | 300-670mm |
Cutting length | 250-670mm |
Counting and collecting | 4-50 sheets |
Printing speed | 0-350m/min |
Max. EB. making speed | 60times/min |
Max. sheets stitching | About 100pcs for 45gsm paper |
Wire requirement | 15 kg/reel |
Counting piling | 10-40pages/min |
Binding size | 125-300mm |
Reel paper requirement | 40-120gsm |
Cover paper requirement | 70-300gsm |
Stitching heads | 10pcs Hohner—Germany |
Main motor | 15kw |
General power | 32kw |
Air source | 0.8MPa |
Net weight | 18T |
Description | Origin | Brand |
PLC | Germany | SIEMENS |
Main Motor | Germany | SIEMENS |
Main Motor Controller | Japan | Fuji |
Contactor | France | Schneider |
Bearing | Japan | NACHI |
Belt Conveyor | Switzerland | HABASIT/Rapplon |
Synchronous cog belt (timing belt) | USA | GATES |
