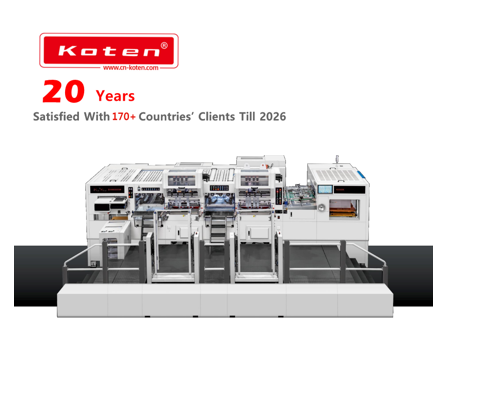

Automatic Flatbed Die Cutting Machine With Hot Stamping
AEMS-1080TQ
AEMS-1080TQ is dual-unit configuration that allows for simultaneous die-cutting and hot stamping. Mainly used for the corresponding non-metallic materials, adhesive, EVA, double-sided adhesive, electronic, mobile phone rubber pad die-cutting (full broken, half broken), indentation and bronzing operations, fitting, automatic waste discharge, etc. Machine uses steel knife, metal mold, steel wire (or steel plate engraving), through the imprint plate to apply certain pressure, the printing or cardboard rolling cut into a certain shape. It is an important equipment for post-press packaging processing.
AEM-1080TQ Automatic Flatbed Die Cutting Machine With Hot Stamping | |
Max sheet size： | 1080 x 750 mm |
Min sheet size： | 400 x 360 mm |
Max die cutting area： | 1070 x 720 mm |
Die chase inner size | 1144 x 760 mm |
Cutting plate size： | 1080 x 736 mm |
Max stamping area： | 1070 x 720 mm |
Min gripper margin: | 8 mm |
Cutting precision: | ≤±0.1 mm |
Stamping precision: | ≤±0.125 mm |
Max cutting speed: | 350 T |
Max cutting speed: | 7500 S/H |
Max stamping speed: | 7500 S/H |
Foil roll max diameter: | Φ200~250 mm |
Vertical foil width | 50~1060 mm |
AEMS-1080TQ Flatbed Die Cutting Machine With Hot Stamping | |
Horizon foil width: | 50~760 mm |
Vertical foil axle: | 3 pcs |
Horizon foil axle: | 2 pcs |
Heating area: | 12 pcs |
Temperature range: | 50~199℃ |
Pre-stacking height: | 1550 mm |
Delivery stack height: | 1400 mm |
Application: | Cardboard 0.1-2mm |
Corrugated paper ≤4mm | |
Main motor power: | 11 KW |
Heating area power: | 24 KW |
Total power: | 60 KW |
Dimension: | 8280(+1650)x2580(+1800)x2680 mm |
Weight: | 47 T |
