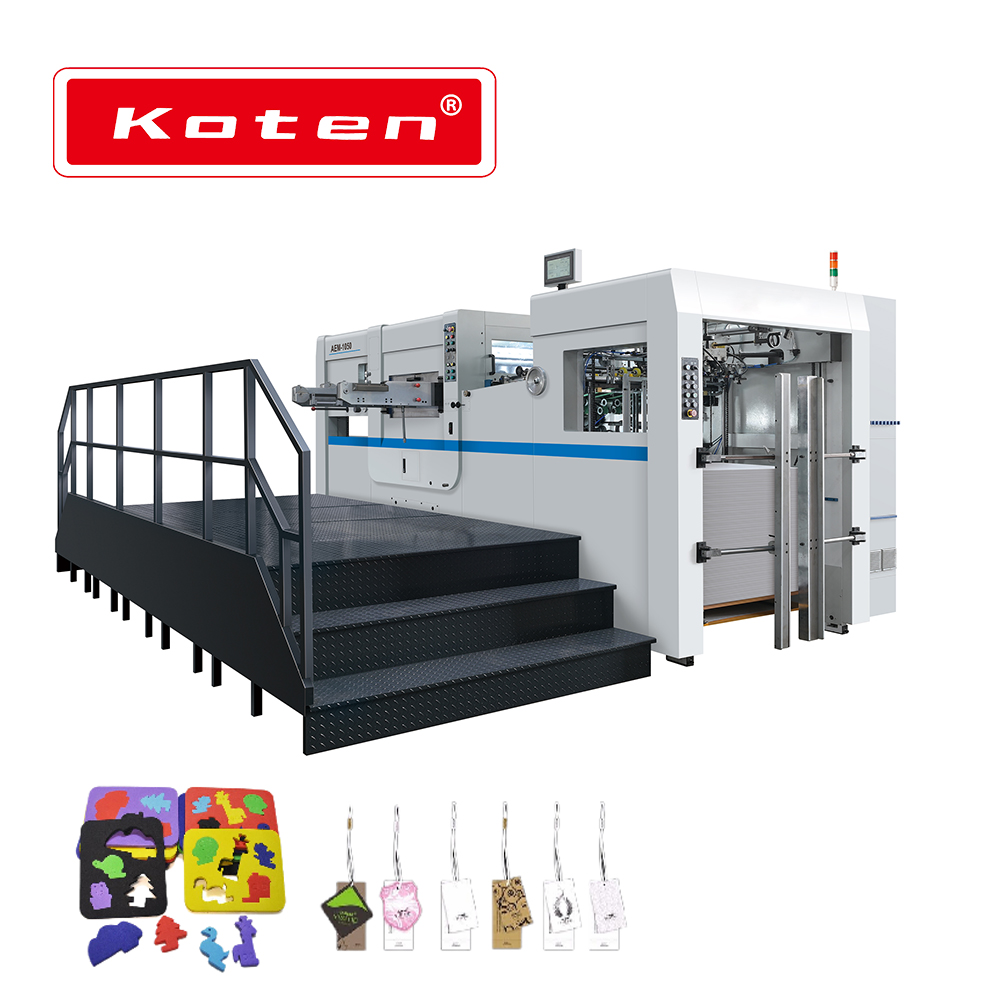

AEM-1050
Koten
AEM-1050
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
2284
| Quantity: | |
|---|---|
1. Platen press is driven by Taiwan TECO main motor with Panasonic inverter; the running of complete machine is controlled by PLC centralized controlling system which can automatically examine the working status and test unusual status as well as record the working condition. According to the Europe Safety Standard, we design reasonably to make the operability and safety perfect combination.
2. Advanced alarm system of starting up will remind operator to leave the unsafe area. Automatically detecting whole process, if malfunction, non-paper or paper stuck, the pneumatic clutch will separate and stop automatically which reduce the waste of paper, protect the staff and equipment.
3. Elaborate pre-packed device and paper feeding & delivery non-stop devices reduce the time of stacking, improve the efficiency of machine and increase your income.
4. Selected European, Japanese, Taiwan electrical and pneumatic components improve the stability of the machine and reduce the frequency of inanimateness.
5. Mainframe and base adopt high strength spheroidal graphite iron QT500-7 which is accurately processed by numerical control center, guarantee the machine run stably in long time when bearing 200T large pressure. The cores of the platen press machine such as crankshaft, worm gear and so on, are all imported high-class alloy steel, which are processed by quenching and high temperature tempering with a long working life.
6. Lubrication system for core parts is equipped with display device for oil pressure and alarming device for insufficient pressure of oil and air.
7. Supply long-term and complete technical training as well as prompt free maintains for one year, guarantee that our clients can fully master the production technology of our equipment. Our machine is with Perfect design, accurate installation, high stability, high security, low noise.
Paper Feeding Section: feeder and conveyor table
1. The wall plate of feeder is made of cast iron, which is more stable while high speed running.

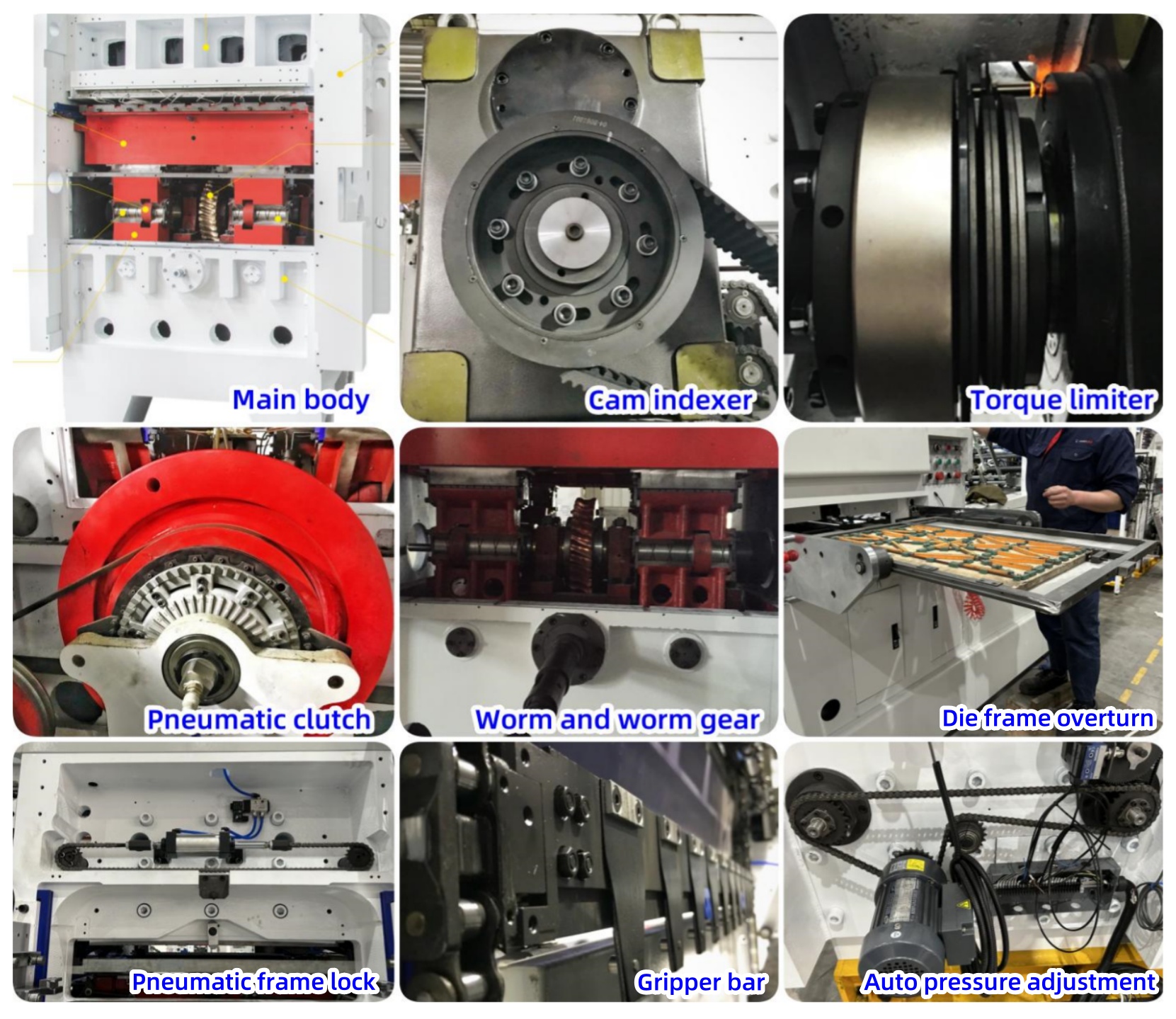

Die cutting section
1.Main body adopts high-strength ductile iron QT500 with special casting process. The Ni-Cr-Mo Alloy crankshaft with special craft process treatment and super wear-resistant worm and gear.
2. High pressure automatic oil motor with filter and cooling fan recycles the oil to lubricate the main transmission parts (crankshaft, worm and gear). And the auto oil pump lubricates all of the necessary parts (gear, chains, etc.)
3. Big flywheel with the pneumatic clutch guarantees high precision when machine is high speed running.
4. Automatic pressure of die cutting adjustment system, operator just need to set value on touch screen to adjust pressure.
5.Human-friendly design for die and liner plate (Manganese Steel, HRC50-53) changing. Die frame can be overturned and locked pneumatically.
6. High-precision cam indexer with torque limiter and synchronous belt to control the gripper bars to deliver paper in accurate position stably when high speed running.
7. High-strength Ti-Al alloy grippers and wear-resisting chains for gripper bar.

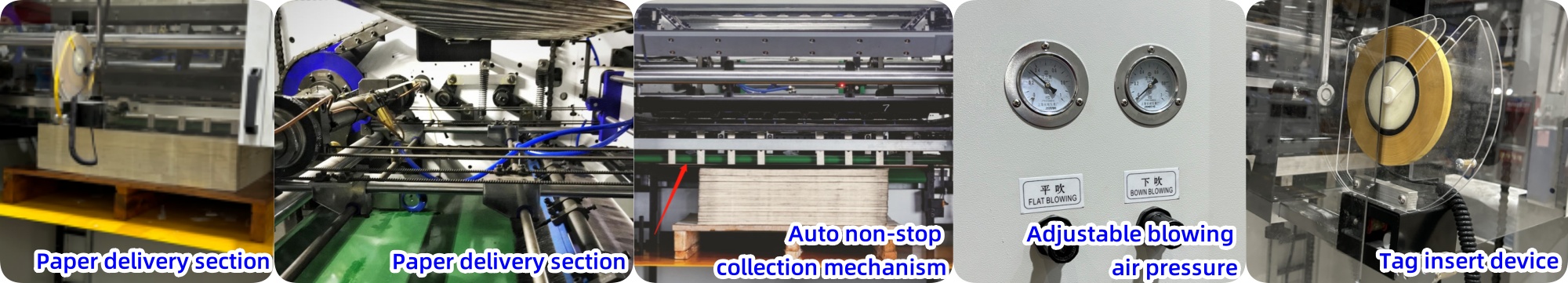

Paper Delivery Section
1.Automatic aligning device, adjustable air blower and hairbrush guarantee paper pile in good order, no matter the paper is thick or thin.
2.Overrun-prevention device: The sheet is moved upwards with the gripper bar; the detection sensor will be initiated and machine will stop.
3. Automatic non-stop paper delivery device is controlled by motor; you just need to press button to operate it.
4.Tag insert device (1 set) to record the sheets quantity.
5. The secondary gripper-open device for stripping(optional)
Electrical box and control system
1.Interface controls are integrated, and numerous electrical switch controls are set in operation screen which is easy operation and easy understanding.
2.PLC centralized controlling system can automatically examine the working status and test unusual status as well as record the working condition.
3. Problem diagnosis function on touch screen, if any problems occur, you can check touch screen to find it.
4. Chinese, English or other any language(optional) on touch screen
5.Electrical components and electrical circuit are in accord with Europe American safety standard.
Heating plate for plastic sheet(OPTIONAL)
For die cutting the plastic sheet, like PVC, PP, PET sheet
1.Separate setting temperature for independent heating zones, thermostatic control.
2.Heating plate is made by heat-resisting and high strength casting iron RTCr0.8.
Stripper Section(OPTIONAL)
1.Stripper is composed of three frames (upper, middle, and bottom frame) which can be pulled out for installation of pins.
2.Stripper bar with pins or male-female plate for waste stripping.
Machine Model | AEM-1050Automatic Die Cutting Machine | |
Machine configuration | Feeder section | √ |
Platen press section | √ | |
Heating plate | OPTIONAL | |
Strippingsection | OPTIONAL | |
Sheet delivery section | √ | |
Max. Sheet Size | 1050×750 mm | |
Min. Sheet Size | 400×370 mm | |
Max. Die-Cutting Size | 1040×730 mm | |
Inner Chase Size | 1144×760mm | |
Die Cutting Plate Size | 1080×738mm | |
Feeding Pile Height | 1550mm | |
Delivery Pile Height | 1400mm | |
Cutting Rule Height | 23.8mm | |
Cutting Plate Thickness | 7mm(5+2 or 4+3 is optional) | |
Stock Range | Paperboard:0.1～2 mm | |
Corrugated paper:＜4 mm | ||
Plastic sheet:0.2～1mm(heating plate is optional) | ||
Die-Cutting Accuracy | ≤±0.1 mm | |
Max. Die-Cutting Pressure | 320 T | |
Max. Machine Speed | 7500 S/H | |
Min Gripper Margin | 7mm | |
Air Supply | 0.6-0.7Mpa, 0.36m³/Min | |
Power Requirement | 3 phases 380V 50HZ | |
Main Motor Power | 11 kw | |
Heating area power(if for plastic cutting, optional) | 24KW (12heating zone, each zone is 2kw) | |
Total Power(without heating) | 17.8KW | |
Total Machine Weight | AEM-1050 | 16T |
AEM-1050Q | 17T | |
Overall Dimension 【L (+ pre-stack)×W(+ platform)×H】 | AEM-1050 | 4700(+1430)×2100(+1900)×2400mm |
AEM-1050Q | 5600(+1430)×2100(+1900)×2400mm | |
| Name | Materials (Brand)/Origin | Name | Materials (Brand)/Origin |
| Main frame structure | QT500-7 spheroidal graphite cast iron | PLC and touch screen | Fatek, Taiwan |
| Platen press base-plate | 75Cr1 alloy steel | Touch Screen | WECON, Taiwan |
| Crankshaft | Cr-Ni-Mo alloy steel,Taiwan | Main motor | Tech, Taiwan |
| Pneumatic electromagnetic valve | Airtac, Taiwan | Gear motor | CPG/Dongli, Taiwan |
| Gripper bar | Ti-Al alloy, Taiwan | Vacuum pump | Becker, Germany |
| Gripper teeth | Manganese steel, Taiwan | Inverter | Panasonic, Japan |
| Cam indexing unit | Handex, Taiwan | Encoder | Omron, Japan |
| Main transmission chain | TYC, Taiwan | Fiber optic sensor | Panasonic, Japan |
| Main key bearing | NSK,Japan | photoelectric sensor | Panasonic, Japan |
| AC contactor | Schneider, France | Relay | Schneider, France |
| Breaker | Schneider, France | Button | Schneider, France |
Note: According to the needs of product optimization configuration, the supplier/origin of some components will be adjusted appropriately without prior notice. The seller guarantees that the parts are of the same grade before and after the adjustment, and will not have a negative impact on the goods under the contract. Thank you!
