AEM-800
Koten
AEM-800
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
1284
Availability: | |
---|---|
Quantity: | |
★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision intermittent mechanism, high cutting precision, running steadily.
★ Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate。
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment and trouble-shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

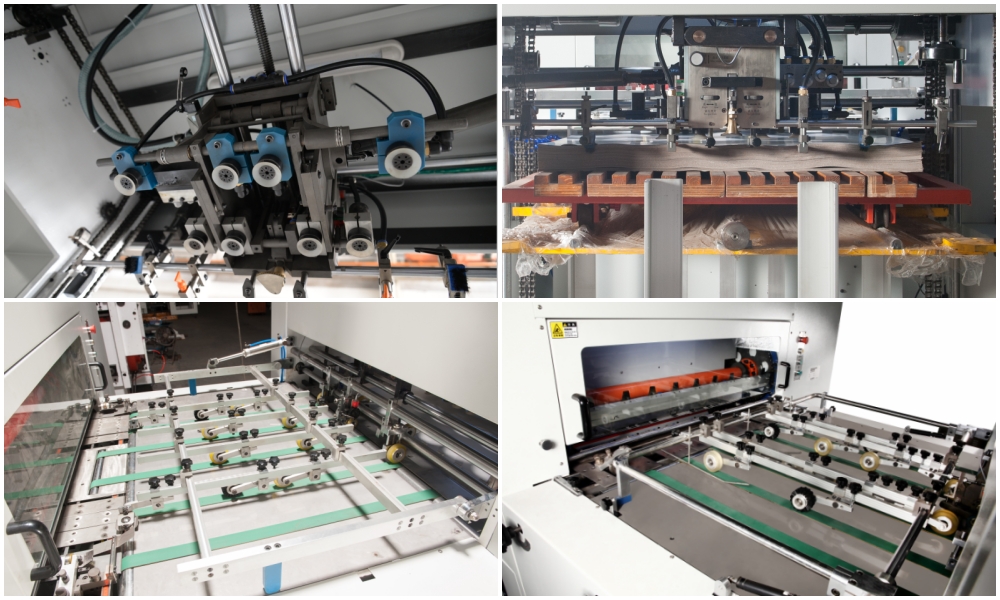

1. Feeding section
1.1 High speed and strength 4-suck-4 forwarder feeder, the angle of the nozzle can be adjusted according to the paper condition, it ensure that the thin thick and corrugated paper can be fed smoothly.
1.2 Both side blower device, make sure the paper can be separated and the paper be fed smoothly.
1.3 Wall plate for feeder is cast iron, stable and fit for high speed running.
1.4 Electro mechanical double sheet detector can reduce the waste.
1.5 Both side lay can be used both for pull and push function, equipped with opto-electronic sensor.
1.6 The press roller and the brush wheels can be integrated adjusted, improve the efficiency.
1.7 Anti-worn PU press roller.
1.8 Non-stop feeding device.
2. Die cutting section:
2.1 The pressing section is made of high strength cast iron QT500, has high strength and never deform.
2.2 Special processed alloy crankshaft.
2.3 Extra anti worn worm and worm gear.
2.4 Pneumatic clutch, and imported rotary joint.
2.5 Oil pressure and air pressure alarm system, protect the machine.
2.6 High accuracy cam box, equipped with synchronized belt and torque overload controller.
2.7 Chase detector, increase the running accuracy; pneumatic chase lock device, electrical pressure adjustment, and convenient chase turning device.
2.8 Hi hardness die cutting plate(HRC50-53).
2.9 Imported pre-stretched gripper chain, increase the accuracy and stability, special side positioning.
3. Delivery section:
3.1 Automatic aligning device, double side blower device makes sure the thin and thick paper can be delivered neatly.
3.2 The touch screen at the delivery section indicate the running condition, the operations can be done on it.
3.3 There is a control panel at the delivery section, more convenient for operation.
3.4 The opto-electronic sensor at the delivery section can make sure the delivery smooth and neat.
3.5 Delivery automatic control system.
3.6 Automatic non-stop delivery device.
3.7 Gripper chain protection device.
3.8 Delivery fault alarm device.
3.9 Equipped with tag insert and counter.
3.10 Equipped with gripper bar drive chain tensioner buffer device.
AEM-800 Automatic flatbed die cutting machine | |
Max sheet size: | 820 x 620 mm |
Min sheet size: | 340 x280 mm |
Max cutting size | 770 x 600 mm |
Die chase inner size: | 820 x 628 mm |
Cutting plate size: | 826 x 628 mm |
Min gripper margin: | 7 mm |
Cutting precision: | ≤±0.1 mm |
Max cutting pressure: | 200 T |
Max cutting speed: | 7000 S/H |
Feeding pile height: | 1150 mm |
Delivery pile height: | 1000 mm |
Application: | Cardboard: <0.1-2mm Corrugated paper:<4mm |
Main motor power: | 11KW |
Total power: | 16.25KW |
Dimension: | 4350(+1360) x 2000(+1680) x 1880 mm |
Weight: | 9T |
No. | Item | Brand | Origin | No. | Item | Brand | Origin |
1 | Main structure | QT500-7 ductile iron | China | 15 | Linear guide rail | HIWIN | Taiwan |
2 | Cutting plate | 75Cr1alloy steel | Germany | 16 | Fastener | GEMYEAR | Taiwan |
3 | Worm, Worm gear | Xingtang | China | 17 | Invertor | Panasonic | Japan |
4 | Crankshaft material | Ni-Cr-Mo alloy | China | 18 | HMI | TAISEE | Taiwan |
5 | Gripper Bar | Aluminum alloy | China | 19 | Sensor | Panasonic | Japan |
6 | Gripper | Imported manganese steel | China | 20 | PLC controller | FATEK | Taiwan |
7 | Cam box | Handex | Taiwan | 21 | Encoder | Kubler | Germany |
8 | Main transmission chain | TYC | Taiwan | 22 | Proximity switch | FOTEK | Taiwan |
9 | Rotary joint | SMC | Japan | 23 | Relay | SCHNEIDER | France |
10 | Pneumatic solenoid valve | AIRTAC | Taiwan | 24 | Optoelectronic switch | Panasonic | Japan |
11 | Main motor | TECO | Taiwan | 25 | Button | SCHNEIDER | France |
12 | Feeding pile motor | DUNGLEE | Taiwan | 26 | AC contactor | SCHNEIDER | France |
13 | Delivery pile motor | DUNGLEE | Taiwan | 27 | Circuit breaker | SCHNEIDER | France |
14 | Bearing | NSK | Japan | 28 | Vacuum pump | Tongyou | China |
★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision intermittent mechanism, high cutting precision, running steadily.
★ Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate。
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment and trouble-shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
1. Feeding section
1.1 High speed and strength 4-suck-4 forwarder feeder, the angle of the nozzle can be adjusted according to the paper condition, it ensure that the thin thick and corrugated paper can be fed smoothly.
1.2 Both side blower device, make sure the paper can be separated and the paper be fed smoothly.
1.3 Wall plate for feeder is cast iron, stable and fit for high speed running.
1.4 Electro mechanical double sheet detector can reduce the waste.
1.5 Both side lay can be used both for pull and push function, equipped with opto-electronic sensor.
1.6 The press roller and the brush wheels can be integrated adjusted, improve the efficiency.
1.7 Anti-worn PU press roller.
1.8 Non-stop feeding device.
2. Die cutting section:
2.1 The pressing section is made of high strength cast iron QT500, has high strength and never deform.
2.2 Special processed alloy crankshaft.
2.3 Extra anti worn worm and worm gear.
2.4 Pneumatic clutch, and imported rotary joint.
2.5 Oil pressure and air pressure alarm system, protect the machine.
2.6 High accuracy cam box, equipped with synchronized belt and torque overload controller.
2.7 Chase detector, increase the running accuracy; pneumatic chase lock device, electrical pressure adjustment, and convenient chase turning device.
2.8 Hi hardness die cutting plate(HRC50-53).
2.9 Imported pre-stretched gripper chain, increase the accuracy and stability, special side positioning.
3. Delivery section:
3.1 Automatic aligning device, double side blower device makes sure the thin and thick paper can be delivered neatly.
3.2 The touch screen at the delivery section indicate the running condition, the operations can be done on it.
3.3 There is a control panel at the delivery section, more convenient for operation.
3.4 The opto-electronic sensor at the delivery section can make sure the delivery smooth and neat.
3.5 Delivery automatic control system.
3.6 Automatic non-stop delivery device.
3.7 Gripper chain protection device.
3.8 Delivery fault alarm device.
3.9 Equipped with tag insert and counter.
3.10 Equipped with gripper bar drive chain tensioner buffer device.
AEM-800 Automatic flatbed die cutting machine | |
Max sheet size: | 820 x 620 mm |
Min sheet size: | 340 x280 mm |
Max cutting size | 770 x 600 mm |
Die chase inner size: | 820 x 628 mm |
Cutting plate size: | 826 x 628 mm |
Min gripper margin: | 7 mm |
Cutting precision: | ≤±0.1 mm |
Max cutting pressure: | 200 T |
Max cutting speed: | 7000 S/H |
Feeding pile height: | 1150 mm |
Delivery pile height: | 1000 mm |
Application: | Cardboard: <0.1-2mm Corrugated paper:<4mm |
Main motor power: | 11KW |
Total power: | 16.25KW |
Dimension: | 4350(+1360) x 2000(+1680) x 1880 mm |
Weight: | 9T |
No. | Item | Brand | Origin | No. | Item | Brand | Origin |
1 | Main structure | QT500-7 ductile iron | China | 15 | Linear guide rail | HIWIN | Taiwan |
2 | Cutting plate | 75Cr1alloy steel | Germany | 16 | Fastener | GEMYEAR | Taiwan |
3 | Worm, Worm gear | Xingtang | China | 17 | Invertor | Panasonic | Japan |
4 | Crankshaft material | Ni-Cr-Mo alloy | China | 18 | HMI | TAISEE | Taiwan |
5 | Gripper Bar | Aluminum alloy | China | 19 | Sensor | Panasonic | Japan |
6 | Gripper | Imported manganese steel | China | 20 | PLC controller | FATEK | Taiwan |
7 | Cam box | Handex | Taiwan | 21 | Encoder | Kubler | Germany |
8 | Main transmission chain | TYC | Taiwan | 22 | Proximity switch | FOTEK | Taiwan |
9 | Rotary joint | SMC | Japan | 23 | Relay | SCHNEIDER | France |
10 | Pneumatic solenoid valve | AIRTAC | Taiwan | 24 | Optoelectronic switch | Panasonic | Japan |
11 | Main motor | TECO | Taiwan | 25 | Button | SCHNEIDER | France |
12 | Feeding pile motor | DUNGLEE | Taiwan | 26 | AC contactor | SCHNEIDER | France |
13 | Delivery pile motor | DUNGLEE | Taiwan | 27 | Circuit breaker | SCHNEIDER | France |
14 | Bearing | NSK | Japan | 28 | Vacuum pump | Tongyou | China |
