Automatic Flip Flop Pile Turner And Stacker Machine For Flute Laminator

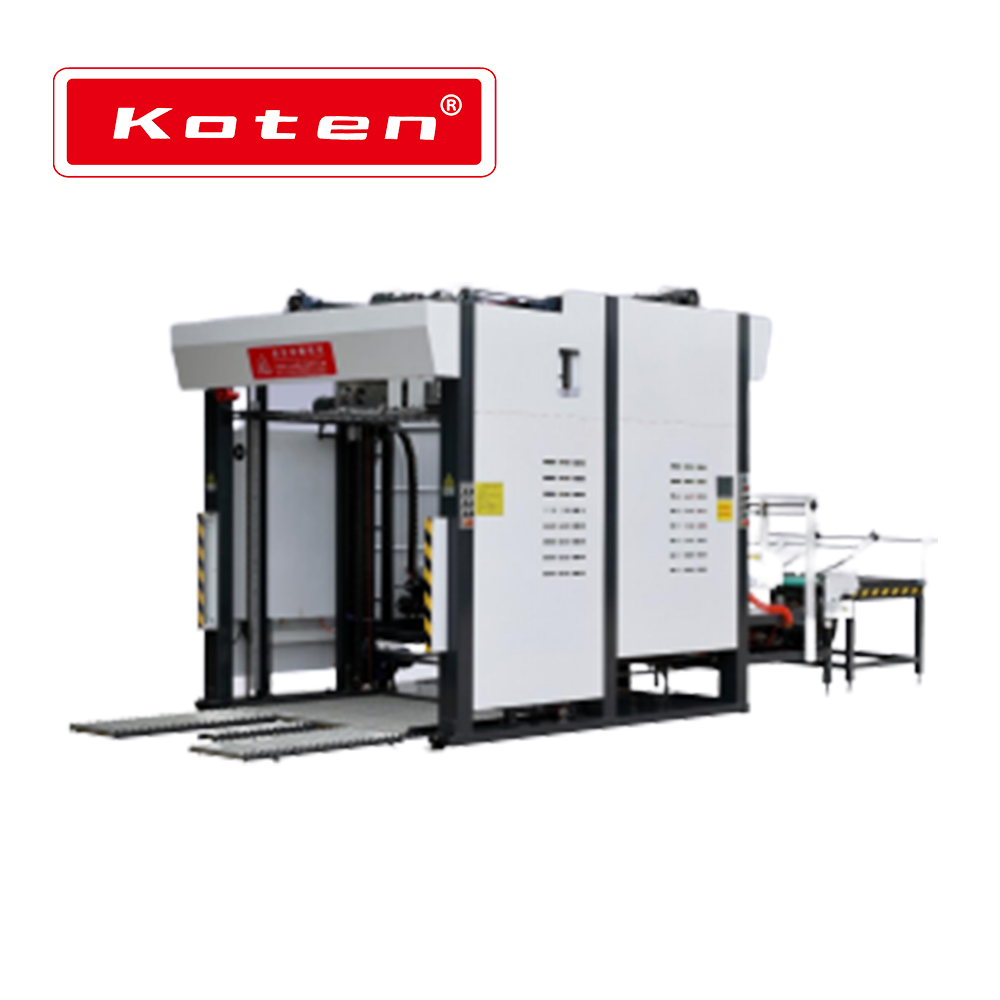

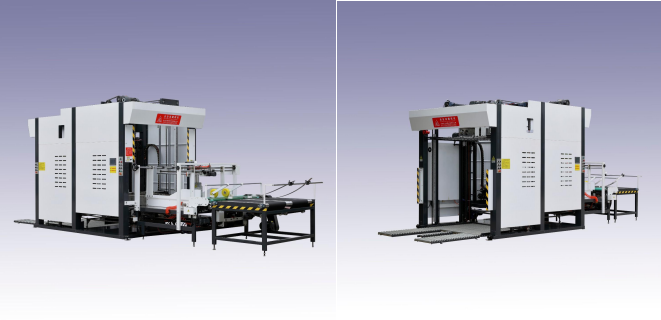

Automatic Flip Flop Pile Turner And Stacker Machine（FW-1450）

1. Conveying Department：

-Automatic paper collect device；

-Left and right baffle adjusting device。

2. Turnover part：

-Automatic lifting turnover device;

-Turn over the upper and lower limit double limit safety device;

-Man machine interface system;

-Limit alarm system;

-Automatic paper pushing device;

-High speed switching automatic, low speed switching point system.

3. Paper receiving department:

-Four side pneumatic paper beating device to ensure smooth and neat paper receiving;

-The safety control electric eye will give an alarm in time if someone enters the equipment during normal operation. Ensure the safety of staff;

-Non stop paper receiving system;

-Automatic hanging plate paper receiving machine, the hanging plate electric eye induction drops automatically.

-Double limit safety device for upper and lower limit of paper receiving hanging plate;

-Maximum paper loading height 1600- 1800mm

4.machine control system：

- machine is controlled by PLC, which is simple to operate and easy to maintain;

-The electric control components are installed centrally and easy to maintain.

5. Auto-Control

-All motors use frequency conversion speed regulation, which is safe and reliable;

-The whole machine is controlled by PLC, which is simple to operate and easy to maintain; -The electric control components are installed centrally and easy to maintain.
