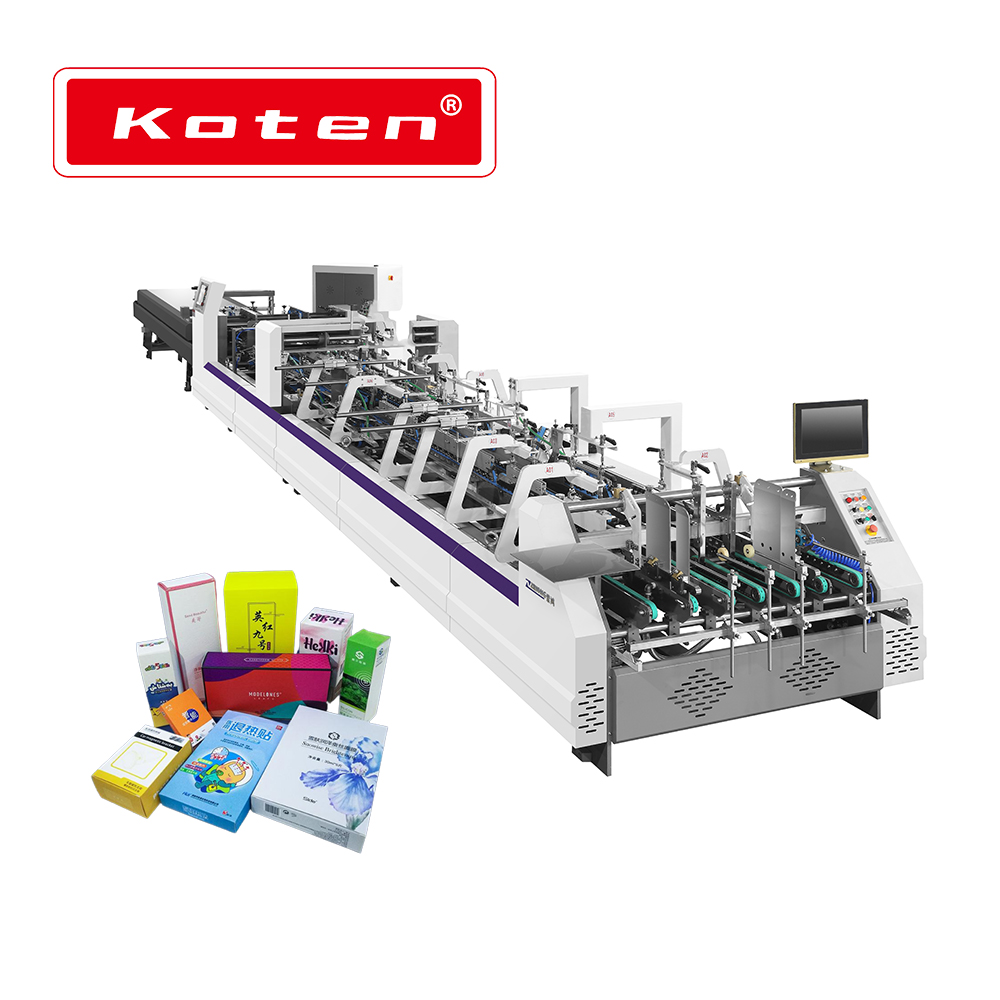

Automatic Folding Gluing Machine（ZH-850/1100PC）
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.

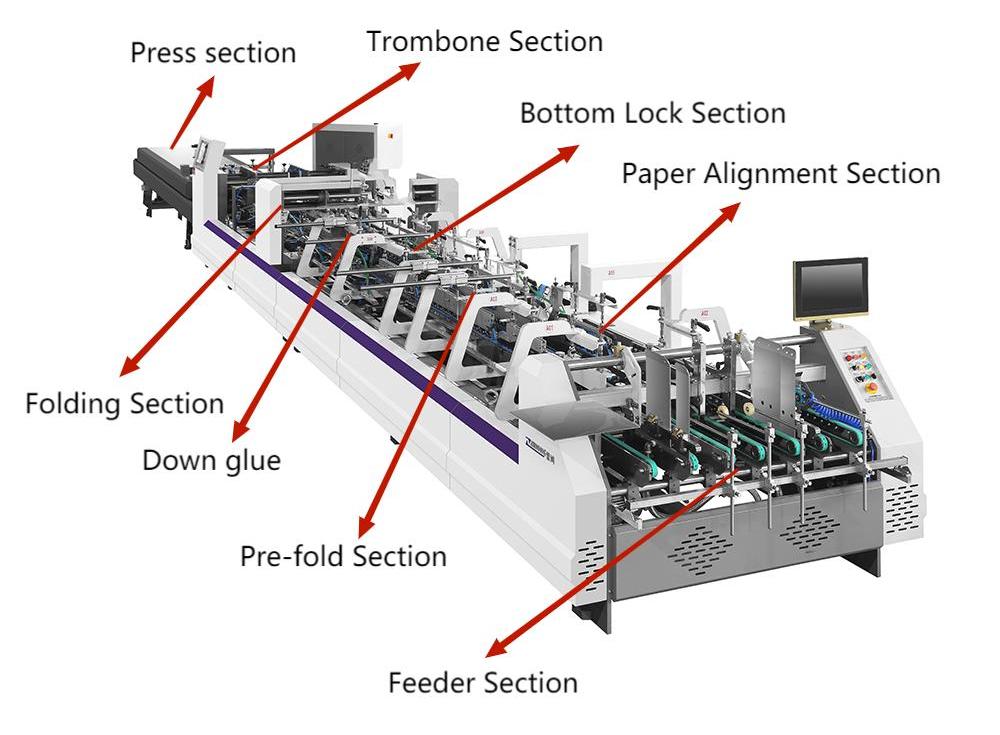

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
| Model | ZH-BH850-PC | ZH-BH1100-PC |
Suitable material | Card board210gsm-850gsm,E,F,N flute corrugated board | |
Max method | Automatic continuous feeding | |
Max mechanical speed | 400m/min | 400m/min |
Overall dimension | 15300*1900*1900mm | 15500*1900*1900mm |
| Weight | 7.8T | 7.8T |
Glue type | Cold glue | Cold glue |
Power consumption | 21KW,380V 50HZ | 21KW,380V 50HZ |
Compressed air | 6 bar,10 m³/h,60 L | 6 bar,10 m³/h,60 L |
Inching speed | 30 m/min | 30 m/min |
Main motor | Siemens |
PLC | LS -South Korea |
Three Inverter system | LS -South Korea |
Two Touch Screen | LS -South Korea |
Feeder belt | NITTA Japan |
Drive Bearing | |
Ribbed belt | Hutchinson (France) |
Plain belt | NITTA Japan |
Circuit Breaker | Schneider |
Rely | Schneider |
Button | Schneider |
Switch power supply | Schneider |
Photo Switch | Panasonic |
