FS1050
KOTEN
FS1050
Negotiate
1
T/T, L/C at sight
1sets/month
Export-standard and sea-worthy steel case
Within 30 days after get the deposit.
1589
| Quantity: | |
|---|---|

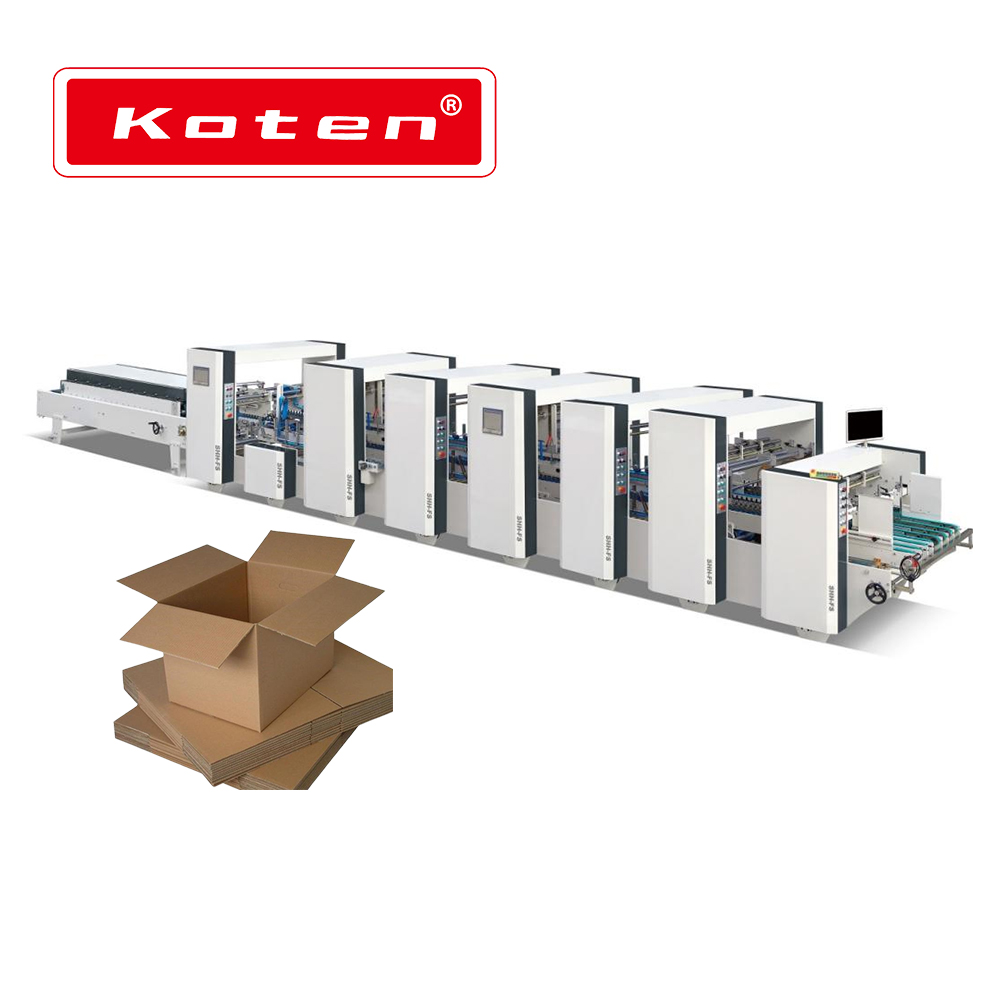

Automatic High Speed 4&6 Corner Folder Gluer Machine（FS1050）

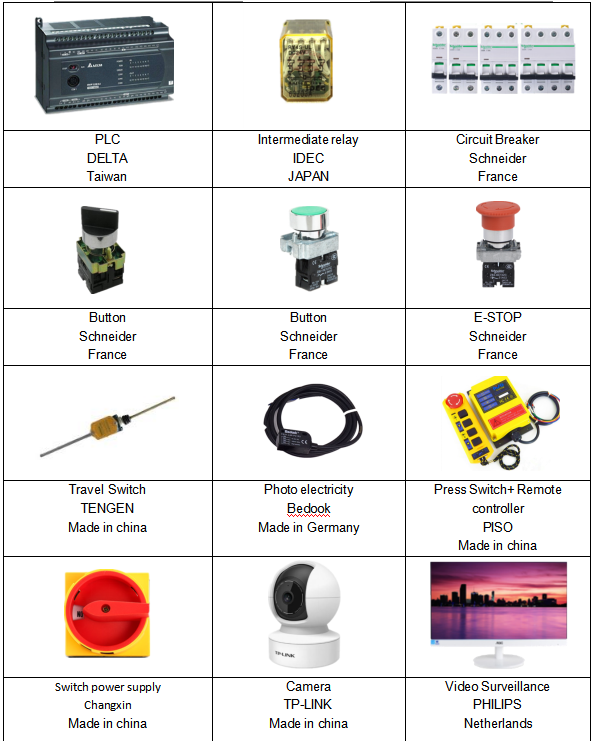

Automatic High Speed 4&6 Corner Folder Gluer Machine,adapt electrical plate adjustment,PLC and imported electronic components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate.This machine is specilized for cardboard and corrugated cartons,its correction fuction make corrugated cartons perfectly meeting the requirments of packing industry.(We can customize for other sizes.)
| Model | FS1050 |
| Paper Material | Cardboard（200-800g）、E-flute/F-flute |
| Max. Liner speed | Max. 260 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued 4&6 corner |
| Glue Material | Water-base cold glue |
| Electric power | 26KW 380V 50HZ 3P |
| Weight | 7500KG |
| Over dimension | 16500 x1700x 1700mm |
Automatic High Speed 4&6 Corner Folder Gluer Machine（FS1050）
Automatic High Speed 4&6 Corner Folder Gluer Machine,adapt electrical plate adjustment,PLC and imported electronic components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate.This machine is specilized for cardboard and corrugated cartons,its correction fuction make corrugated cartons perfectly meeting the requirments of packing industry.(We can customize for other sizes.)
| Model | FS1050 |
| Paper Material | Cardboard（200-800g）、E-flute/F-flute |
| Max. Liner speed | Max. 260 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued 4&6 corner |
| Glue Material | Water-base cold glue |
| Electric power | 26KW 380V 50HZ 3P |
| Weight | 7500KG |
| Over dimension | 16500 x1700x 1700mm |
