SHH-B2A
KOTEN
SHH-B2A
Negotiate
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
7381
| Max. Liner speed: | |
|---|---|
| Quantity: | |

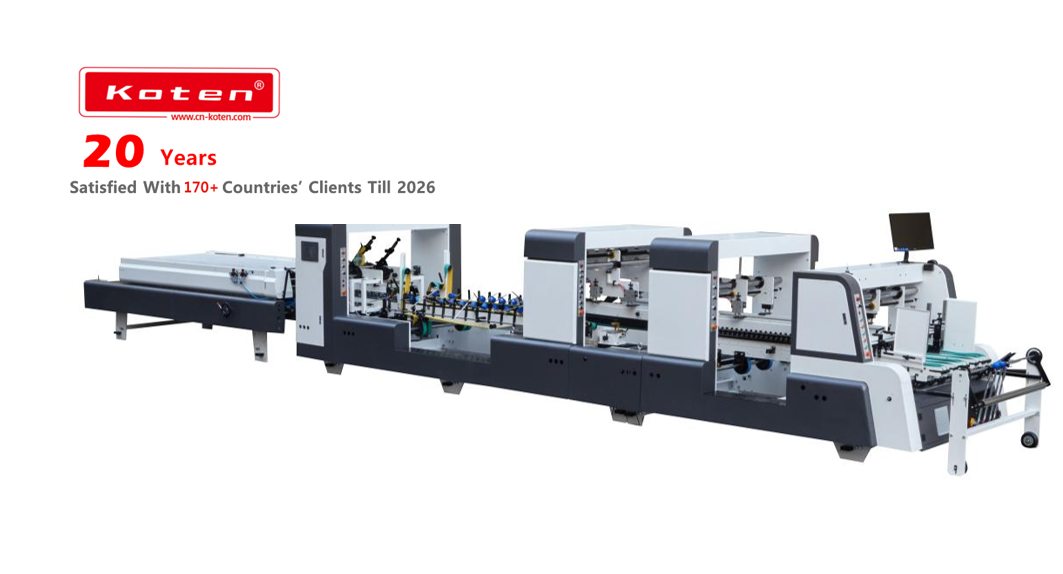

SHH-B2A EXPORT Series folder gluer machine,
- Independent Synchronized motors throughout entire machine for stable running
- Extra wide and strong upper and lower belts specially designed for corrugated boxes
- Motorized carrier system for easy operation
- Upper carrier electrical-driving system and pneumatic pressing system applied for corrugated board
- Special fish tail features designed for corrugated box common problems
(We can customize for other sizes.)
Name | SHH-B2A EXPORT Automatic High Speed Lock Bottom Corrugated Folder Gluer | ||
Model | 1250B2A | 1650B2A | 2050B2A |
Material | Cardboard 200-800GSM A/B/C/E/F | ||
Speed | 300 m/min | ||
Size | 220-1200mm | 220-1600mm | 420-2000mm |
Power | 17.5KW 380V 50HZ 3P | 17.5KW 380V 50HZ 3P | 20KW 380V 50HZ 3P |
Weight | 6000kg | 7000kg | 8000kg |
Dimension | 14500 x2000x 1700mm | 14500x2400x1700mm | 16500x2800x1700mm |
