Automatic High Speed With Spray Examination Papers Packing Machine

Automatic High Speed With Spray Examination Papers Packing Machine from China manufacturer - Koten Machinery
  • FZ-320A

  • Koten

  • FZ-320A

  • Negotiate

  • One set

  • T/T,L/C

  • 5sets/month

  • By strong seaworthy wooden cases.

  • Within 30 days after receipt of the deposit.

  • China

  • 4698

Availability:
Quantity:
sharethis sharing button

Products Description

 Automatic High Speed With Spray Examination Papers Packing Machine(FZ-320A)

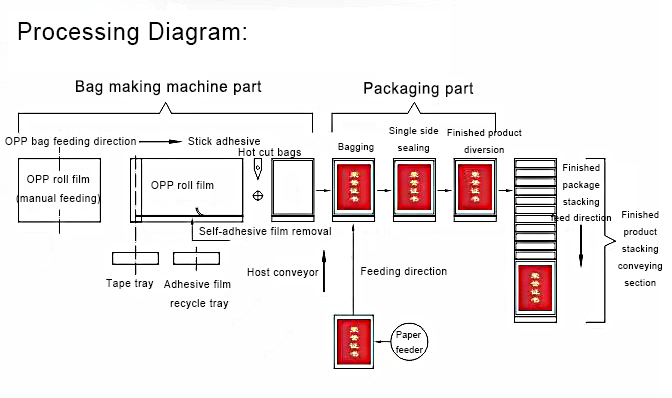

The machine is a dedicated device for fully automatic bag packing for product card, manual, certificate of honor, comic book, document bag, envelope, shingle, notebook, hangtag, and heterogenic product. lt has such functions as folding in half, bag making, counting, trimming, gilding, labeling, sticking adhesive label, bagging and hot sealing and cutting.The whole action is of modern movement module control with PLC multiaxidl servo execution to realize memory function of PLC specification and dimension data. Convenient data commisioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.

Quantity fixing: With Quantity counting function, according to the customer requirement, filling the fixed quantity inside the bag.

Bag making: With bag making machine, only feeding the plastic film, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the productions efficiency, and create the benefit.

Bag filling: The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic ect, replace the manual operation absolutely.

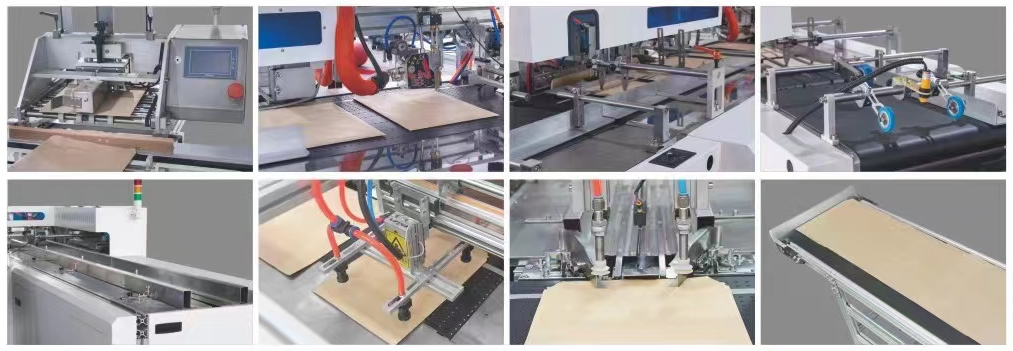

Details Images

Automatic High Speed With Spray Examination Papers Packing MachineAutomatic High Speed With Spray Examination Papers Packing Machine

Parameters


Max speed

20-40bag/min

Max size of packing

260*380mm

Min size of packing

160*220mm

Thickness of packing

30mm

Paper gram count

100-400g

Paper Size

Max 320*420mm

Min 150*150mm

Motor power

10kw

Machine weight

2200kg

Dimension of machine

4500*3300*1650mm

Total pocket width of both sides

±7-8mm

Configuration

No.

Configuration

Origin

Brand Model

1

PLC programmable controller

Japan

Panasonic

2

Touch screen

Taiwan

WEINVIEW

3

Frequency inverter

China

BEST

4

Servo motor

France

Schneider

5

Electrical switch

China

CHNT

6

Solenoid valve

Japan

SMC

7

Pneumatic cylinder

Taiwan

AirTAC

8

Color code

Japan

Panasonic

9

Switch

Taiwan

MEAN WELL

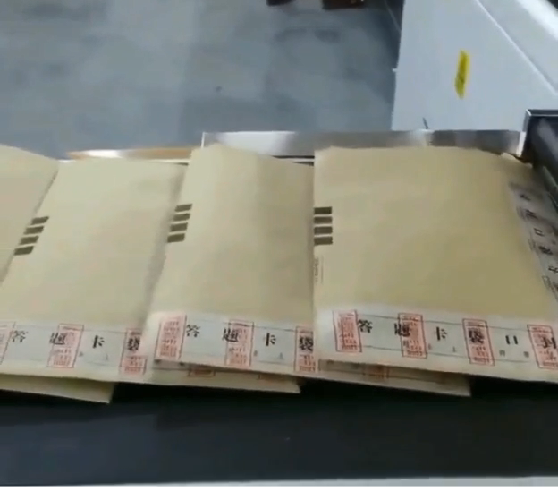

Application

Automatic High Speed With Spray Examination Papers Packing Machine
