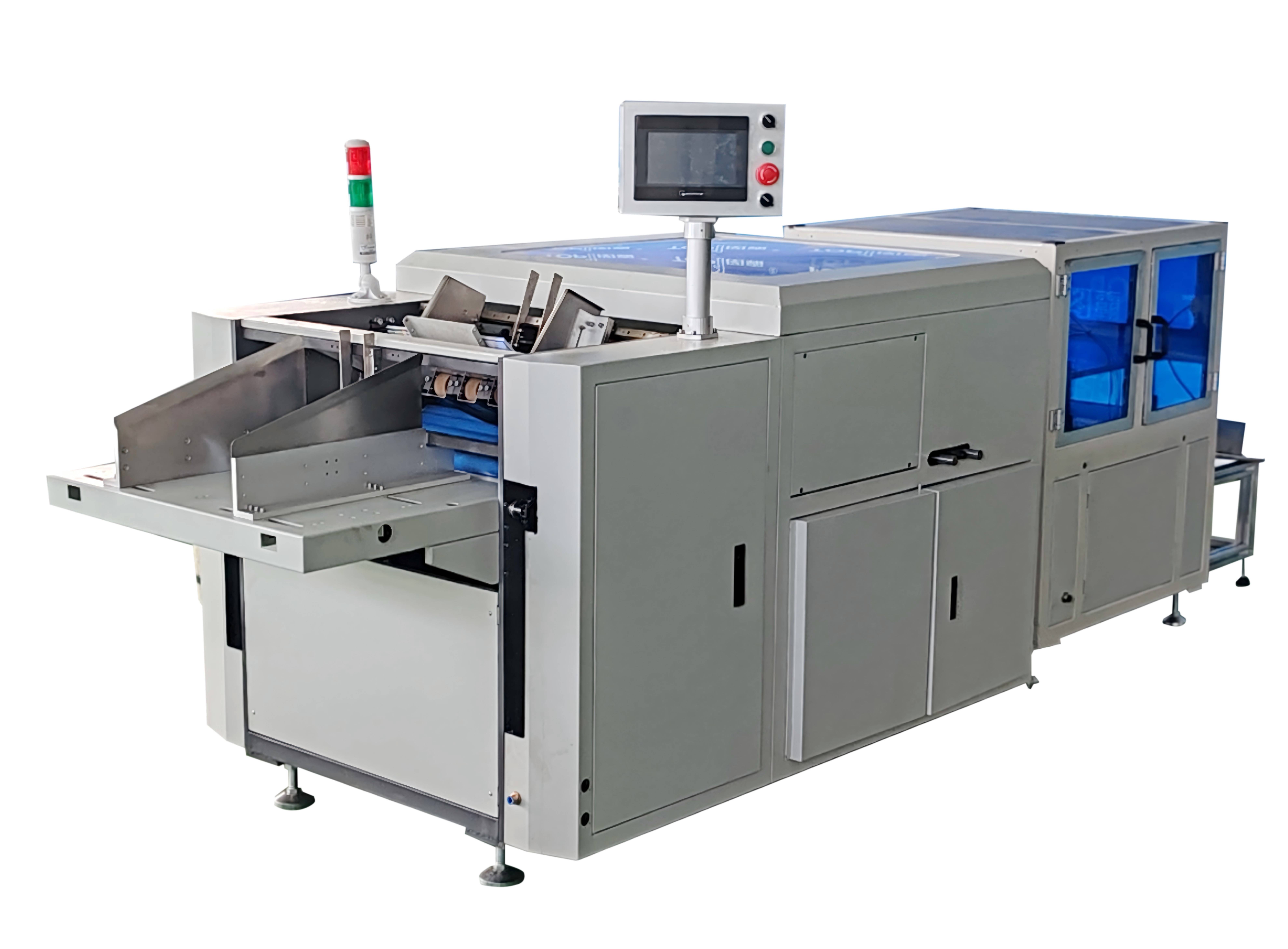

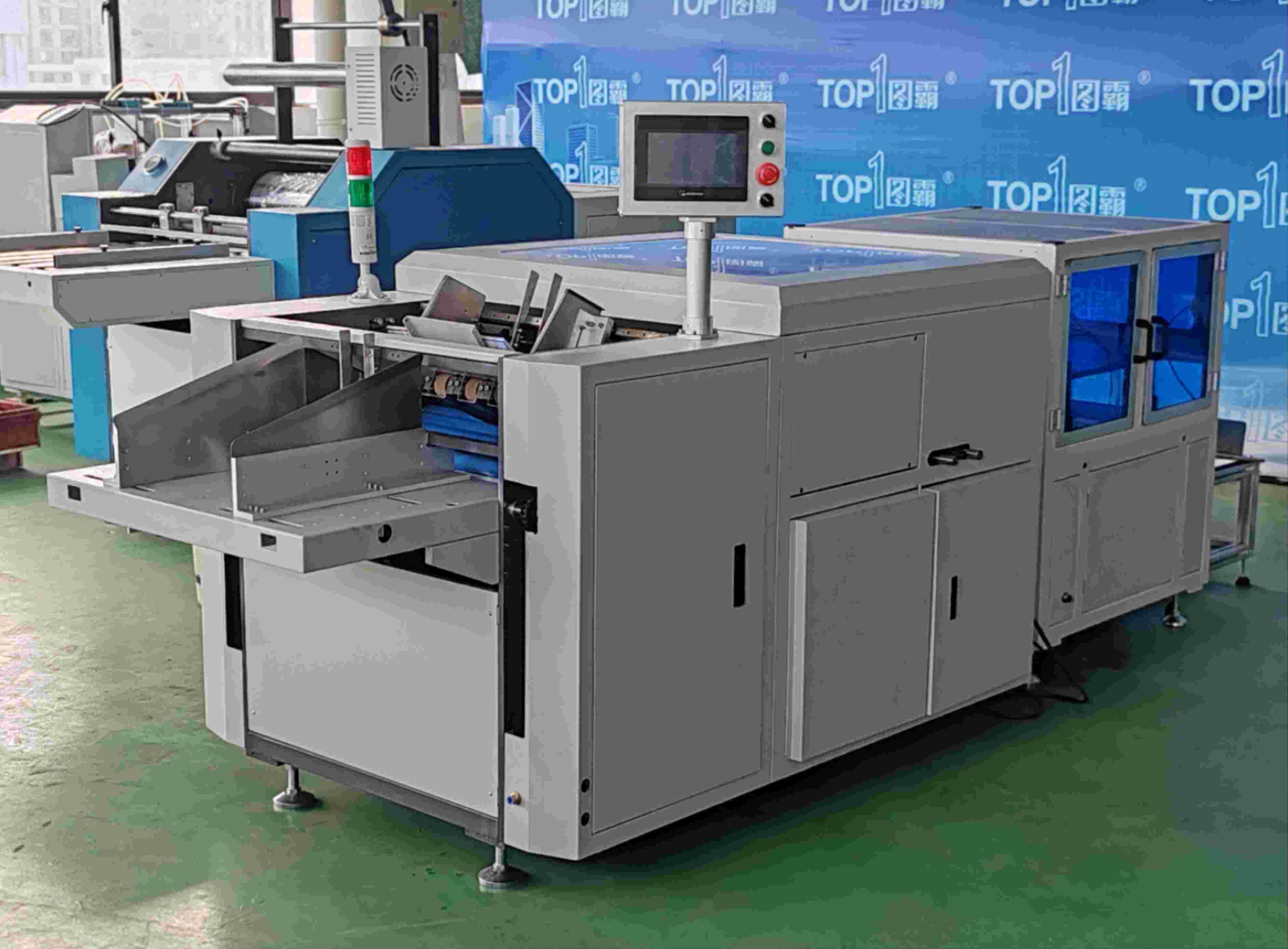

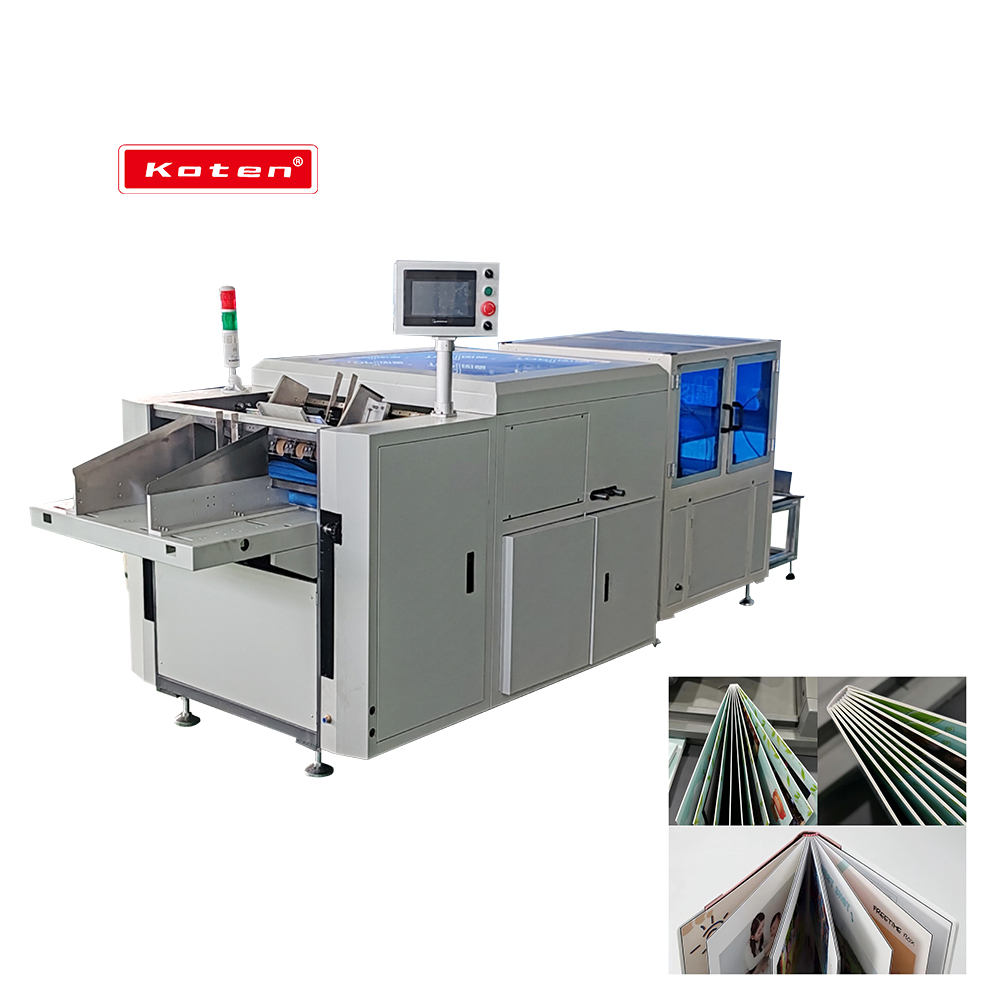

Automatic Lay flat Photo Album Making Machine TBS480

Introduction.

1. User-Friendly Interface: The machine comes with a simple and intuitive interface, making it

easy for users to operate. With just a few clicks, users can set the size, number of pages, and

number of albums they want to produce.

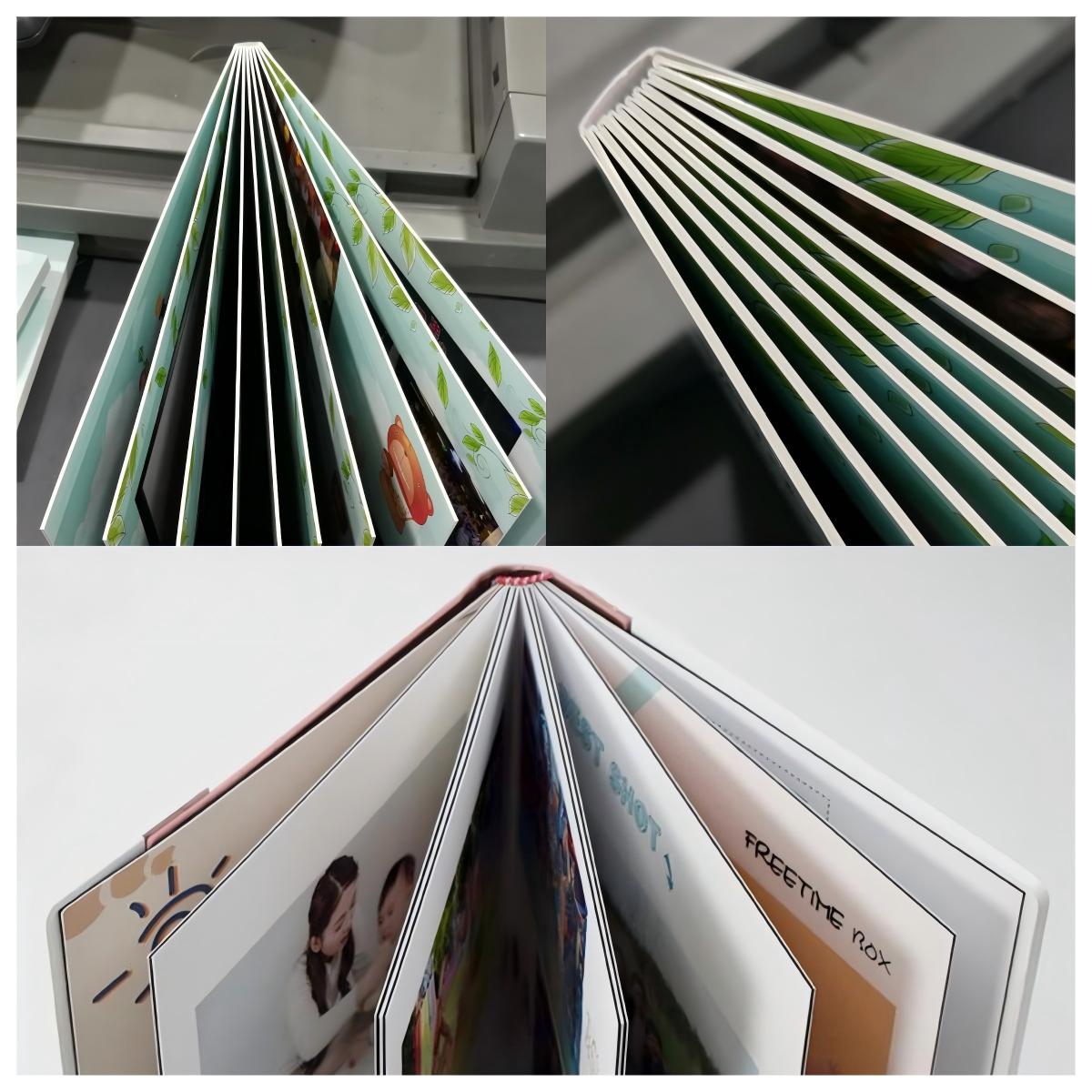

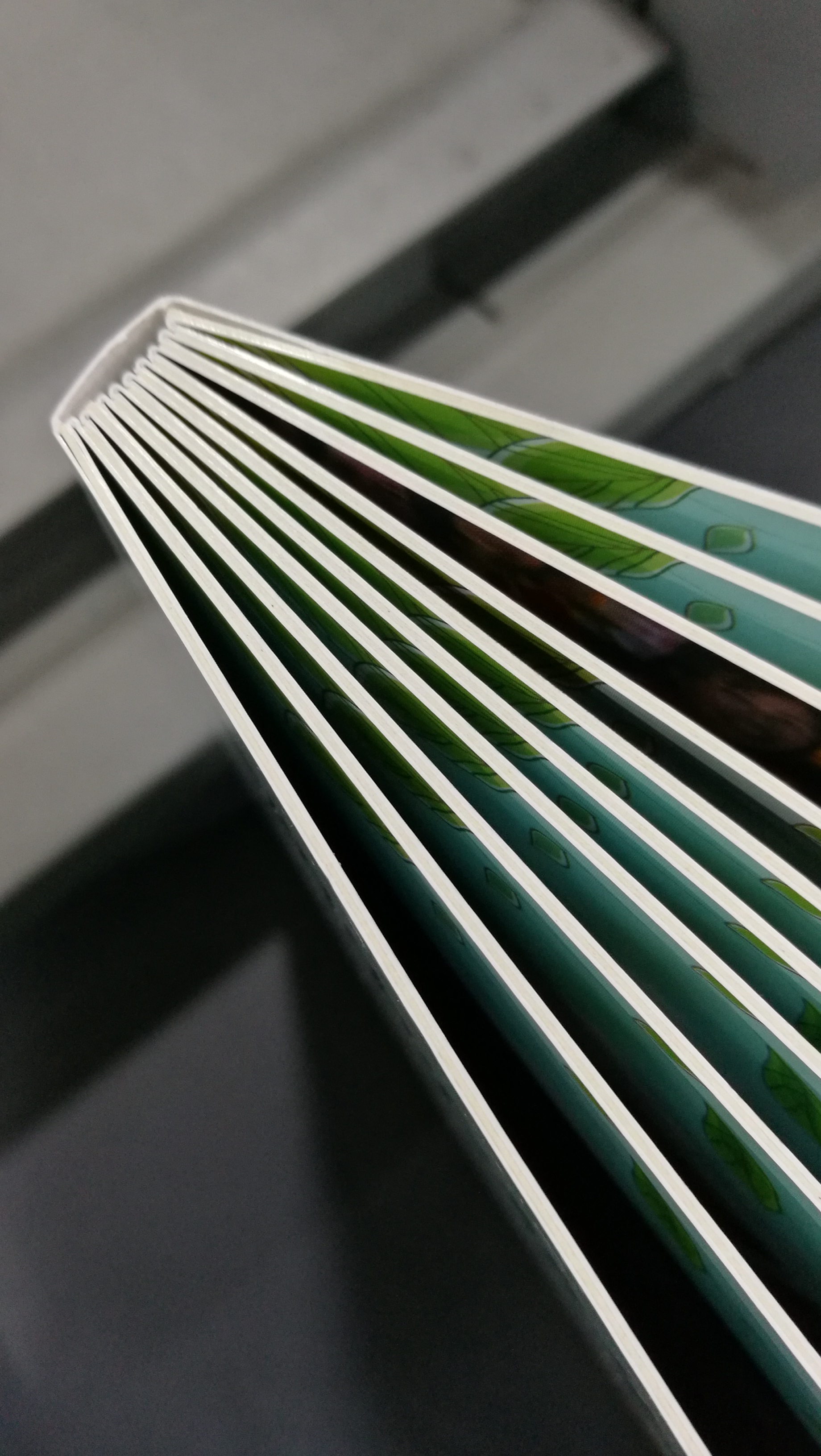

 2. Layflat Technology: The machine's layflat technology ensures that photos are displayed

seamlessly across two pages, without any distortion or gaps.

 3. Modular Design: The machine's modular design allows for easy customization and

maintenance. If a particular module malfunctions, it can be easily replaced without affecting the

functioning of the other modules.

 4. Multiple Material Compatibility: The machine is capable of using various materials such as

cardstock, PVC, and other materials,allowing for greater flexibility in album creation.

 5. High-Quality Output: The machine produces high-quality albums, with clear and vivid images,

making it perfect for both personal and professional use.

 6. Adjustable Thickness: The machine can handle materials with varying thicknesses, ranging

from 0.3mm to 1mm, allowing users to customize the albums according to their needs.

 7. Fast Production Speed: With its latest upgrades, the machine is capable of producing up to

60 albums per hour, making it a valuable addition to any photo album production line.

Product Introduction

1. Feeding

2. Creasing and folding

3. Folded paper gluing

4. Insert  sheet gluing

5. Binding

6. Cold pressing

Model	TBS 480
Photo Album Specification	max 480*380 mm
Paper Sheet Thickness	min 250g-max 450g
Cardboard Thickness	min 300g-max 600g
Speed	80-100 cycles/minute
Voltage	220v-50/60hz 2ph
Power	3 KW
Applicable Glue	Water Glue
Net Weight	1300 KG
Dimention	1300x1400x4300mm
