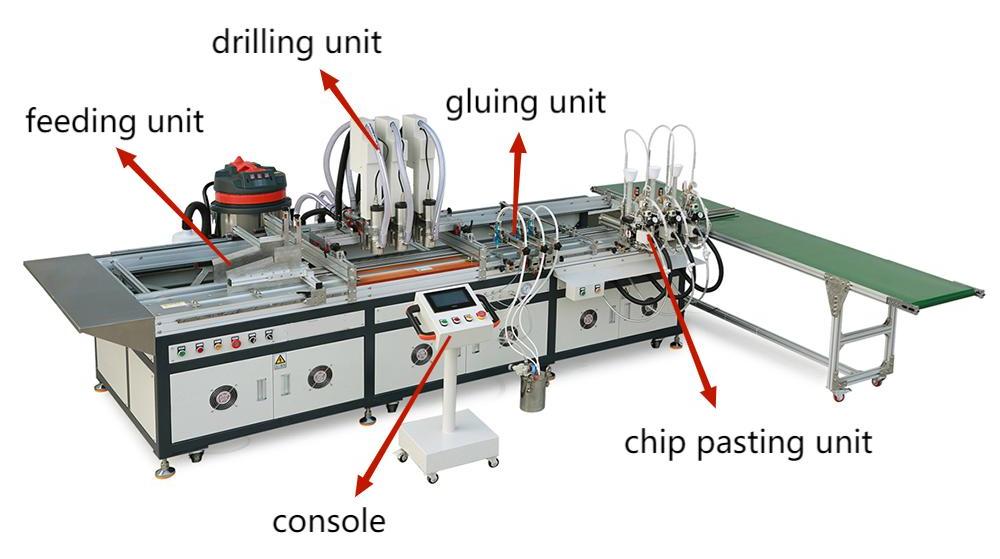

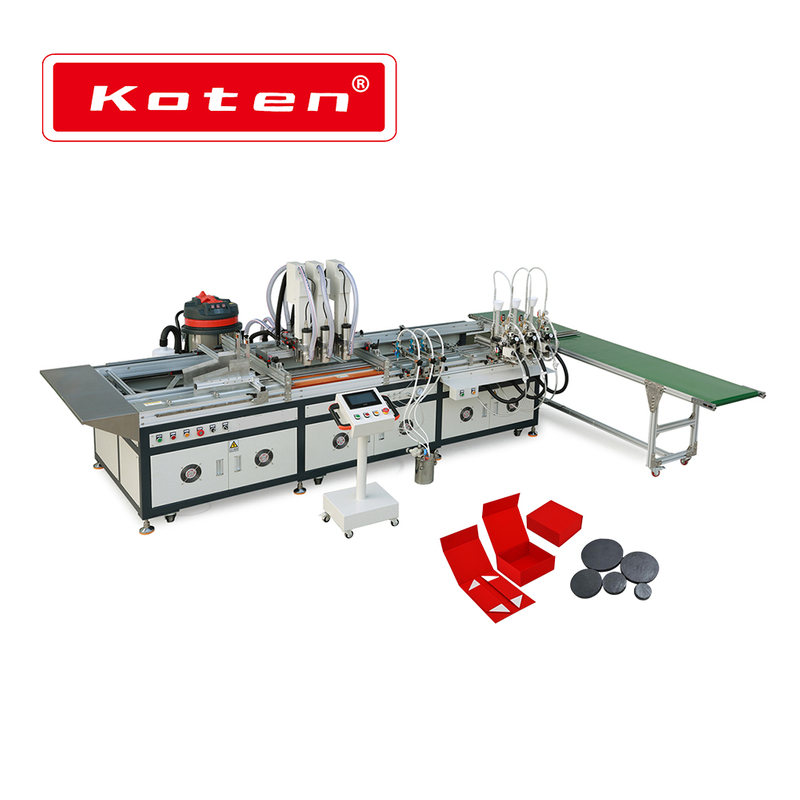

Automatic Magnet Pasting with Drill Machine（SW-1000Z）

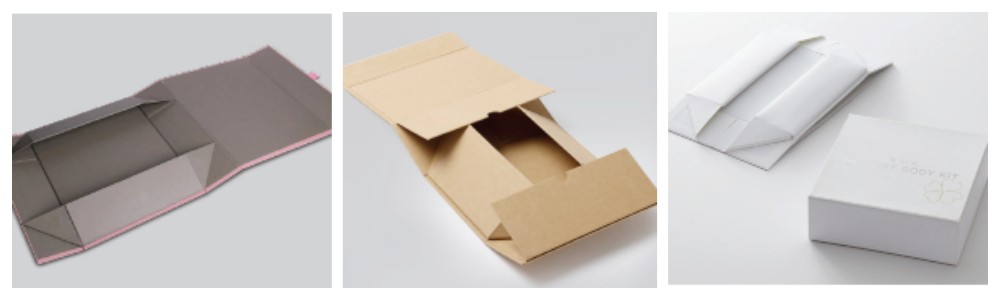

This type of equipment is suitable for the automatic production of many gift boxes such as book boxes. It has the functions of automatic feeding, automatic drilling, automatic glue dispensing and automatic magnet placement. Instead of the traditional manual hole picking and magnet placement mode, the output can reach 1500 ~ 1800pcs/ hour. With high efficiency, high stability, high pass rate, small footprint and other advantages by customers!
| Model | SW-1000Z |
| Heap height | 200mm |
| Cardboard minimum size | 900*600mm |
| Cardboard size(L*W) | 900×450mm |
| Magnetic disc diameter | 8-20mm |
| Product speed | 20-30pcs/min |
| Positioning accuracy | ±0.1mm |
| Card board thickness | 1-3mm |
| Hole spacing | Min80mm / max500mm |
| Glue tank capability | 1L |
| Pressure | 0.5-0.8Mpa |
| Supply voltage | 220V |
| Rated frequency | 50Hz |
| Constant power | 5kw |
| Machine dimension(mm) | L3800*W1800*H1600mm |
| Weight | 780kg |
