Automatic Paper Box Window Patching Machine

Automatic Paper Box Window Patching Machine

Name: Automatic Paper Box Window Patching Machine
Brand: Koten
Rating: 5.0 (70 reviews)

Model:
TC-650A1080A
Brand:
Koten
Model:
TC-650A/1080A
FOB Price:
Negotiable
Min.Order Quantity:
One set
Payment Terms:
T/T, L/C at sight.
Supply Ability:
50sets/month
Packaging:
By strong seaworthy wooden cases.
Delivery Time:
Within 30 days after get the deposit.
Place Of Origin:
China
Views:
263

Quantity:
Availability:





Inquire Add to Basket

Product Description

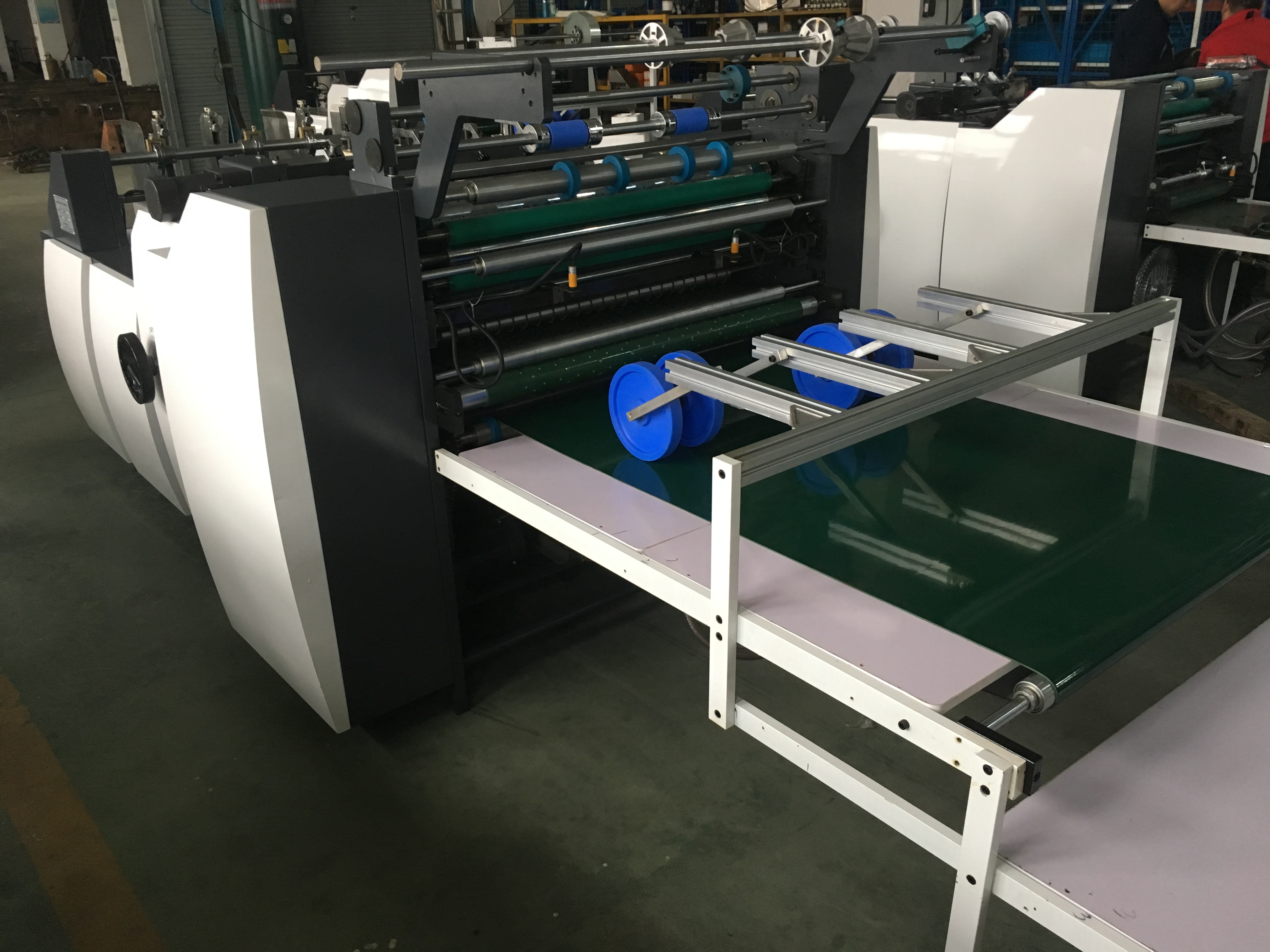

Paper Box Window Patching Machine

Description:
Automatic case window Pasting Machine can sealing glue on all kind of case window, and process it. Accurate fixed position automatic increment glue transmission position, and Automatic calculation the numerical adjust the efficiency is high. It is a nice machine to do the case window.

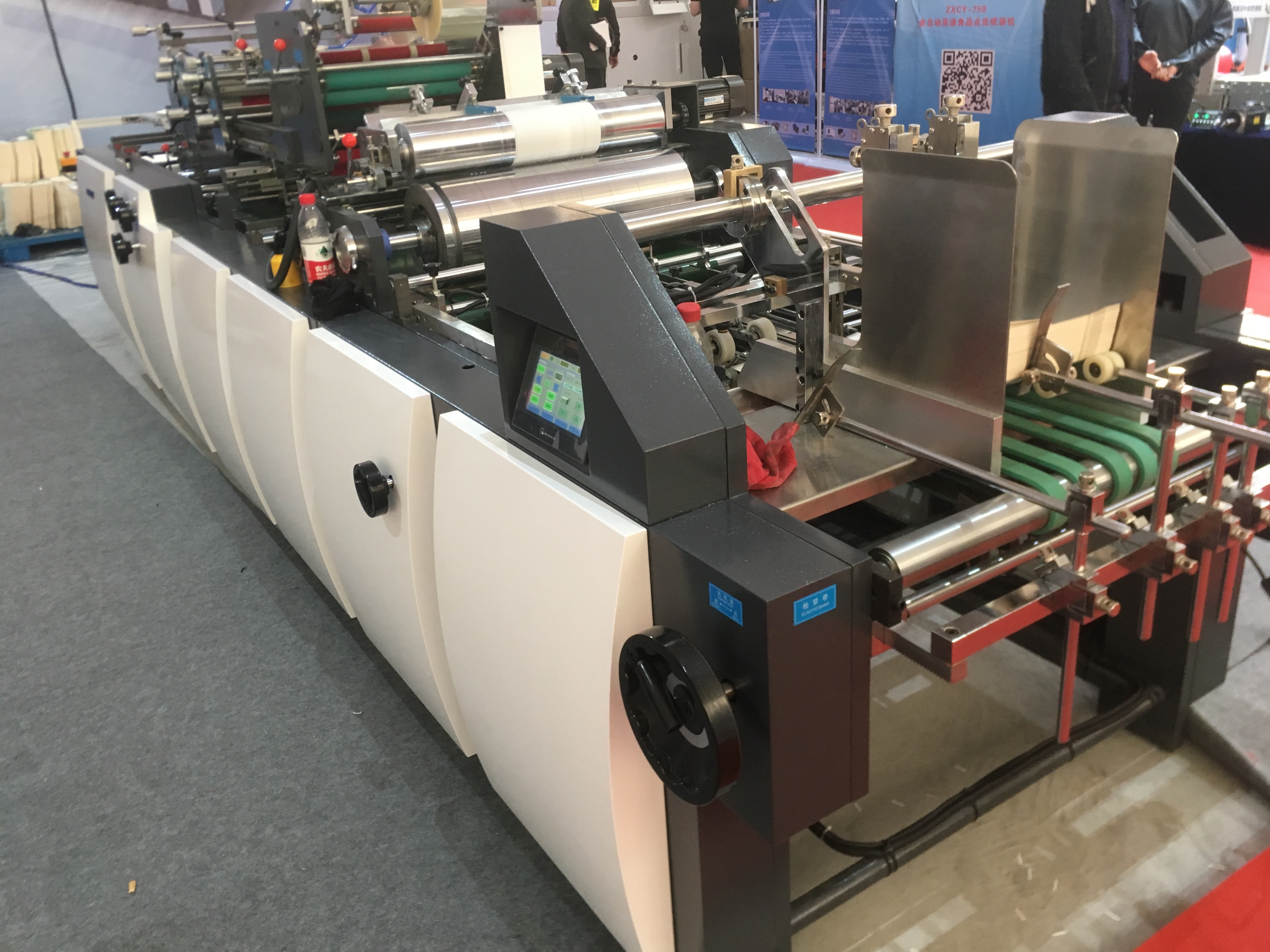

Box Window Patching Machine

Technical Parameters.

Model	TC-650
Max.Paper Size	650*630mm
Min.Paper Size	200*300mm
Max.Window Size	300*260mm
Min.Window Size	80*40mm
Sheet Thickness	0.05-0.25mm
Max.Working Speed	12000s/h
Cardboard	200-1000gsm
Corrugated Paper	≤3mm
Total Power	2.2KW 380V 50HZ
Total Weight	2000KG
Overall Dimensions	450012001600mm

Model	TC-1080 (Single line)	TC-1080 (Double line)
Max.Paper Size	1020*630mm	510*630
Min.Paper Size	140*140mm	140*140
Max.Film Size	410*300mm	200*300
Min.Film Size	80*60mm	80*60
Sheet Thickness	0.05-0.20mm	0.05-0.20
Max.Working Speed	6000s/h	12000s/h
Cardboard	200-500gsm	200-500gsm
Corrugated Paper	≤3mm	≤3mm
Total Power	10KW 380V 50HZ	12Kw 380V 50HZ
Total Weight	4000KG	4300Kg
Overall Dimensions	500019601750mm	500019601750

Koten Machines Container Loading.

140 Countries Clients Who Has Koten Brand Machines Till 2019.
Paper Box Window Patching Machine customers

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
Paper Box Window Patching Machine factory
