Automatic Paper Cutting Line With Loading, Lifter, Jogger, Cutting and Unloading Machine.

Quantity:
  • QZYK-DF Line
  • Koten
  • QZYK-DF Line
  • USD30000-USD60000
  • One set
  • T/T,L/C
  • 50sets/month
  • By strong sea worthy wooden cases.
  • Within 30 days after get the deposit.
  • China
  • 446

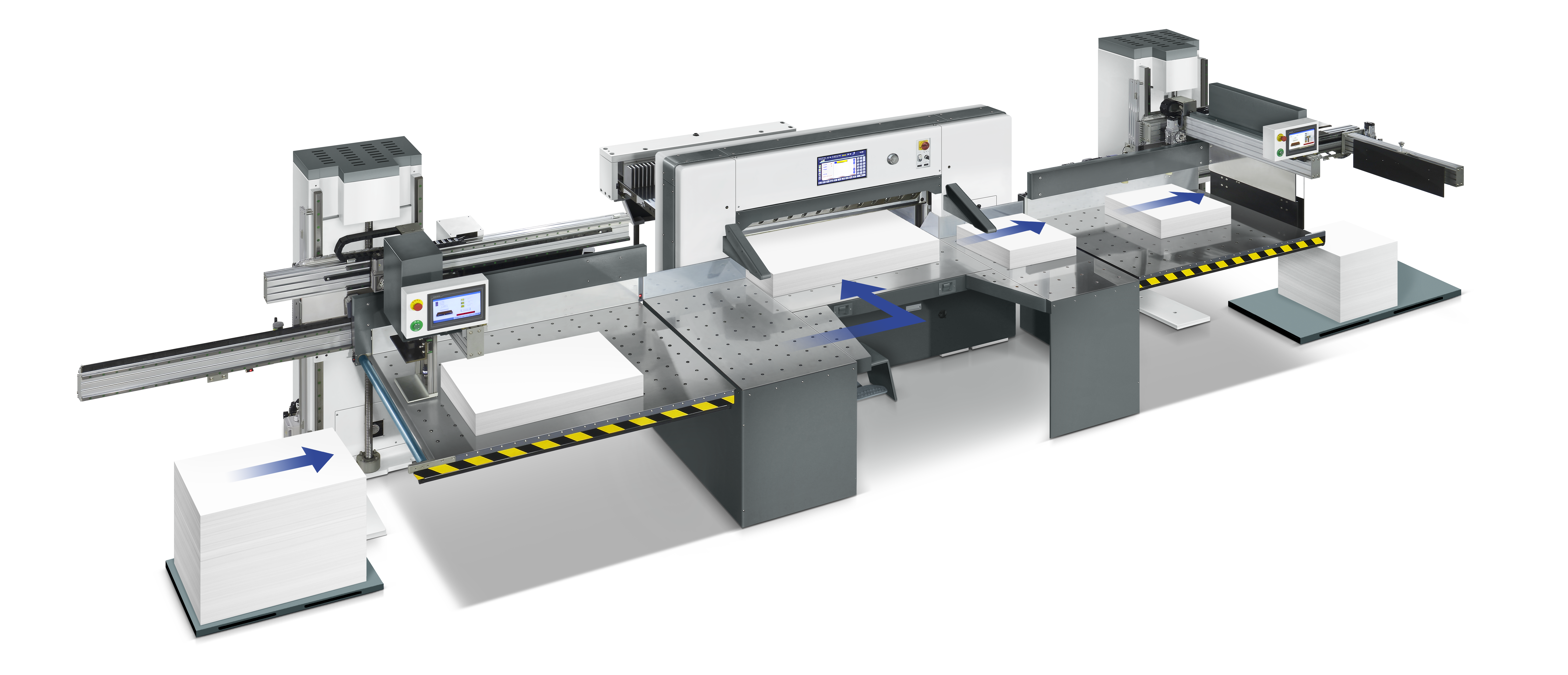

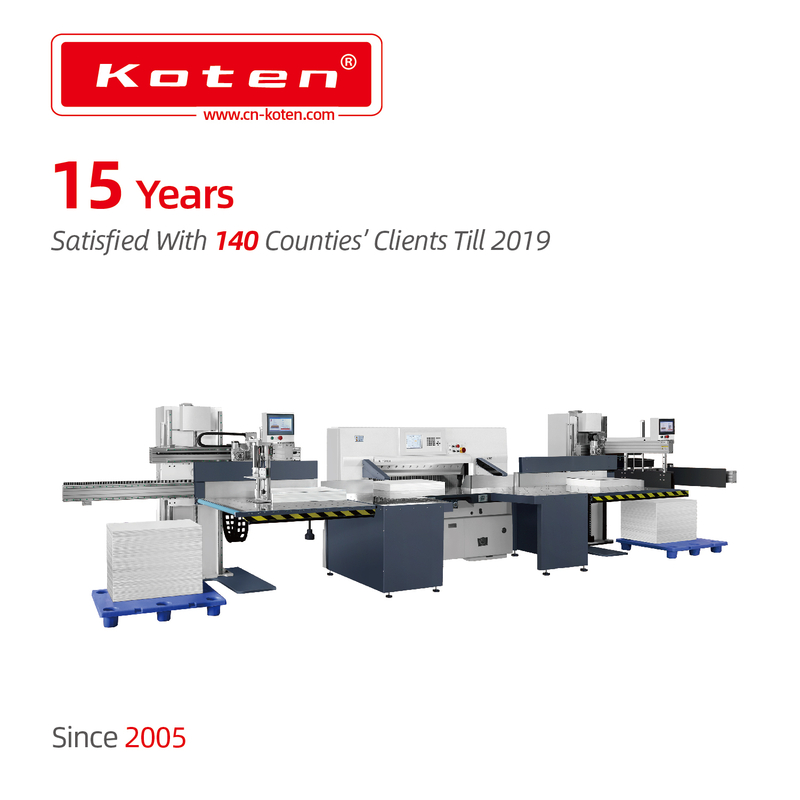

Cutting line2

Introduction.
The cutting system includes Lifter,Jogger,Micro-computerized program control paper cutting machine/guillotine and intelligent automatical paper unloading machine.The machine can automatically Complete the Loading and unloading stack,clean up,transit,Palletizing for various types of paper.With high productivity,low labor intensity.short auxiliary work time,reduce production costs.It can provide the design and manufacture for cutting line with a variety of specifications an different combinations.

Main Specifications.

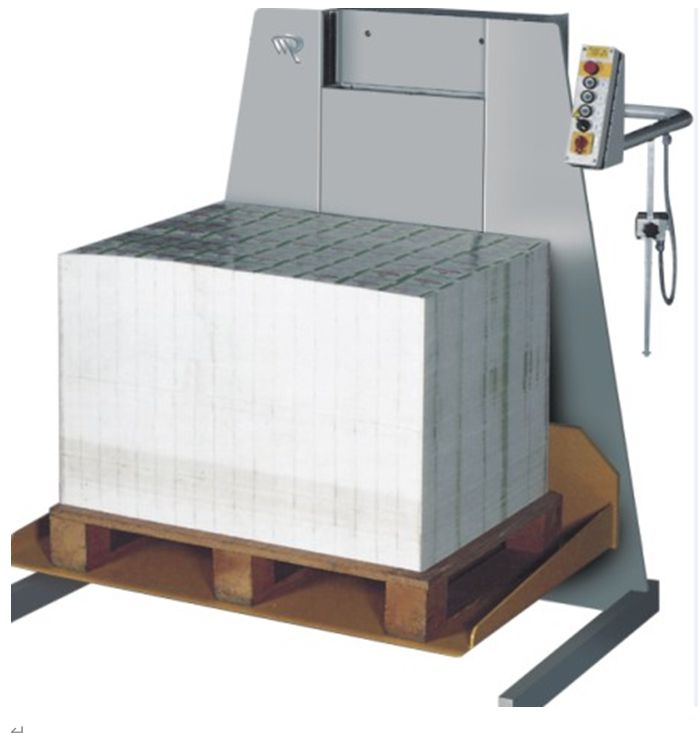

downLoadImg (4)

Model Unit LT-2 LT-3
Max.Pallet Size cm 80x1200 1050x1450
Paper Push Height cm 85 85
Max.Loading Capacity kg 1000 1000
Power Consumable kw 2.25 2.25
Voltage
380V 380V
Space Required cm 144X130 170X155
N.W kg 550 680
Plateform Size cm 84X127 109X152
Height cm 150 150

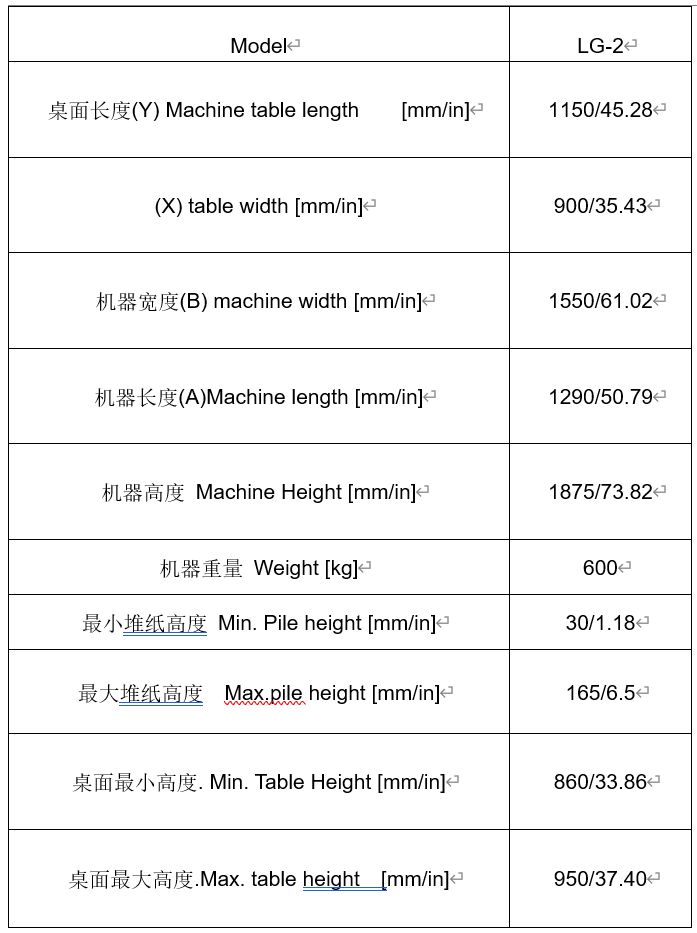

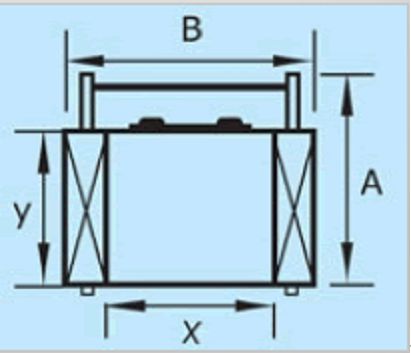

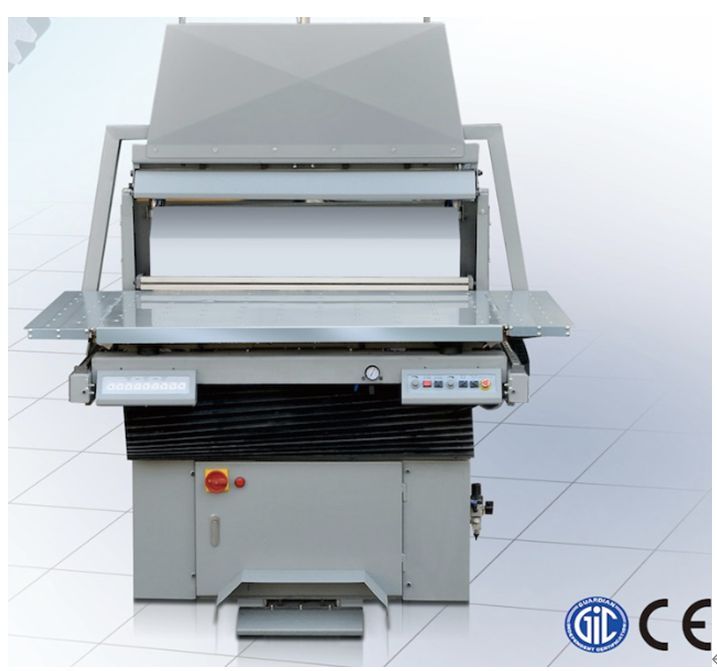

2. For the Jogger

downLoadImg (5)

downLoadImg (6)

downLoadImg (7)

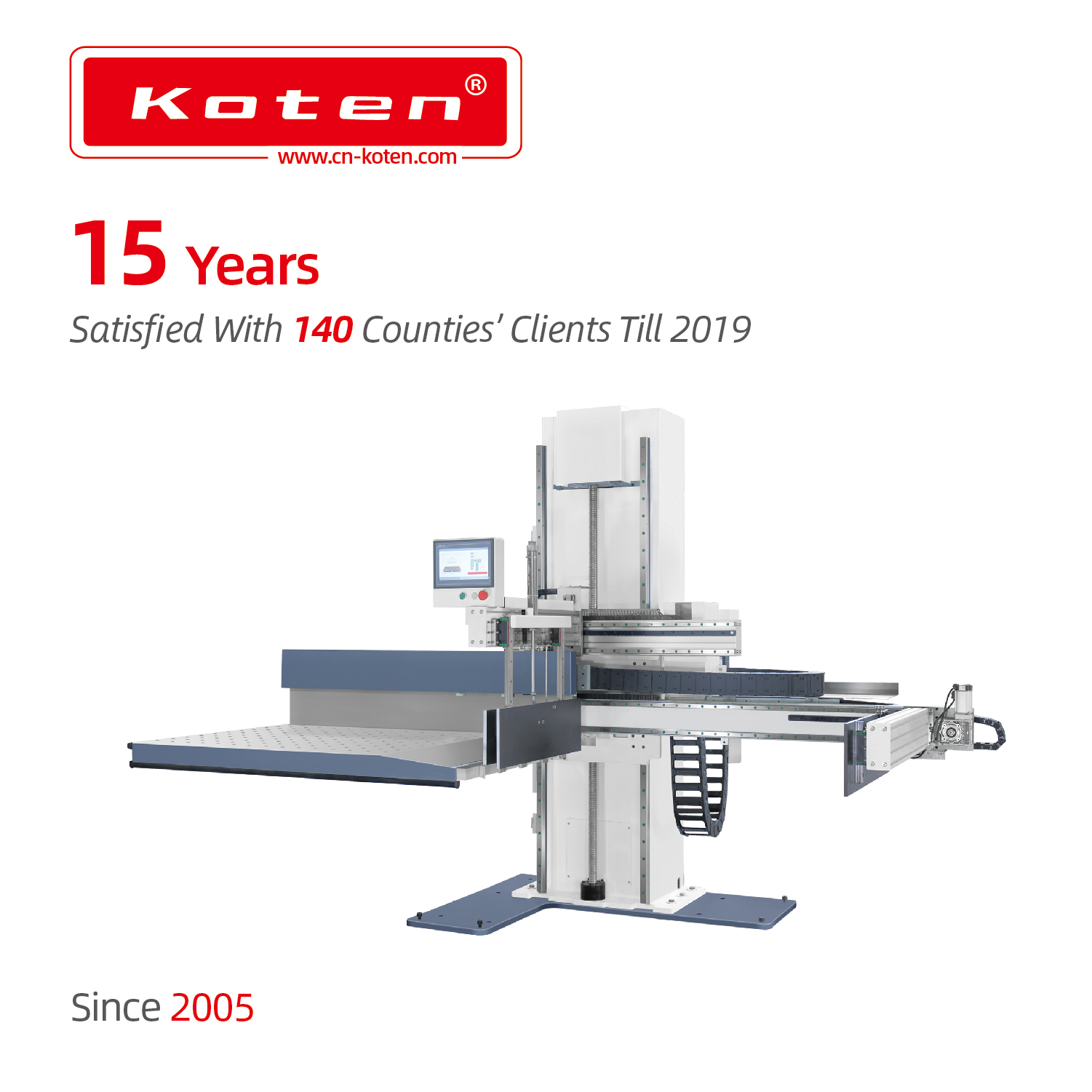

3. For the Paper Loading Unit.

网站图片-WDL-18

Model GW-2 GW-2H (Extra Hight)
Paper Loading Length 3300 3300
Paper Loading Width 1900 1900
Paper Loading Height 2000 2400
Table Length 1600 1600
Table Width 960 960
Paper Feeding Width 950 950
Paper Feeding Length 1350 1350
Packaging Size 3000*1900*2200 3000*1900*2600
N.W 1000 1100
Air Requirement. 5--8 5--8
Power 3P 380-420V 50/60HZ 3P 380-420V 50/60HZ

4. For The Paper Cutting machine.

网站图片-WDL-06


    Model   137DF   920DF   115DF   130DF
  Max. Cutting Width:   1370cm   92cm   115cm   130cm
  Max. Cutting length:   1450cm   110cm   115cm   130cm
  Max.Cutting length:   16.5cm   11.5cm   16.5cm   13cm
  Max.Clamping pressure:   40000N   30000N   40000N   40000N
  Cutting speed   45Time/min   45Time/min   45Time/min   45Time/min
  Main motor power:   4kw   3kw   4kw   4kw
  Air pump motor:   0.75kw   0.55kw   0.75kw   0.75kw
  Sending paper motor:   0.55kw   0.55kw   0.55kw   0.55kw
  Weight:   4500kg   2100kg   3800kg   3800kg
  Overall dimensions:   2950×1400×2000cm   230×120×165cm   275×140×191cm   280×140×191cm
  Width with sideway:   287cm   242cm   265cm   280cm
  /:   236.4cm   172cm   216cm   216cm
  Length:   277cm   218cm   249cm   249cm
  Front table length:   73cn   74.9cn   71.5cn   71.5cn
  Table height:   90cm   90cm   90cm   90cm
  Voltage (three-phase):   V361-399   V361-399   V361-399   V361-399
  Wire size:   2.5mm 2   2.5mm2   2.5mm 2   2.5mm 2


5. For the Unloading Unit.

网站图片-WDL-17

Model DG-2
Machine Length 3300mm
Machine Width 1800mm
Machine Height 2000mm
Table Length 1600mm
Table Width 960mm
Unloading Width 940mm
Unloading Length 1260mm
Packaging size 3000x1900x2200mm
N.W 1100kg
Air Requirement 5-8bar
Power 3P 380V 50HZ
