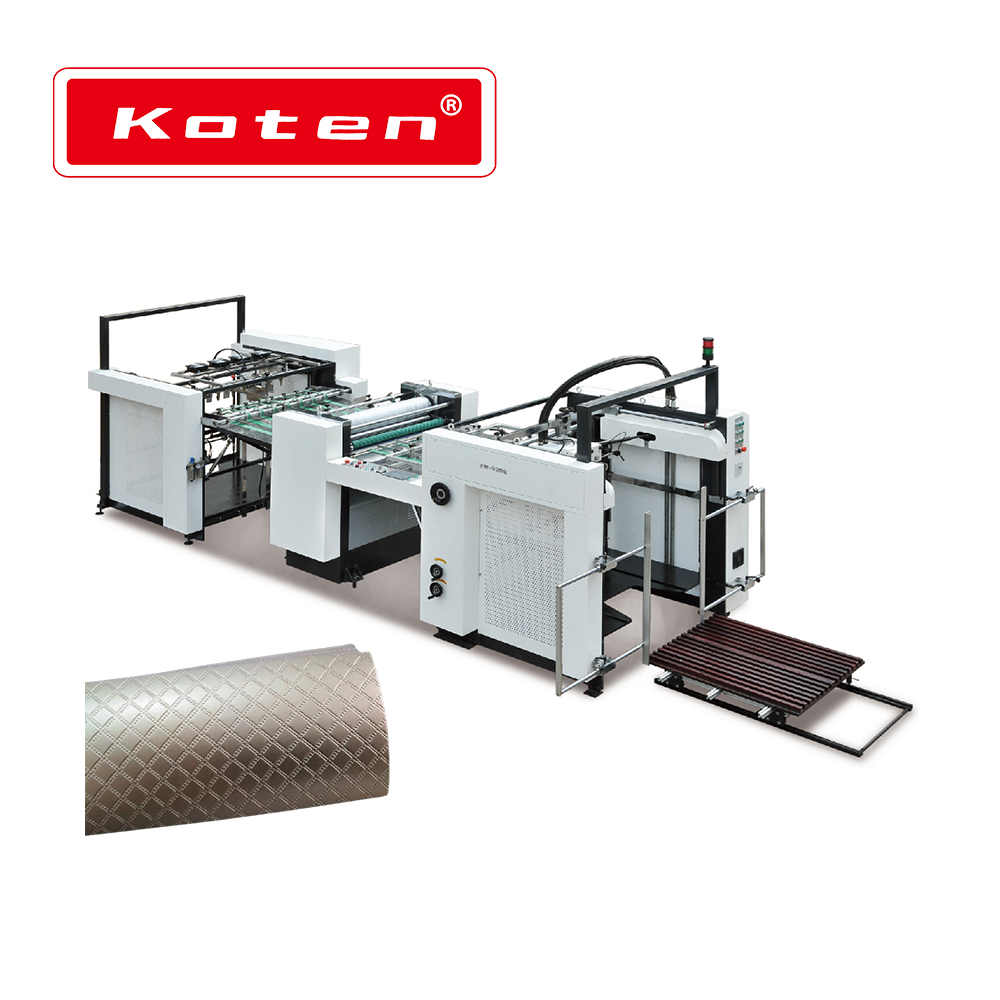

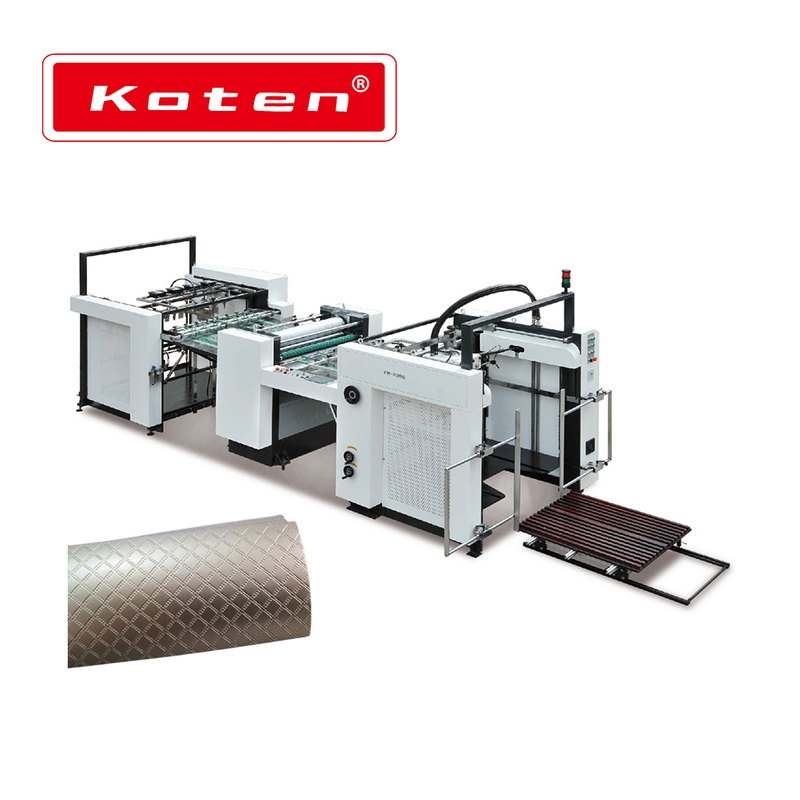

Automatic Paper embossing machine（YW-920E）

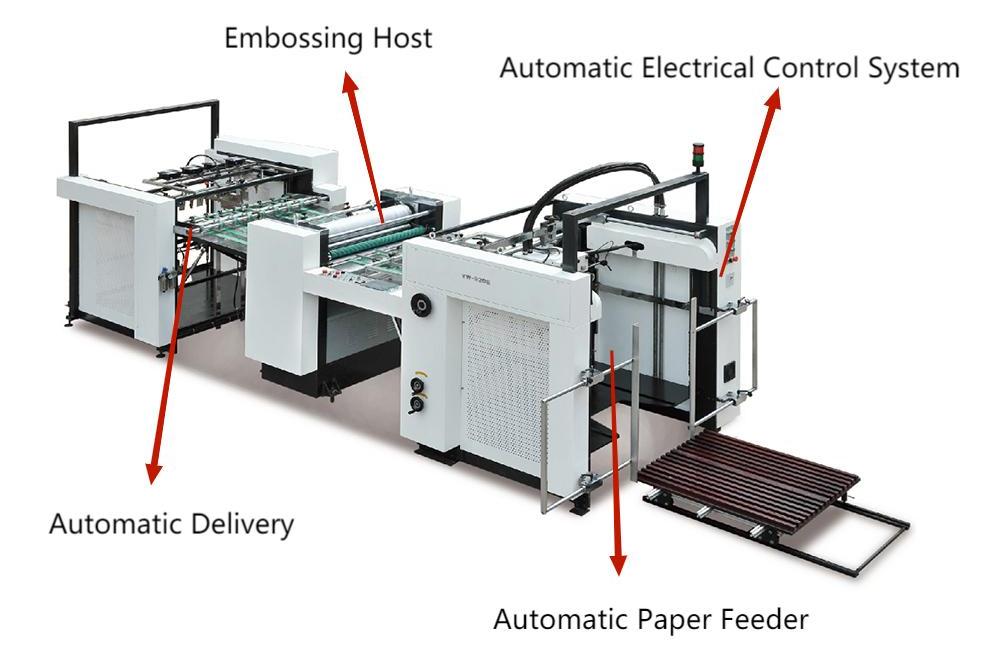

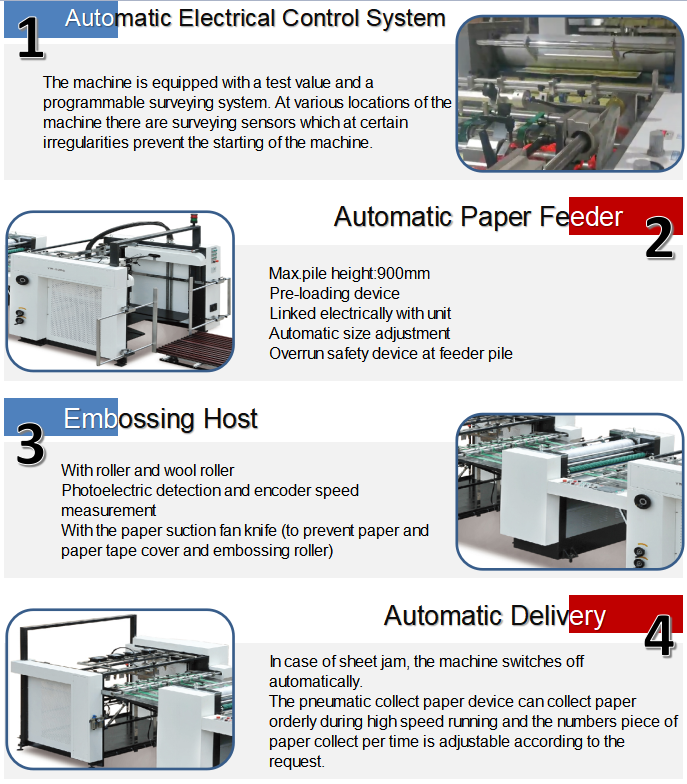

Automatic paper embossing machine W- series has features of automatic feeding, embossing and collecting paper electrical on-line control system,which was developed at the basis of manual feeding and collecting paper Adopt frequency convertor to adjust speed, double-sheet inspection, pneumatic bade and automatic hydraulic system etc.
The average sped can reach 3000-5000 pcs/hour.
It is applied to emboss various batched of sheet paper, such as packaging products, poker, gift cards, golden and silver cards etc.
Mode | YW-920E | YW-1150E | YW-1300E |
Max Embossing Speed | 80m/min | 80m/min | 80m/min |
Max Embossing Width | 889mm | 1100mm | 1240mm |
Paper Range | >160g/2m² | >160g/2m² | >160g/2m² |
Operation pressure | 2-10Mpa | 2-10Mpa | 2-10Mpa |
Total Power | 12KW(380V AC3Φ 50/60HZ) | 14KW(380V AC3Φ 50/60HZ) | 14KW(380V AC3Φ 50/60HZ) |
Vacuum pressure | 60Kpa | 60Kpa | 60Kpa |
Air source Pressure | 0.8-1.0Mpa | 0.8-1.0Mpa | 0.8-1.0Mpa |
Shape Dimen sion s(LWH) | 6200*2000*1880mm | 6200*2200*1880mm | 6200*2300*1880mm |
Net Weight | 4000kgs | 4200kgs | 4400kgs |
