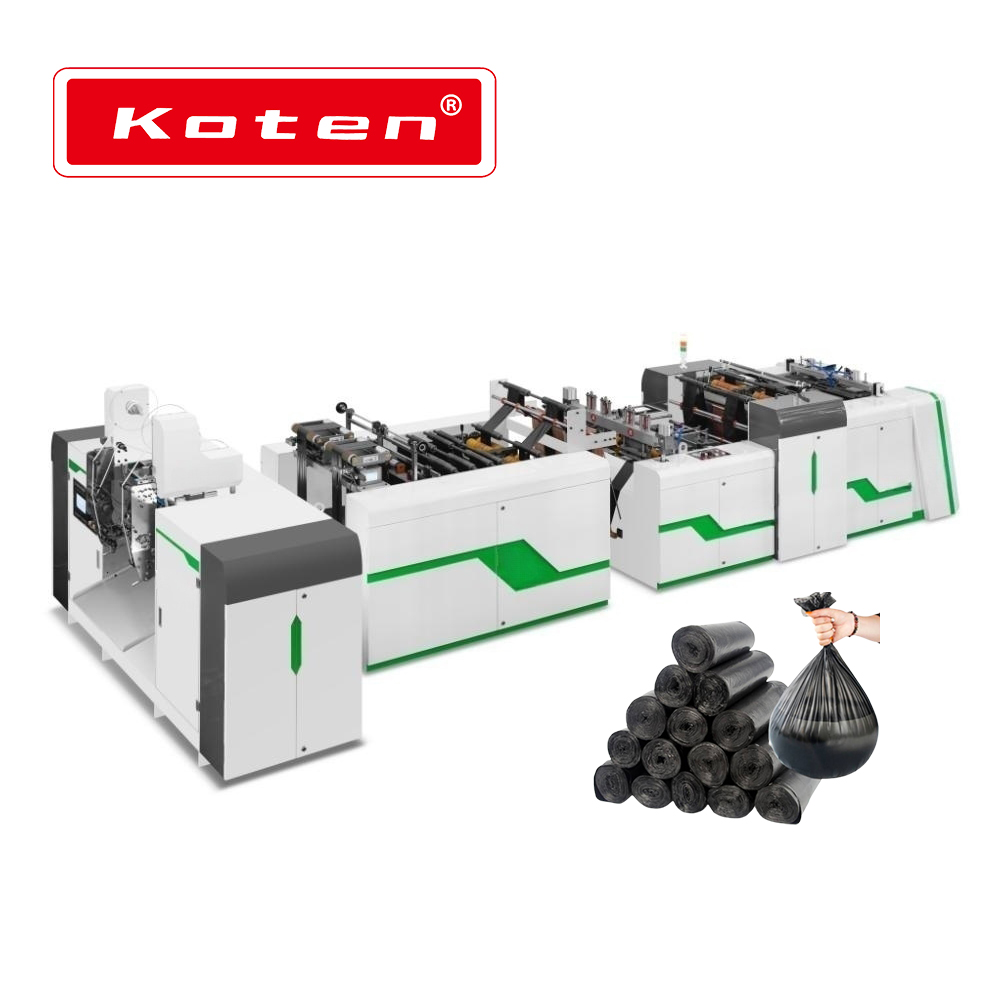

BT-200x2
Koten
BT-200x2
Negotiate
One set
T/T, L/C At Sight
30 sets/month
By strong sea worthy package
Within 30 days after receipt of the deposit.
China
2698
Model: BT-200 *2
Bag making length: 460-650mm
Bag making width: ≤ 150mm *2
Capacity: up to 90 meters per minute
Bag making speed: the thickness is between 0.005-0.012, and the speed is about 150-200 times / min
Total power: 9.6KW
Power supply: 1p 220V 50Hz
Approximate weight of the machine: 1400KG
Main configuration
1) Body structure: 14 thick steel plate, 8# channel steel ,1 Group
2) The main drive motor is a 6-stage three-phase asynchronous motor of 1.5KW ,1 set
3) The main drive is belt drive, 1 set . sprockets 1 set
4) The simulated discharging motor is a 4-stage three-phase asynchronous motor of 0.75KW, 2 sets
5) Main motor frequency converter 1.5KW, 1 set
6) Discharge motor frequency converter 0.75KW, 2 sets
7) The feeding rubber roller is servo motor and servo driver 2.0kw, 2 sets
8) Linear guide sleeve ,2 sets
9) Aging resistant feeding rubber roller and discharging rubber roller 240*2; 2 for each
10) Omron temperature control meters, 2
11) Omron proximity switch , 3
12) Taiwan power switch , 1
13) PLC controller, 1 set
14) auxiliary discharge device, 1 set
15) Electroplated aluminum tube
16) Air reservoir φ200* 400 ; 1set
