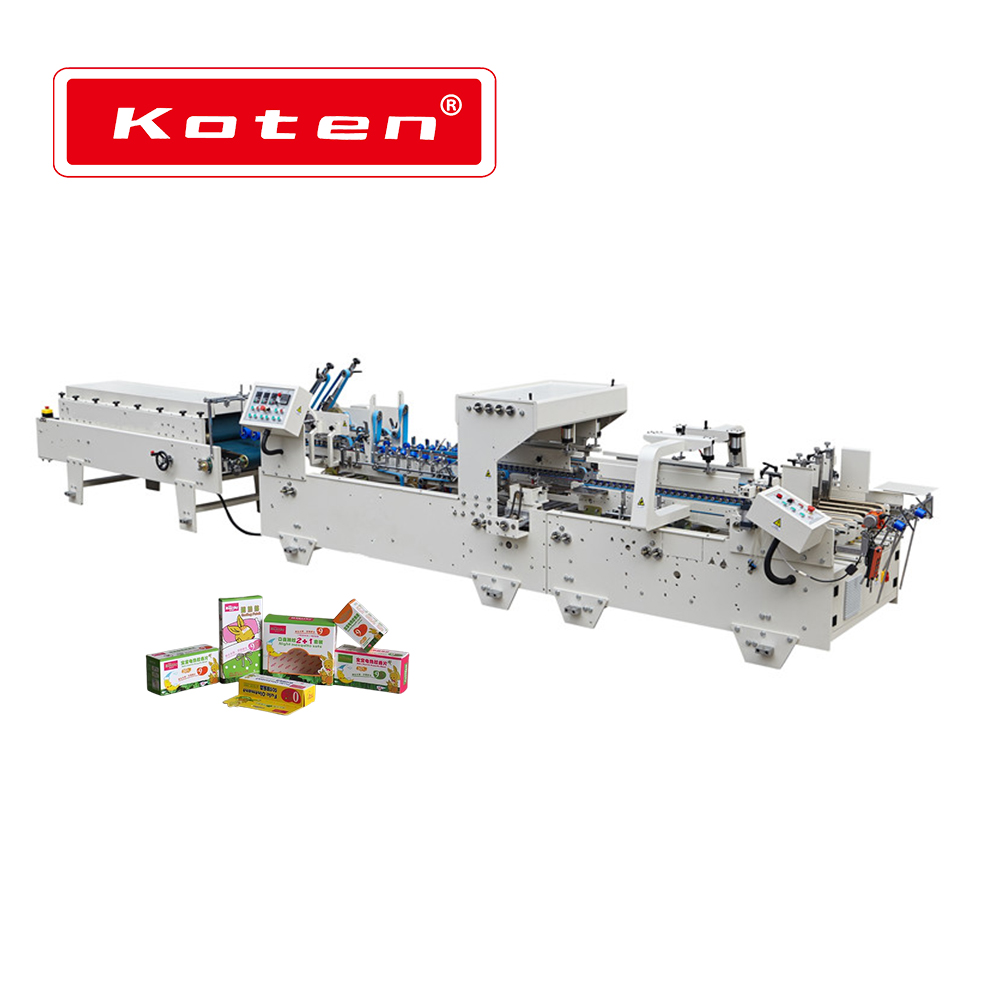

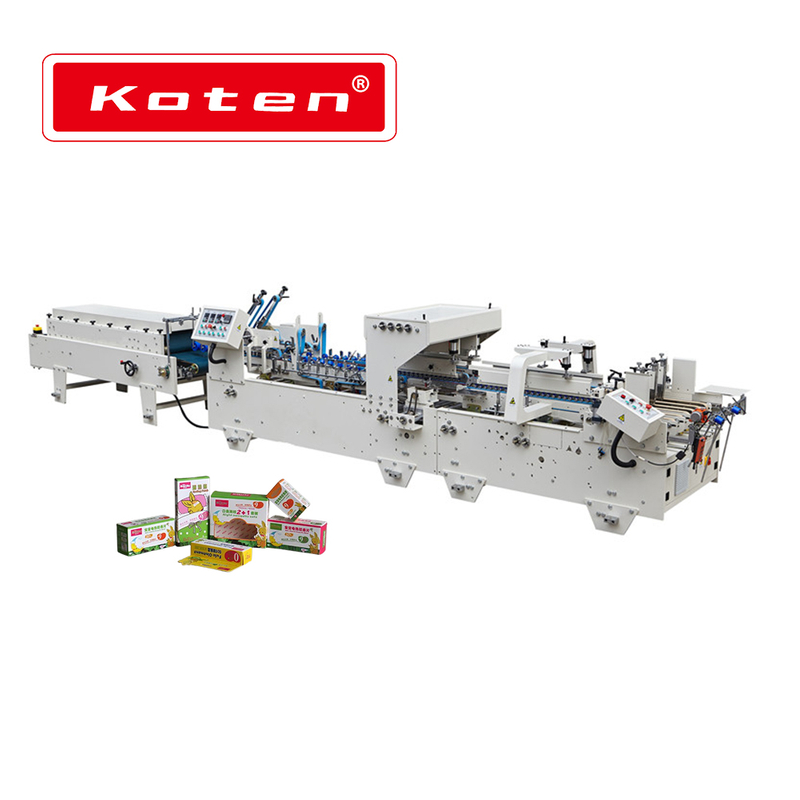

Automatic Pre-fold Folder Gluer Machine（YZHH）
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
| Model | YZHH-800 |
| Paper Material | Cardboard（200-800g）、E-flute/F-flute |
| Max. Liner speed | Max. 220 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° |
| Glue Material | Water-base cold glue |
| Electric power | 5KW 380V 50HZ 3P |
| Weight | 2000KG |
| Over dimension | 8200 x1300x 1400mm |
