AK-J800
KOTEN
AK-J800
Negotiate
1
T/T, L/C at sight
1sets/month
Export-standard and sea-worthy steel case
Within 30 days after get the deposit.
1589
| Quantity: | |
|---|---|

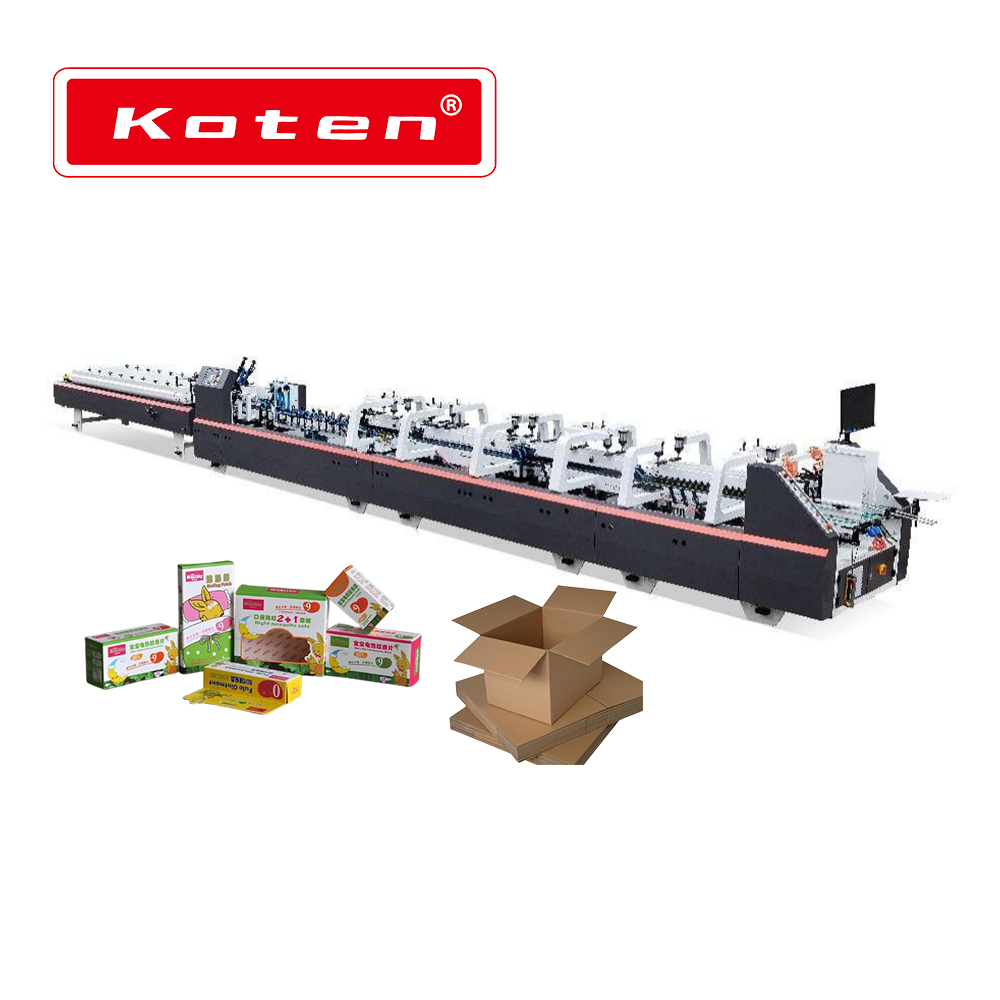

Automatic Pre-fold & Lock Bottom Folder Gluer machine（AK-J800）
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
| Model | AK-J800 |
| Paper Material | Cardboard（200-800g）、E-flute/F-flute |
| Max. Liner speed | Max. 220 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued |
| Glue Material | Water-base cold glue |
| Electric power | 7KW 380V 50HZ 3P |
| Weight | 2700KG |
| Over dimension | 11500 x1300x 1400mm |
Automatic Pre-fold & Lock Bottom Folder Gluer machine（AK-J800）
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
| Model | AK-J800 |
| Paper Material | Cardboard（200-800g）、E-flute/F-flute |
| Max. Liner speed | Max. 220 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued |
| Glue Material | Water-base cold glue |
| Electric power | 7KW 380V 50HZ 3P |
| Weight | 2700KG |
| Over dimension | 11500 x1300x 1400mm |
