YW-Z
KOTEN
YW-Z
Negotiate
1
T/T, L/C at sight
10sets/month
By strong seaworthy packaging
Within 30 days after get the deposit.
6598
| Quantity: | |
|---|---|

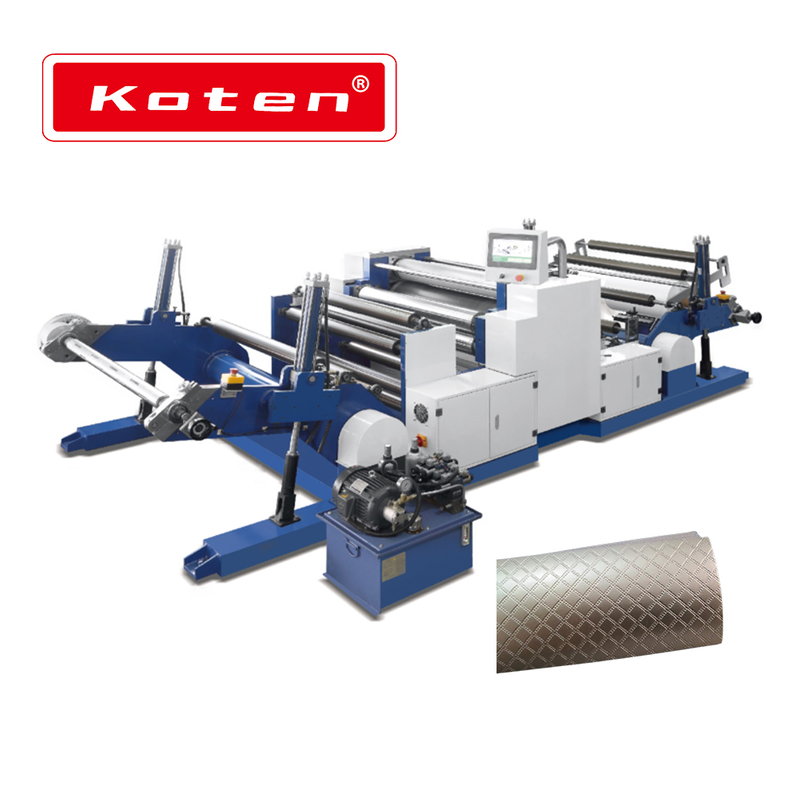

Automatic Roll To Roll Embossing Machine（YW-920A）

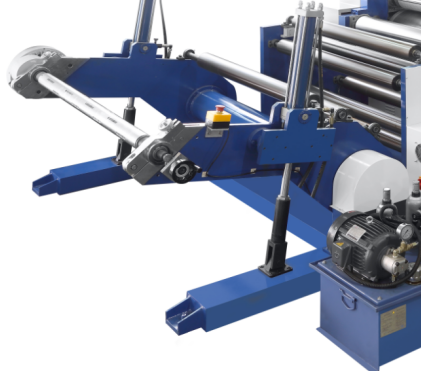

Automatic roll to roll embossing machine YW-AZ series integrate mechanical, electrical, pneumatic and hydraulic system. It is applied for embossing various paper and different plastic products film rolls into kinds of fancy pattern.
This machine adopts function of auto hydraulic lifting, auto control heating and cooling system, frequency converter to adjust speed, auto tension control and auto oil pressure control etc.
Mode | YW-920A-Z | YW-1150A-Z | YW-1300A-Z |
Max Embossing Speed | 5-60m/min | 5-60m/min | 5-60m/min |
Max Embossing Width | 889mm | 1100mm | 1240mm |
Material Available | Paper, Rubber | Paper, Rubber | Paper, Rubber |
Operation pressure | 2-10Mpa | 2-10Mpa | 2-10Mpa |
Heating Temperature | ≤120℃ | ≤120℃ | ≤120℃ |
Total Power | 32KW (380V AC3Φ） | 34KW (380V AC3Φ） | 34KW (380V AC3Φ） |
Hydraulic Pressure | 0.8-1.0Mpa | 0.8-1.0Mpa | 0.8-1.0Mpa |
Overall Dimension(LWH) | 4800*2800*1450mm | 4800*3000*1450mm | 4800*3200*1450mm |
Net Weight | 5200kgs | 6200kgs | 7000kgs |
NO. | Name | Brand | Origin |
1 | PLC | Schneider | Germany |
2 | Electrical appliance | Schneider | Germany |
3 | Monitor sensor | Omron | Japan |
4 | Independent deviation correction mechanism | Leimer | Germany |
Attention：Affected by market supply, some parts will be replaced with other brands of the same grade in actual production | |||
