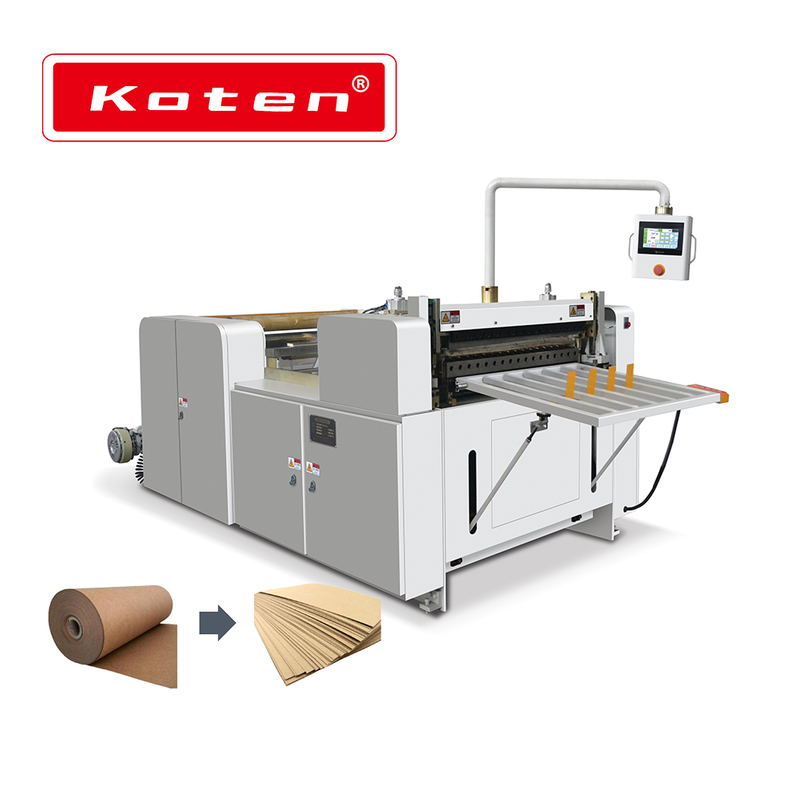

Automatic Roll To Sheet Paper Cross Cutting Machine

Automatic Roll To Sheet Paper Cross Cutting Machine

This machine suitable for a lot of paper, such as hamburg paper,cardboard,adhesive sticker,aluminum foil,PVC,paper&film laminated etc best jumbo roll cutting machine.

Characteristic:

1)Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control etc function.

2)Feeding roll use no auto loading system(150#cylinder), air shaft use 3#(76mm paper tube core)

3)Machine rock use thick steel plate structure. Bottom of cutting knife use heavy casting structure, Guide rollers using static balanced aluminum alloy guide roller.

4)Traction drive fixed position use servo motor system, traction driver roller use steel structure. Feeding traction way is through motor move the chain wheel to drag the rubber roller. The receiving platform is normal automatic finished materials table, control by motor.

5)Our Machine is best jumbo roll cross cutting machine, it have high precision. High speed and receiving sheet paper flat.

Unwinding Unit：

1.Machinery rock use steel plate and casting steel structure.

2.Automatic magnetic tension control system

3.Control way：through PLC tape control way(Panasonic Japan)

4.Tension control range：3-100KG

5.Tension magnetic use 10KG controller(2set, Huaguang, Zhejiang)

6.Unwinding shaft use air shaft type(2pcsφ74×850mmPad shaft)

7.Driver roller use aluminum roller, through static balanced aluminum alloy guide roller.(3pcsφ70×850mm)

8.Base material position can be adjust.

9. loading equipment structure system

10.Unwinding use photocell control edge position control system

Main Engine Unit:

1.Structure type: driver roller drag passive pinch roller

2.Traction base use casting structure(1set)

3.Traction roller use rubble roller(Spec：2pcsφ85×850mm)

4.Compression way control by cylinder

5.Compression cylinder

6.Driver roller use aluminum(Spec：5 pcs φ74×850mm)

7.Driver roller can be up and down adjust

8.Adjust way: manual adjust control by handle wheel

9.Motor use frequency adjust speed1.5kw

10.Float roller up and down tension use pneumatic traction way

11.Cylinder Spec：（1pcs )

12.Float roller use aluminum(Spec：3 pcs φ74×850mm)

13.Whole feeding structure control by sense

14.Machinery rock use 10# high quality steel plate structure.

15.Fixed length control by servo motor

16.3kw Invt motor brand (1pcs)

17.Whole machine project control system use digital project system driving way; main motor drive the roller to fixed position

18.Drive by synchronous belt and synchronous wheel transmission mechanism.

19.Feeding roll use rubble roller structure(bottom roller use steel roller)

Cutting Unit:

1.Cutting way: bottom cutter fixed, Top cutter make cutting

2.Bottom cutter use heavy casting structure

3.Linear guide way (2pcs)

4.Oil box  (2pcs )

5.Lubricating oil can be recycled

6.Bottom,&Top cutter use special import bar balance steel cutter

7.Cutter(Spec thick×Wide×Length：15×80×850mm)(1pcs Shanghai joint venture)

8.Operation way: adjust cutter position by manual

9.Main drive way: Main motor drive to match the eccentric wheel transmission linkage rod reciprocates cutter

10.Main motor use frequency adjust motor(2.2kw) (1pcs Shanghai brand)

11.Frequency use SINEE (2.2kw 1 pcs)

12.Drive use synchronous wheel drive structure

13.Eccentric wheel (2set)

14.Connecting rod (2pcs)

15.the color mark tracking adopts American bonner

Electrical control unit:

1.machine control by PLC project control system( PLC use Japan,touch screen use Taiwan)

2.The machine control system can be divided into computer control, tension control。

3.Computer control: including the main motor control, traction control, feed control, cutting control.

4.Tension control: rewinding tension, speed control of a wide range, regardless of low speed have good performance. And feeding a floating tension control.

5.With electronic meter count; machine alarm stop; automatic fixed length

6.Use brand electric components and France Schneider switch.

Automatic finishing unit：

1.Type：When the paper stacking the high,manual holder.

2.Paper maximum effective stack height 500mm
