DP-A4874
Koten
DP-A4874
Negotiate
1set
T/T,L/C.
30sets/month
By strong seaworthy wooden cases.
Within 60 days after get the deposit.
China
3584
| Quantity: | |
|---|---|
Introduction.
1、Use and scope of use:

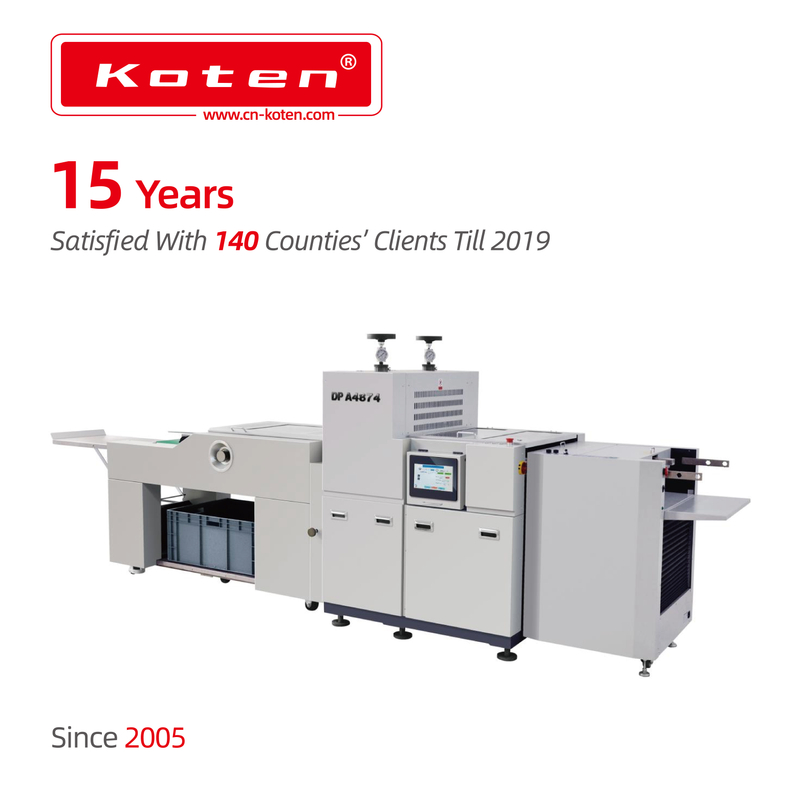

1.1、The integrated DP-A4874 Rotary Die Cutting Machine is a suitable equipment for different production. It is suitable for small batch and repeated production. It use flexible mould and easy to replace.
1.2、Through the flat-type paper feeder and positioning table, the paper enters the die-cutting section, and the positioning accuracy of the paper-feeding direction can reach ±0.1mm.
1.3、Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
1.4、The separator section can be directed to blow away waste, and adjustment does not require tools.
1.5、The separator section and collection section can be pushed away as a whole, providing maximum convenience for changing the mould.
1.6、The wheel of separator section is Electrical control,Timing up and down,the final product will be output to the receiving table regularly.
1.7、Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
1.8、Mainly suitable for stickers, tags, wine labels, playing cards, small boxes and so on. The processing materials are suitable for plain paper, coated paper, cardboard, PE film, and so on.
1.1、
1、The main technical parameters：
2.1 Sheet size (before processing)
Max:480X740mm
Min:200X275mm
2.2 Material Thickness:
Die Cutting:0.2mm–0.5mm
Max creasing:0.4mm
2.3 Final product size:
With separator(Final product:widthxlength)
Max final product size:456mmX720mm
Min final product size:50mmX80mm
Min Discharge width:5mm
2.4 Mould size:
Mould Height:1mm
Max Mould size：480mmX750mm
Min Mould size：160mmX100mm
2.5 X, Y direction die cutting accuracy ± 0.1mm
2.6 Feeder stack height:500mm
2.7 Max Production Speed:6000 cycles per hour
Main Specifications.
1、The main technical parameters：
2.1 Sheet size (before processing)
Max:480X740mm
Min:200X275mm
2.2 Material Thickness:
Die Cutting:0.2mm–0.5mm
Max creasing:0.4mm
2.3 Final product size:
With separator(Final product:widthxlength)
Max final product size:456mmX720mm
Min final product size:50mmX80mm
Min Discharge width:5mm
2.4 Mould size:
Mould Height:1mm
Max Mould size：480mmX750mm
Min Mould size：160mmX100mm
2.5 X, Y direction die cutting accuracy ± 0.1mm
2.6 Feeder stack height:500mm
2.7 Max Production Speed:6000 cycles per hour
Note：
The running speed of the machine is determined by the nature of the cut. When the cut is very large or very small, extremely thin or extra thick, the machine running speed should be reduced.
In order to improve the life of the machine, the machine generally reduces the running speed of the machine during the running-in period. The running speed during the running-in period should be less than 5000 cycles/hour, and the general running-in period is about half a year.
2.8 Main motor power:4.5kw
2.9 Voltage:Single Phase 200V–240V，50Hz/60Hz
2.10 Weight：1700kg
2.11 Machine size（LXWXH）：4620mmX1300mmX1650mm
Machine size(With receiving table)：5320mmX1300mmX1650mm
Configuration:
No. | Configuration | Brand |
| 1. | 10’’ touch screen | AB |
| 2. | Control system | AB |
| 3. | Expansion module | AB |
| 4. | Power module | AB |
| 5. | Communication module | AB |
| 6. | Ending cover | AB |
| 7. | Servo Motor | Panasonnic |
| 8. | Servo driver | AB |
| 9. | Servo cable | AB |
| 10. | Exchange | AB |
| 11. | Communication cable | AB |
| 12. | Encoder | AB |
| 13. | Encoder access module | AB |
| 14. | Transducer | AB |
| 15 | Stepping drive | Kinco |
| 16 | X2 Communication plug | Panasonnic |
| 17. | Stepping motor | Kinco |
