HSJ-900
Koten
HSJ-900
Negotiate
One set
T/T
50sets/month
By strong seaworthy wooden cases.
Within 30 days after get the deposit.
China
329
| Quantity: | |
|---|---|

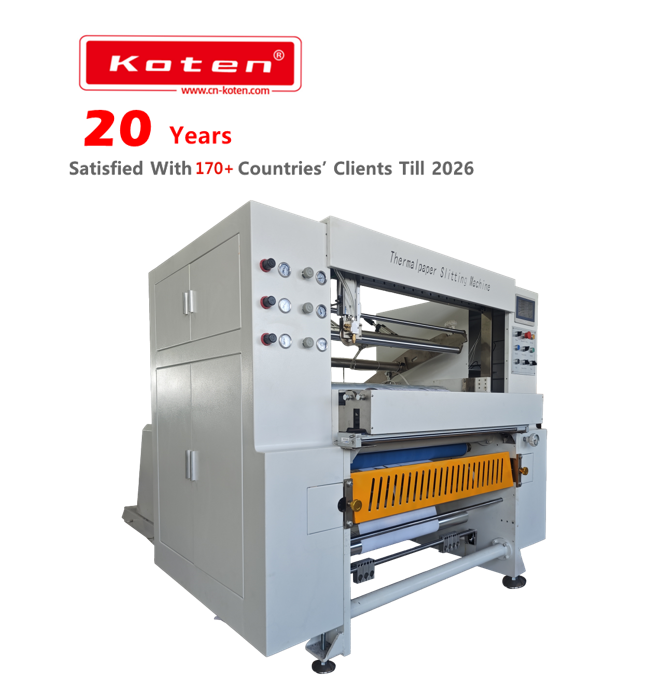

This machine mainly used for slitting and rewinding kinds of paper, like thermal paper, fax paper, bank receipt, computer bill, etc. It also can be used in the medical industry, film, self-adhesive paper, etc. Slitting. It is a ideal equipment for slitting the small paper core material both in China and all over the world.
Model | HSJ-900 |
1.Material: | Thermal paper, cash register, ATM roll etc |
2.The maximum width of the jumbo reel: | 900mm |
3.The width of the small slitted reel by the machine: | 20-900mm |
4.Working speed | : 194m/min |
5.Slitting speed: | 5-194m/min |
6.The maximum unwinding diameter: | ￠1200mm |
7.The unwinding shaft: | locked ￠3" air expanding shaft |
8.Unwinding tension force | 100N |
9.The maximum rewinding diameter: | ￠200mm |
10.The main motor: | 2.2 KW frequence inverter control |
11.The fan motor: | 1.75 kw single phase motor |
12.The transimmission way: | chain, gear and synchronization strap |
13.Standard slitting width: | 35mm 57 65 75 80 ,,,,900 |
14.Machine material: steel board and cast iron | 1200mm |
15.Working voltage/Total power: | three phase four line, 380V, 50HZ/5.5 kw |
17.Weight/ 18.Overall dimension( L×W×H ) | about 1680 kgs/2.3M×2.05M×1.75M |
