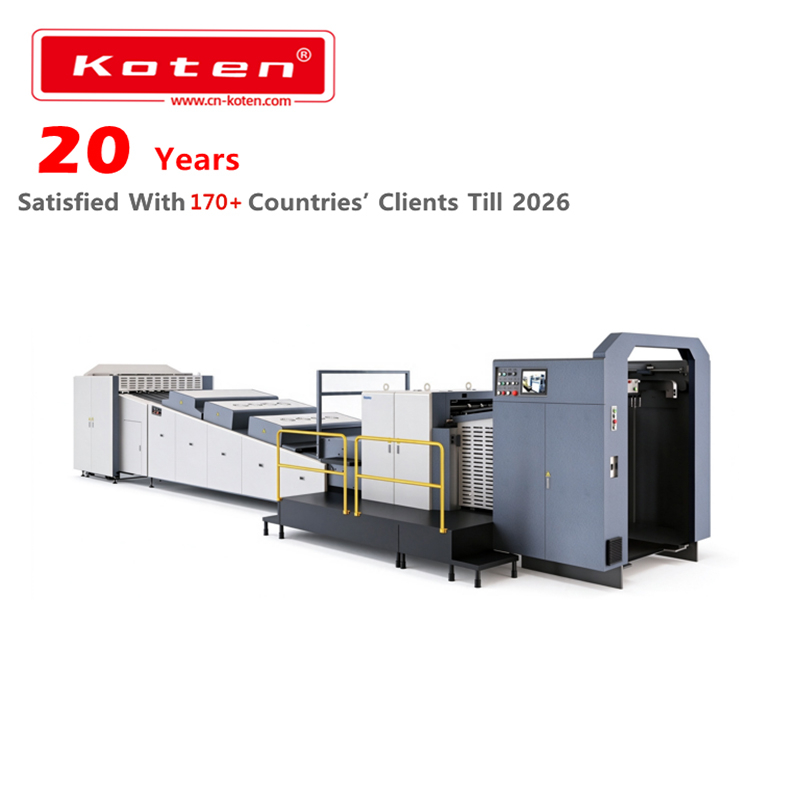

Automatic Spot UV Coating Machine For Gift Box Packaging

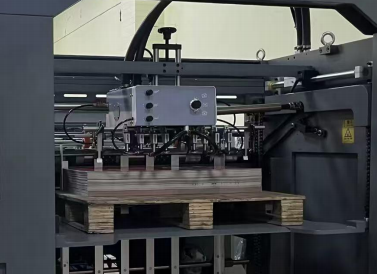

1.Automatic paper feeder

· High reliability paper feed adopts linear slide rail composition, fast feeding speed, no matter the size of the paper can be closely delivered.

· Sensitive electromechanical double - tension side detector, when more than3 one sheet of paper through, feeding automatically stops.

· Maximum load height 1150mm.

2.Paper delivery embossing department

· Paper delivery structure, maximum mechanical speed of 8000 pieces/hour.

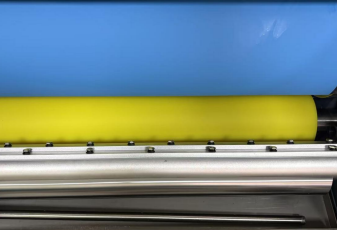

· Embossing and coating roller adopts precision grinding treatment, by dynamic balance adjustment, accurate size.

· Blanket cylinder has quickly clamp blanket and plate substrate, plate change, plate fast and convenient.

3.Multi-functional coater

· Equipped with ceramic anilox roller with circulating varnish supply and enclosed chamber (doctor blade) system.

· Configuration 2: Dual-roller differential-speed multi-functional coating heads. It delivers flat, uniform, precise and glossy oil film

4.UV. drying and curing equipment

· UV. The drying equipment adopts three UV lights , which can quickly cure and dry UV varnish.

· Adopt teflon conveying belt to make paper drying, the whole distance bottom7 air suction, low working noise, high speed, high efficient curing effect and simple maintenance.

· Equipped with full /half light conversion, UV leakage protection device to ensure the safety of operating staff.

Model	Ty-106w
Max. Sheet Size	1060mm×760 mm
Min. Sheet Size	400mm×350 mm
Max. Coating Area	1050mm×750 mm
Paper Weight	80~600 gsm
Production Speed	Up to 8500 sheets/hour
Total Power	44Kw (oil type) / 40Kw (water type)
Machine Dimension (L×W×H)	10600 × 3000 × 2200 mm
Machine Weight	7600 Kg
