KTD-350
KOTEN
KTD-350
Negotiable
1
T/T, L/C at sight.
10sets/month
By strong sea worthy package
after received 30% deposit.
China
1556
| Machine size: | |
|---|---|
| Machine speed: | |
| Quantity: | |

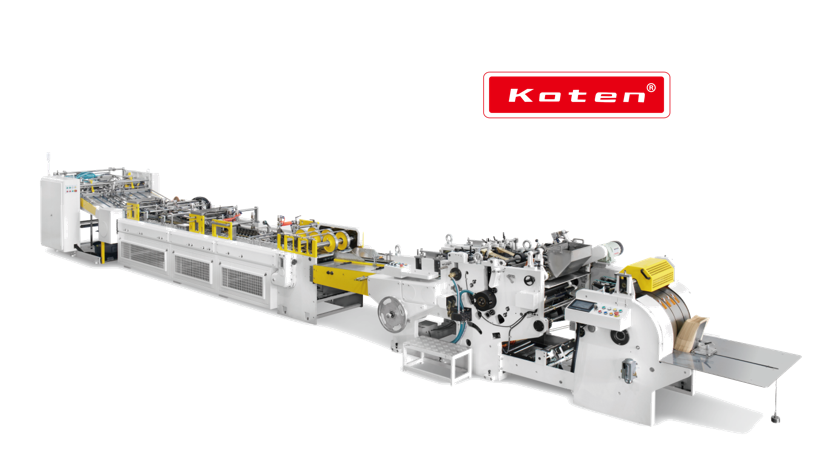

This machine forming the paper bag in one process from sheet paper, edge folding, tube forming, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Model | KL-220 | KL-350 | KL-450 |
Paper bag width | 110-240mm（4.33-9.44inch） | 180-350mm（7.08-13.78inch） | 220-450mm（8.66-17.72inch） |
Bottom width | 50-130mm（1.97-5.11inch） | 70-160mm（2.76-6.29inch） | 80-170mm（3.15-6.69inch） |
Paper sheet width | 380-700mm（14.96-27.56inch） | 530-1040mm（23.62-40.94inch） | 620-1240mm（24.40-48.81inch） |
Paper sheet length | 240-440mm（9.44-17.32inch） | 290-600mm（11.41-20.86inch） | 320-600mm（12.25-23.62 inch） |
Paper weight | a.Kraft paper:80-200g/m² b.Art paper+PP laminating:120-230g/m² | a.Kraft paper:100-200g/m² b.Art paper+PP laminating:120-230g/m² c.White cardboard+PP laminating:150-250g/m² d.Grey Paperboard+PP laminating:150-300g/m² The bag width should be 60mm larger than the bag bottom size | |
Recommend that paper thickness above 200gsm die cutting before operation | |||
Working speed | 60-100 Pcs/min | 40-75 Pcs/min | 40-75 Pcs/min |
Glue type | Water glue(tube gluingwith additional hotmelt glue system) | ||
Total power | 10KW 380V 50HZ | 11KW 380V 50HZ | 12KW 380V 50HZ |
Machine weight | 10T | 11T | 12T |
Machine dimension | 11000*1500*1600mm | 14000*1800*1700mm | 15000*2100*1700mm |
NOTE:Working speed varies depending on paper quality,paper thickness,printing effect with or without laminate PP film,glue quality,paper size climate and work shop environment. | |||
