Automatic Stripping Machine With Mechanical Hand Take Off Device.

Automatic Stripping Machine With Mechanical Hand Take Off Device.

Name: Automatic Stripping Machine With Mechanical Hand Take Off Device.
Brand: Koten
Rating: 5.0 (79 reviews)

Model:
ZDCB
Brand:
Koten
Model:
ZDCB-680/920/1080
FOB Price:
Negotiate
Min.Order Quantity:
One set
Payment Terms:
TT,LC
Supply Ability:
50Sets/month
Packaging:
By Strong Seaworthy Wooden Cases.
Delivery Time:
One month
Place Of Origin:
Wenzhou
Views:
351

Quantity:
Availability:





Inquire Add to Basket

Details

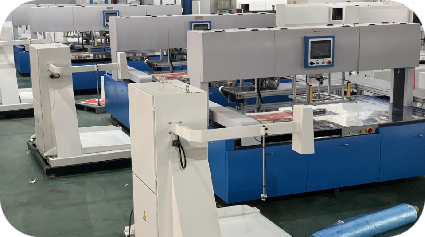

企业微信截图_16968437828216

Process.

Automatic Stripping Machine

Product Description

Automatic stripping machine is the professional equipment for automatic stripping the finished sheet (like tag, trademark) from paperboard and plastic sheet, etc after die cutting.

Main Specifications.

Model	680	920	1080
Max. Sheet Size	680*450mm	920*650mm	1080*780mm
Max. Sheet Size	450*320	600*440	650*450
Max. Pile Height	110mm	110mm	110mm
Min.Pile Height	40mm	40mm	40mm
Bench Height	850mm	850mm	850mm
Max. Stripping Size	220*220mm	310*280mm	420*280mm
Min. Stripping Size	40*40mm	100*40mm	100*40mm
Stripping Speed	25times/min	25times/min	25times/min
Max. Pressure	70bar	70bar	90bar
Voltage/Frequency	380V/50,60HZ	380V/50,60HZ	380V/50,60HZ
Air compression	4-7	4-7	4-7
Air comsuption	2L/min	2L/min	2L/min
Max. comsuption power	2kw	2kw	2kw
Insurance electric current	10A	10A	10A
Machine Weight	190012001900MM	245016001900MM	290019001900MM
Machine Dimensions	1100kg	1600kg	1900kg

Main Features

1. It replaces manual labor, and improves product quality and enterprise benefit.

2. It adopts servo motor, Taiwan double guide rail and ball screw which makes accuracy less than 0.02mm.

3. The latest hydraulic system with inserted motor and oil temperature cooling fan (power 3.75kw). So it has constant and big working pressure.

4. The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy.

Koten Machines Container Loading.

140 Countries Clients Who Has Koten Brand Machines Till 2019.
Automatic Stripping Machine clients

FAQ.

1. Why choose us to cooperate?

Factory prices, flexible payment terms and professional quality inspection team which has the guarantee for machines, in time after sales service, and more than 15 years experience for exporting. Reputation and quality is what we are considering all the time.

2. Guarantee.

There is 12 month guarantee of each Koten brand Machines since customer got the machine. Within one year, the damaged spare parts can be changed for free, and we provide lifetime technology support on line.

3. Delivery Time.

Within 7-30 days after get the deposit. Depends on different machines.

4. What is your package?

What the package we use is strong seaworthy wooden cases. Each machine will be protected by anti-rusted oil before put into the case and there are desiccants will be packed into the machine together.

5. Do you have Installation and Training service if we bought the machines from your company?

The training service will be done by our agency dealer in some countries. If customers request us to dispatch our engineer to their country for installation and training, customers should take all necessary cost, like return flight tickets, hotel, food and salary USD100/day. If customer dispatch their engineer to our factory for training, it is free.

6. Have you sold any machines to our country?

We have to say that there are 140 countries' customers who have the "KOTEN" brand machines till 2019. Pls check with the sales manager to get more information if you need the machines' feedback.

7. What is your payment terms?

T/T. If the amount less than USD30,000.00, 30% paid in advance as a deposit, 70% balance paid before shipment.

L/C. If the sales amount above USD30,000.00, 30% paid by T/T as a deposit, 70% balance paid by irrevocable L/C at sight.

By Cash, by western union, credit cards are acceptable.

Special country like Bangladesh or Algeria can be available for 100% by irrevocable L/C at sight.

8. What your company can offer?

Exercise Books Making Solutions.
Soft Cover Books Making Solutions.
Hard Cover Books Making Solutions.
Spiral Books Making Solutions.
Postpress and Paper Converting Solutions.
Paper Box Making Solutions.
Rigid Box Making Solutions.

Paper Bag Making Solutions.

Exhibitions and Customers'Meeting.

Factory Production.
Automatic Stripping Machine factory
