QS-100B
Koten
USD20000
One set
T/T,L/C
30sets/month

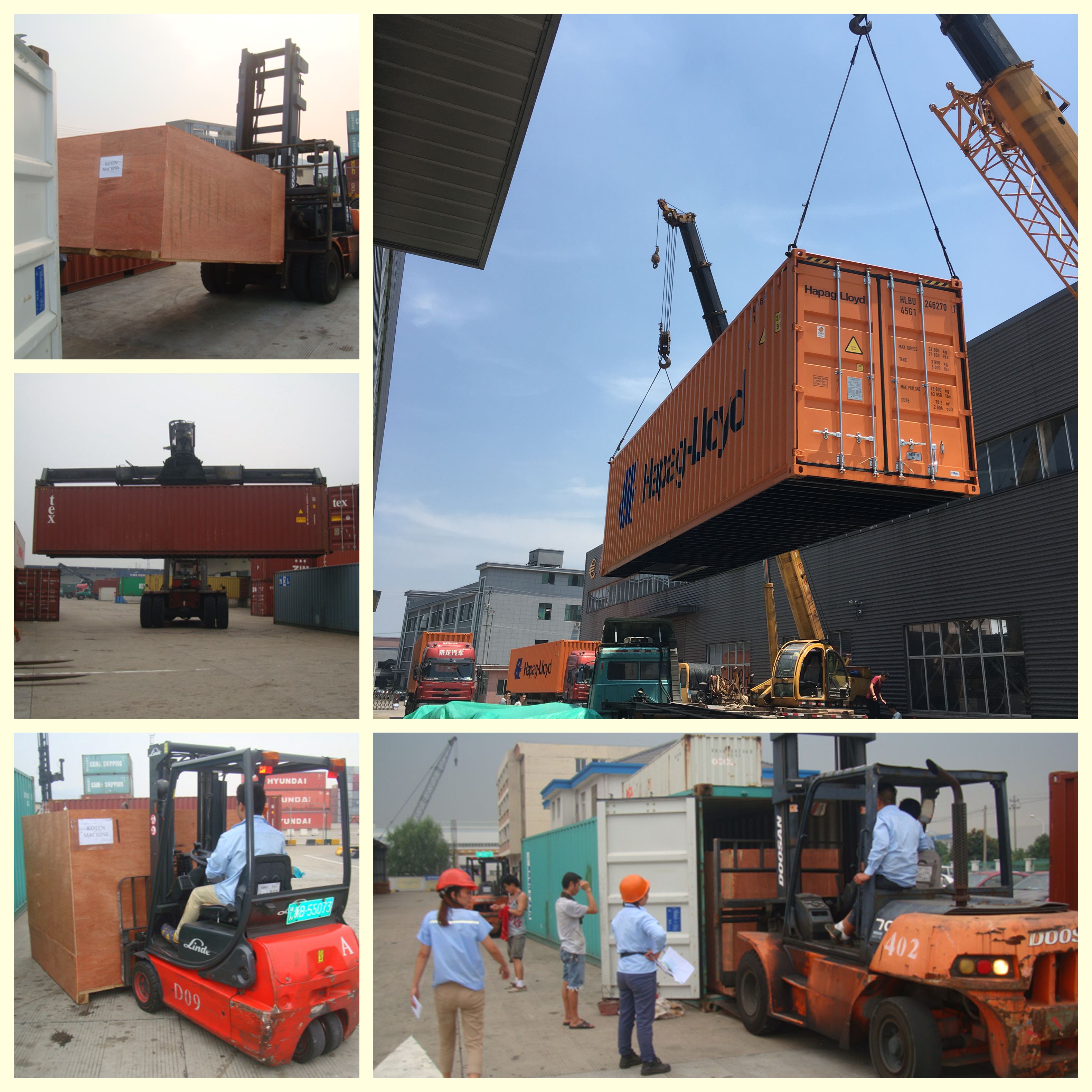

By strong wooden cases
Within 40 days after get the deposit.
China.
551
| Quantity: | |
|---|---|
Stepping onto the production floor, the immediate physical presence of this industrial-grade trimming equipment commands attention. Built with a heavy-duty cast iron frame, it operates with a rhythmic, precise mechanical motion that transforms raw printed stacks into perfectly finished publications. The crisp scent of freshly cut paper fills the air as the heavy blades effortlessly slice through thick volumes. Designed for continuous, high-volume operations, this equipment perfectly adapts to the final three-side trimming requirements of softcover books, hardcovers, glossy magazines, and standard exercise books. It eliminates the bottlenecks of manual handling, offering a streamlined approach to commercial bindery tasks.
This comprehensive trimming system consists of a solid frame, transmission mechanism, book presser, cam, side cutter, front trimmer, book carrier, vertical and horizontal book arranging device, book-out shelf, and advanced electric control. The operator only needs to place the book pile before the carrier; from there, the machine automatically finishes all actions reliably. A specialized manipulator governs the book arranging device, ensuring every publication exits in perfect order. Driven by variable frequency control for the master motor and an accurate counting device for the book-out shelf, all production metrics display clearly on the screen, drastically improving large-scale output efficiency.
Run your fingers along the edge of a finished magazine, and you will feel the exceptional smoothness achieved by the patented leaning cutter device. This unique mechanism is specifically engineered to avoid paper tearing, ensuring the final quality of the book meets rigorous commercial publishing standards. Whether handling glossy coated paper or standard offset stock, the cuts remain exceptionally clean, precise, and free of jagged fibers.
The main transmission relies on a premium roller bearing structure submerged in bath lubrication. This well-tight, non-leaking seal guarantees that the internal mechanics remain protected from dust and friction. As a result, the equipment maintains unshakeable stability even during extended, high-intensity shifts, minimizing vibration and ensuring the longevity of the entire trimming line.
Safety remains a paramount concern in any bindery environment. This machine is fully closed in to prevent wastepaper fragments from escaping into the workspace, keeping the floor clean and reducing fire hazards. A dedicated foot switch is equipped to control the magnetic clutch (brake) alone, making manual interventions significantly more convenient and safer for the operator.
Minimizing downtime is crucial for profitability. The fast-positioning cutter apparatus is utilized for both the front and side cutters, drastically reducing the time required for blade replacement. Additionally, an automatic oil feeder is equipped to lubricate the machine timely and rationally (except for a few specific guide rail surfaces), lowering daily manual maintenance efforts.
International Standards: The technical functions of the Exercise books/notebooks/magazine/reading books Three knife trimmer come up to advanced international standards.
Versatile Applications: Perfectly adapted for softcovers, hardcovers, and exercise notebooks of varying thicknesses.
Reduced Labor Dependency: Automated feeding and stacking minimize the need for constant human supervision.

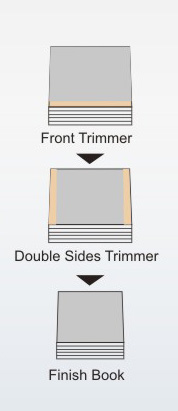

Understanding the operational flow highlights the true efficiency of this trimming solution. The sequence begins with the manual loading of untrimmed blocks onto the feeding station. The mechanical arms then take over, aligning the spine and edges with absolute precision. The heavy book presser secures the stack, eliminating any chance of shifting. First, the front knife descends with a powerful slice, followed immediately by the simultaneous action of the two side knives. The offcuts drop into the enclosed waste chute, while the perfectly trimmed books are gently pushed onto the delivery belt, neatly stacked and ready for final packaging.
The following table outlines the exact specifications for the QS-100B, QS-100C, and QS-1020 models. These parameters reflect the true physical capabilities of the machinery, ensuring you can precisely match the right model to your specific production demands, from maximum cutting sizes to operational speeds and power requirements.
| Model | QS-100B | QS-100C | QS-1020 |
| Max. Cutting Size | 380x300mm | 420x300mm | 1020x300mm |
| Min. Cutting Size | 80x80mm | 80x80mm | 360x130mm |
| Max. Height | 100mm | 100mm | 15mm |
| Speed | 17-25times/min | 20-28times/min | 60times/min |
| Power | 3.5kw | 4kw | 5.5kw |
| Dimension | 1.94x2.17x1.6m | 2.3x2.05x1,7m | 4.3x2x1.7m |
| Net Weight | 1950kgs | 3000kgs | 5500kgs |

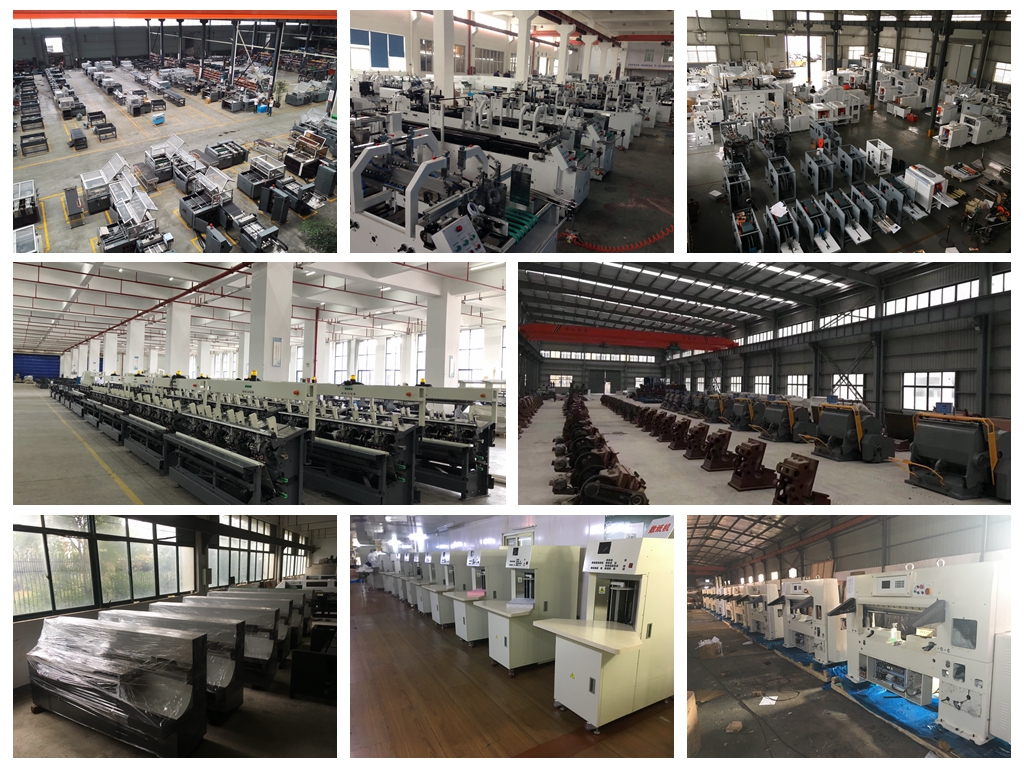

Behind every reliable bindery machine is a foundation of strict quality control and advanced manufacturing capabilities. Walking through the assembly floor, you can hear the distinct hum of CNC machining centers crafting each component to exact tolerances. The metallic sheen of the treated steel parts reflects a commitment to durability. Every unit undergoes rigorous testing before dispatch, ensuring that the variable frequency drives, hydraulic systems, and safety sensors perform flawlessly under simulated heavy-duty conditions. This dedication to craftsmanship guarantees that the equipment arriving at your facility is ready to deliver immediate production value and long-term reliability.
The machine trims three edges of books in one process, helping improve efficiency and achieve consistent finished dimensions.
The stable positioning system helps reduce cutting deviation and maintain uniform product appearance.
Automation reduces manual handling requirements and supports continuous book finishing production.
The machine can be applied to different bound printed products, providing flexibility for various production needs.
Selecting suitable finishing equipment helps printing companies improve production efficiency and product quality. The automatic three knife book trimmer provides a reliable solution for professional book production.
The automatic trimming process reduces processing time and improves production capacity.
Stable three-side cutting helps maintain uniform results across different production batches.
Automation minimizes repetitive manual operations and improves workflow efficiency.
Suitable for books, magazines, notebooks, and other printed products requiring professional trimming.
A three knife book trimmer is used to cut the top, bottom, and front edges of finished books after binding, creating clean and uniform book dimensions.
A three knife trimmer improves efficiency, cutting accuracy, and production consistency compared with manual trimming methods, especially for large-volume book production.
The machine can process various bound products, including notebooks, magazines, exercise books, reading books, catalogs, and other printed materials.
By trimming three edges evenly, the machine improves the appearance, size consistency, and finishing quality of completed books.
Yes. It is designed for professional printing and publishing environments requiring efficient post-press finishing equipment.
A book trimmer is designed specifically for trimming bound books and publications, while a paper cutter is mainly used for cutting loose sheets of paper.
